5W260 (8916-0) - Generac 750 Watt Portable Generator Replacement Parts For Model 5W260 Parts Diagram

750 Watt Portable Generator

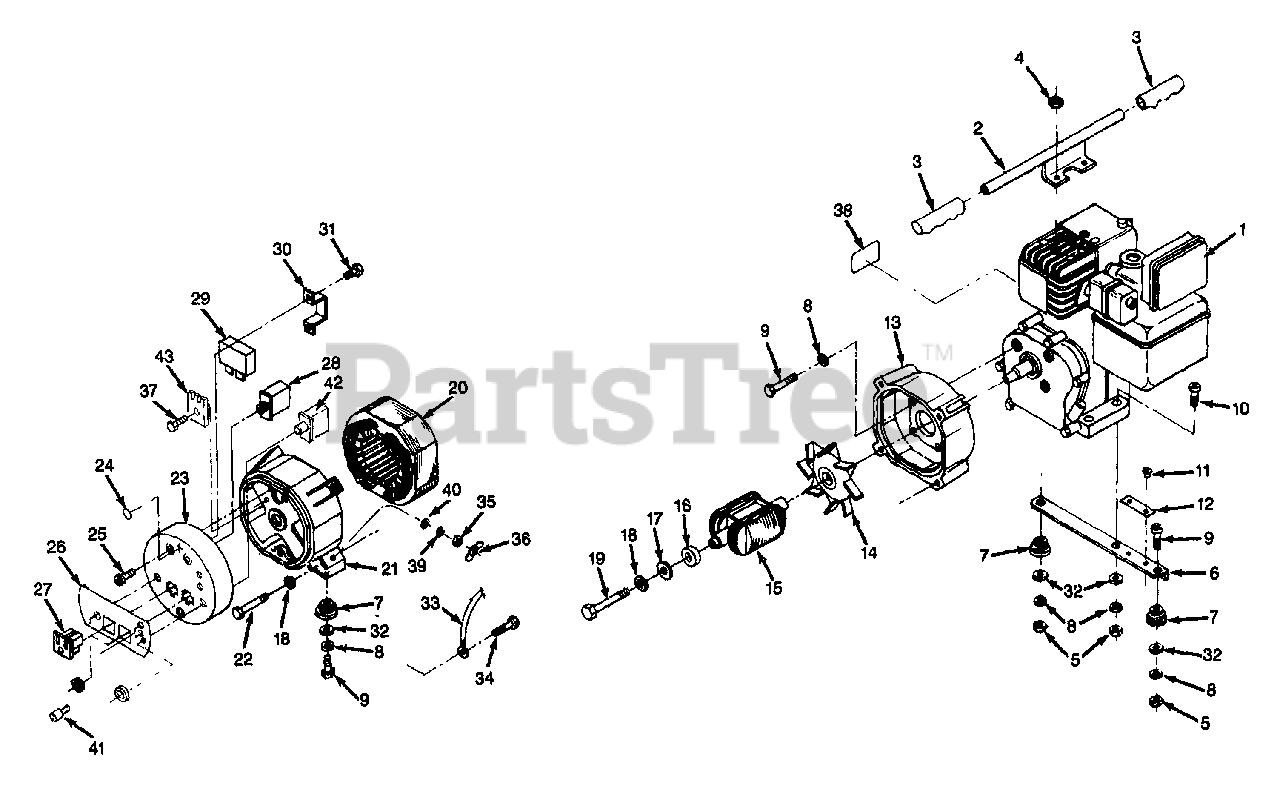

Replacement Parts For Model 5W260 Parts Diagram

  • Title

1

Engine, Kawasaki Model FA-76

$

$

Not available

2

Briggs & Stratton 66899

Carrying handle

$

$

Currently unavailable

3

Briggs & Stratton 66826

Handle grip

$

$

Currently unavailable

4

Briggs & Stratton 49813

Hex nut, M6-1.00 lg.
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66834

Flanged lock nut, M8-1.25 lg.

$

$

Currently unavailable

6

Briggs & Stratton 67400

Engine support

$

$

Currently unavailable

7

Briggs & Stratton 67401

Vibration mount

$

$

Currently unavailable

8

Briggs & Stratton 22129

Lockwasher, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 66889

Hex head machine screw, M8-1.25 x 20mm

$

$

Currently unavailable

10

Briggs & Stratton 39414

Hex head machine screw, M8-1.25 x 35mm
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66829

Rivet (aluminum), 3mm

$

$

Currently unavailable

12

Briggs & Stratton 67402

Data plate

$

$

Currently unavailable

13

Briggs & Stratton 65775

Adapter housing
(Superseded to 65775GS)

$84.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 67403

Cooling fan

$

$

Not available

15

Briggs & Stratton 67404

Rotor winding assembly

$

$

Currently unavailable

16

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 65793

Flatwasher (special), M6

$

$

Currently unavailable

18

Briggs & Stratton 22097

Lockwasher, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65792A

Rotor bolt, M6-1.00 x 140mm

$

$

Currently unavailable

20

Briggs & Stratton 67406

Stator assembly

$

$

Currently unavailable

21

Briggs & Stratton 66373

Rear bearing carrier

$

$

Currently unavailable

22

Briggs & Stratton 66449B

Stator bolt, M6-1.00 x 75mm

$

$

Currently unavailable

23

Briggs & Stratton 70736

Control panel cup

$

$

Currently unavailable

24

Briggs & Stratton 66864

Decal, U.S.D.A. (Forestry)

$

$

Not available

25

Briggs & Stratton 67408

Phillips machine screw, M6-1.00 x 55mm

$

$

Currently unavailable

26

Briggs & Stratton 70737

Control panel decal

$

$

Currently unavailable

27

Briggs & Stratton 66818

Receptacle, 120 Volts AC
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66888

Circuit breaker, 6.3 AC amperes

$

$

Not available

29

Briggs & Stratton 66800

Excitation capacitor

$

$

Currently unavailable

30

Briggs & Stratton 67113

Capacitor bracket

$

$

Currently unavailable

31

Briggs & Stratton 67114

Screw M4-0.70 x 8mm

$

$

Currently unavailable

32

Briggs & Stratton 49810

Flatwasher, M8
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 672305

Ground wire (green)

$

$

Currently unavailable

34

Briggs & Stratton 49815

Hex head machine screw, M5-0.80 x 16 mm
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 51716

Hex nut, M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67435

Wing nut, M5-0.8

$

$

Currently unavailable

37

Briggs & Stratton 66849

Taptite screw, M5-0.8 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 67483A

Data decal

$

$

Currently unavailable

39

Briggs & Stratton 51713

Flatwasher, M5
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 67444

Serrated washer, M5

$

$

Currently unavailable

41

Briggs & Stratton 70772

Positive binding post (red).

$

$

Currently unavailable

41

Briggs & Stratton 70773

Negative binding post (blk)

$

$

Currently unavailable

42

Briggs & Stratton 66820

Circuit breaker, 10 amp

$

$

Not available

43

Briggs & Stratton 65795

Battery charger rectifier
(Superseded to 65795GS)

$

$

Not available
