159cc Engine

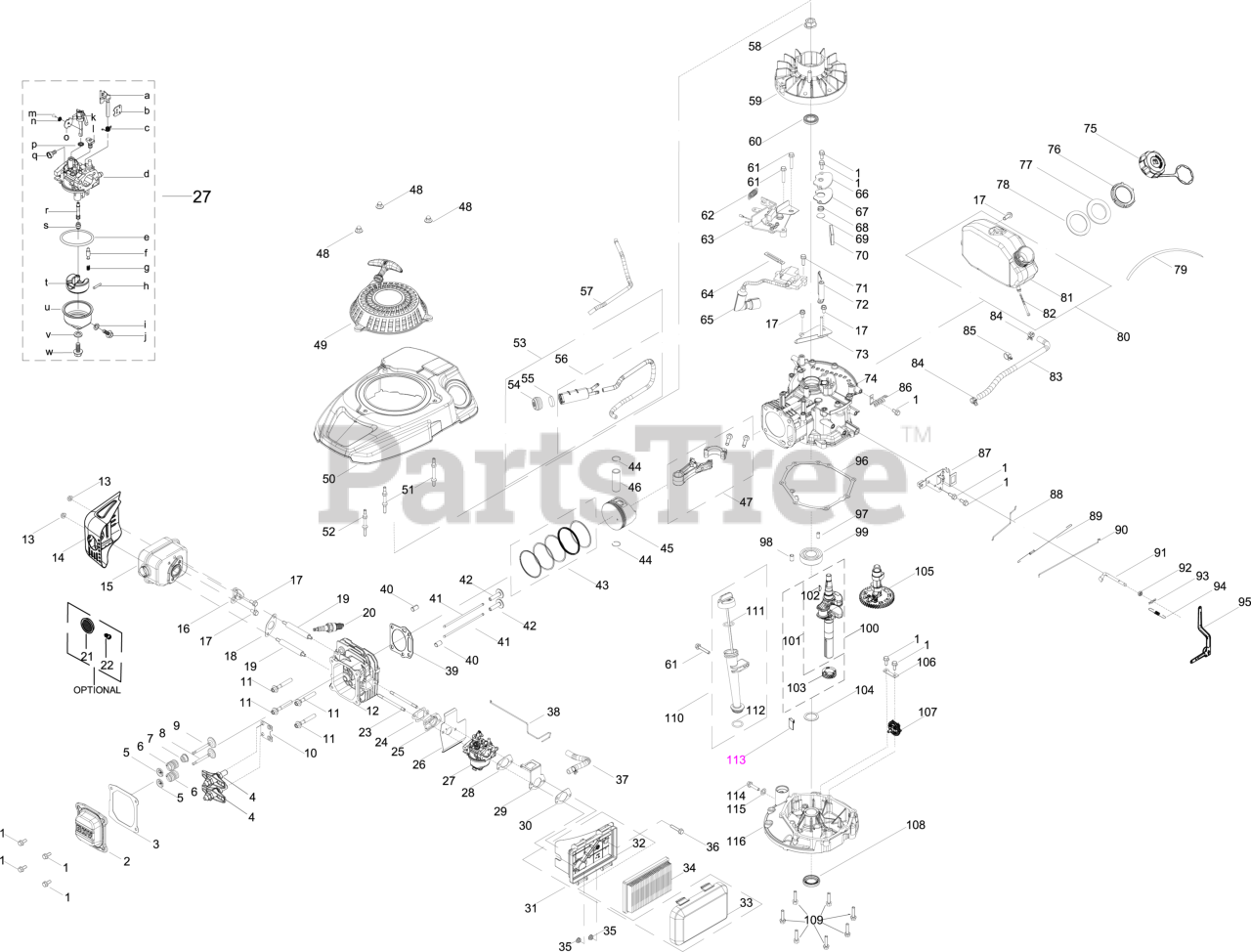

5X65VUC General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.99

$

In Stock, Qty 5

0

2

Cub Cadet 951-14609A

VALVE COVER

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P18586A

VALVE COVER GASKET

$4.99

$

In Stock, Qty 5

0

4

Cub Cadet 951-11606A

ROCKER ARM

$35.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 908-04094A

VALVE RETURN SPRING

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 751P12004A

VALVE SPRING

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet 921-04237A

INTAKE VALVE SEAL

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-14641A

EXHAUST VALVE

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-14640A

INTAKE VALVE

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-11687

PUSH ROD GUIDE
(Superseded to 951-11687A)

$7.49

$

In Stock, only 1 left!

0

11

Cub Cadet 910-06185

BOLT-M8 x 54

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-14639

CYLINDER HEAD

$131.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 18

0

14

Cub Cadet 951-15072

MUFFLER SHIELD

$27.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-14429

MUFFLER ASSEMBLY
(Superseded to 951-14429A)

$67.99

$

In Stock, Qty 5

0

16

Cub Cadet 951-14428

THERMOSTAT
(Superseded to 951-14428A)

$43.99

$

In Stock, Qty 9

0

17

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.99

$

In Stock, only 3 left!

0

18

Cub Cadet 951-14427A

MUFFLER GASKET

$7.99

$

In Stock, Qty 11

0

19

Cub Cadet 710-05094

STUD M6-1 x 95

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 951-14437A

SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

$7.49

$

In Stock, Qty 6

0

20

Cub Cadet 490-250-C014

Cub Cadet SPARK PLUG-F5RTC

Note: Retail Packaged Part

$8.99

$

In Stock, Qty 14

0

20

Cub Cadet 490-250-M014

Genuine Factory Parts SPARK PLUG (14437)
(Superseded to 490-250-Y014)

Note: Retail Packaged Part

$8.99

$

In Stock, only 4 left!

0

21

Cub Cadet 951-10351A

SPARK ARRESTOR

$59.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-04983

SCREW M3.5 x 9.5

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-14425

CARBURETOR STUD-M6 x 87

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 751P18606

CARBURETOR INSULATOR GASKET

$

$

Not available

25

Cub Cadet 951-11738

CARBURETOR INSULATOR
(Superseded to 951-11738A)

$5.99

$

In Stock, Qty 8

0

26

Cub Cadet 951-14424

CARBURETOR GASKET

$11.99

$

In Stock, only 2 left!

0

27

Cub Cadet 651-08640

CARBURETOR
(Superseded to 651P08640)

$35.99

$

In Stock, only 2 left!

0

28

Cub Cadet 721P05942A

AIR FILTER BRACKET GASKET

$6.49

$

In Stock, only 3 left!

0

29

Cub Cadet 951-14420A

CHOKE TEMP CONTROL BRACKET

$10.99

$

In Stock, only 2 left!

0

30

Cub Cadet 951-14419A

AIR FILTER BASE GASKET

$8.99

$

In Stock, Qty 16

0

31

Cub Cadet 951-14631

AIR FILTER HOUSING ASSEMBLY

$19.99

$

In Stock, only 2 left!

0

33

Cub Cadet 931-10202

AIR FILTER COVER

$10.99

$

In Stock, Qty 8

0

34

Cub Cadet 951-14632A

AIR FILTER

$16.99

$

In Stock, Qty 17

0

35

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 18

0

36

Cub Cadet 710-04969

BOLT-M6-1 x 30 GR8.8

$4.49

$

In Stock, Qty 11

0

37

Cub Cadet 951-11520

BREATHER HOSE

$6.49

$

In Stock, only 1 left!

0

38

Cub Cadet 951-14421

CHOKE TEMP CONTROL LINKAGE

$

$

Not available

39

Cub Cadet 751P18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$5.49

$

In Stock, Qty 10

0

40

Cub Cadet 715P04090A

PIN (10MMx16MM)

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 747-04862

PUSH ROD
(Superseded to 747P04862A)

$6.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-14432A

TAPPET

$9.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-14433A

PISTON RING SET

$41.99

$

In Stock, only 2 left!

0

44

Cub Cadet 951-11603A

WRIST PIN CLIP

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-14434A

PISTION

$68.99

$

In Stock, only 2 left!

0

46

Cub Cadet 951-14435A

PISTON PIN

$11.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-14436

CONNECTING ROD ASSEMBLY

$

$

Not available

48

Cub Cadet 712-04276A

ACORN NUT M6-1

$6.99

$

In Stock, Qty 15

0

49

Cub Cadet 951-05360A

RECOIL STARTER ASSEMBLY

$60.99

$

In Stock, Qty 20+

0

50

Cub Cadet 631P05655

BLOWER HOUSING

$17.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-14397

STARTER/SHROUD REAR STUD

$10.99

$

In Stock, only 2 left!

0

52

Cub Cadet 951-14398

STARTER/SHROUD FRONT STUD

$10.99

$

In Stock, only 2 left!

0

54

Cub Cadet 951-14127

CARBON CANISTER FILTER CAP

$7.99

$

In Stock, only 1 left!

0

55

Cub Cadet 951-14400

CARBON CANISTER FILTER

$14.99

$

In Stock, only 4 left!

0

56

Cub Cadet 951-14629

CARBON CANISTER

$31.99

$

In Stock, only 2 left!

0

57

Cub Cadet 935-05046

CARBON CANISTER PURGE HOSE

$7.99

$

In Stock, only 1 left!

0

58

Cub Cadet 712-04287A

FLYWHEEL NUT M14-1.5

$6.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-14401A

FLYWHEEL

$124.99

$

In Stock, only 3 left!

0

60

Cub Cadet 951-11596A

UPPER CRANKSHAFT SEAL

$6.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-04980

BOLT M6-1 x 35 GR8.8

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 932-04546

ENGINE BRAKE SPRING

$6.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 951-15543

ENGINE BRAKE ASSEMBLY

$41.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11622A

FLEXIBLE CLAMP

$4.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 925-07281

IGNITION COIL

$51.99

$

In Stock, Qty 10

0

66

Cub Cadet 951-14404

BREATHER COVER PLATE

$15.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-14405A

BREATHER GASKET

$8.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 732-04718A

BREATHER VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-11614A

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11730A

BREATHER SCREEN

$4.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 710-04918

BOLT M6-1 x 20 GR8.8

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-11529A

AIR VANE

$7.99

$

In Stock, only 1 left!

0

73

Cub Cadet 951-14719

AIR VANE BRACKET

$8.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 751P18989

CRANKCASE

$79.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-14407

FUEL CAP ASSEMBLY

$15.99

$

In Stock, only 2 left!

0

76

Cub Cadet 731-08104

FUEL TANK NUT

$7.99

$

In Stock, only 2 left!

0

77

Cub Cadet 951-14406A

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 731-08133

FUEL TANK LOWER GROMMET

$8.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 725-06031A

CABLE TIE 3x150

$2.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 931-04629

FUEL TANK

$73.99

$

In Stock, Qty 5

0

82

Cub Cadet 951-12296A

FUEL FILTER

$10.99

$

In Stock, Qty 20+

0

83

Cub Cadet 935-05047

FUEL HOSE

$16.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

In Stock, Qty 9

0

85

Cub Cadet 723-04071A

FUEL LINE SUPPORT CLAMP

$3.49

$

In Stock, Qty 6

0

86

Cub Cadet 951-11680

FLEXIBLE CLAMP

$4.49

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-15800

COMPONENT BRACKET

$6.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 951-14408

CHOKE LINKAGE

$6.99

$

In Stock, Qty 10

0

89

Cub Cadet 951-14409

THROTTLE LINKAGE SPRING

$9.49

$

In Stock, only 2 left!

0

90

Cub Cadet 951-14410

THROTTLE LINKAGE

$8.99

$

In Stock, only 1 left!

0

91

Cub Cadet 951-11621

GOVERNOR ARM SHAFT

$10.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-11902A

OIL SEAL

$4.49

$

In Stock, only 2 left!

0

93

Cub Cadet 714-04078A

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-14411

GOVERNOR SPRING

$10.99

$

In Stock, only 4 left!

0

95

Cub Cadet 951-05485

GOVERNOR ARM ASSEMBLY

$8.49

$

Usually ships in 3-6 days

0

96

Cub Cadet 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$6.49

$

In Stock, only 1 left!

0

97

Cub Cadet 715-04092A

DOWEL PIN 7 X 14

$3.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

In Stock, only 2 left!

0

99

Cub Cadet 751P11369A

BEARING

$6.49

$

Usually ships in 3-6 days

0

100

CRANKSHAFT ASSEMBLY

$

$

Not available

101

Cub Cadet 751P19128

CRANKSHAFT

$90.99

$

In Stock, only 1 left!

0

102

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

Usually ships in 3-6 days

0

103

Cub Cadet 931-10288A

GEAR

$9.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 736-04491A

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 751P18628

CAMSHAFT
(Superseded to 751P18628A)

$21.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-11609A

GOVERNOR GEAR MOUNTING PLATE

$4.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-11549

GOVERNOR GEAR/SHAFT ASSEMBLY

$12.99

$

In Stock, only 1 left!

0

108

Cub Cadet 951-11545

LOWER CRANKSHAFT SEAL
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 6

0

109

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.99

$

In Stock, only 2 left!

0

110

Cub Cadet 951-05438

OIL DIPSTICK ASSEMBLY

$14.99

$

In Stock, only 2 left!

0

111

Cub Cadet 921-04795A

O-RING

$4.49

$

Usually ships in 3-6 days

0

112

Cub Cadet 921-04697A

O-RING

$2.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-11733

OIL RETURN SEAL

$5.49

$

Usually ships in 3-6 days

0

114

Cub Cadet 710-04906

OIL DRAIN PLUG

$7.49

$

In Stock, Qty 11

0

115

Cub Cadet 736-04440A

FLAT WASHER

$7.49

$

In Stock, Qty 12

0

116

Cub Cadet 951-14418

CRANKCASE COVER

$

$

Not available

27

Cub Cadet 651-08640

CARBURETOR
(Superseded to 651P08640)

$35.99

$

In Stock, only 2 left!

0

a

Cub Cadet 711P06281A

CHOKE SHAFT

$2.99

$

Usually ships in 3-6 days

0

b

Choke Plate

$

$

Not available

c

Cub Cadet 732P05200A

CHOKE RETURN SPRING

$2.99

$

Usually ships in 3-6 days

0

d

Carburetor Body

$

$

Not available

e

Cub Cadet 721-04710A

FLOAT BOWL O-RING

$2.99

$

In Stock, only 2 left!

0

f

Cub Cadet 751P14049A

NEEDLE VALVE

$3.99

$

Usually ships in 3-6 days

0

g

Cub Cadet 732P05025A

NEEDLE VALVE SPRING

$3.49

$

In Stock, only 1 left!

0

h

Cub Cadet 711P06053A

FLOAT PIN

$2.99

$

Usually ships in 3-6 days

0

i

Cub Cadet 721P04711A

FUEL DRAIN PLUG GASKET

$1.99

$

Usually ships in 3-6 days

0

j

Cub Cadet 710-06227A

Fuel Drain Plug

$

$

Currently unavailable

k

Throttle Shaft

$

$

Not available

l

Idle Jet Assembly

$

$

Not available

m

Screw M3×6 Throttle Plate

$

$

Not available

n

Cub Cadet 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

o

Cub Cadet 708P05096A

THROTTLE PLATE

$2.99

$

Usually ships in 3-6 days

0

p

Cub Cadet 721P04714A

CARB SHAFT GASKET

$1.49

$

Usually ships in 3-6 days

0

q

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

r

Emulsion Tube

$

$

Not available

s

Main Jet

$

$

Not available

t

Cub Cadet 731P09155A

FLOAT

$2.99

$

Usually ships in 3-6 days

0

u

Fuel Bowl

$

$

Not available

v

Cub Cadet 721-04709A

FLOAT BOWL GASKET

$2.99

$

Usually ships in 3-6 days

0

w

Cub Cadet 710-06226

FUEL BOWL BOLT

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z5X65VUC

COMPLETE ENGINE 159cc

$

$

Not available
