6-0700 - Toro 48" Dozer Blade (1975) 48" DOZER BLADE Parts Diagram

48" Dozer Blade

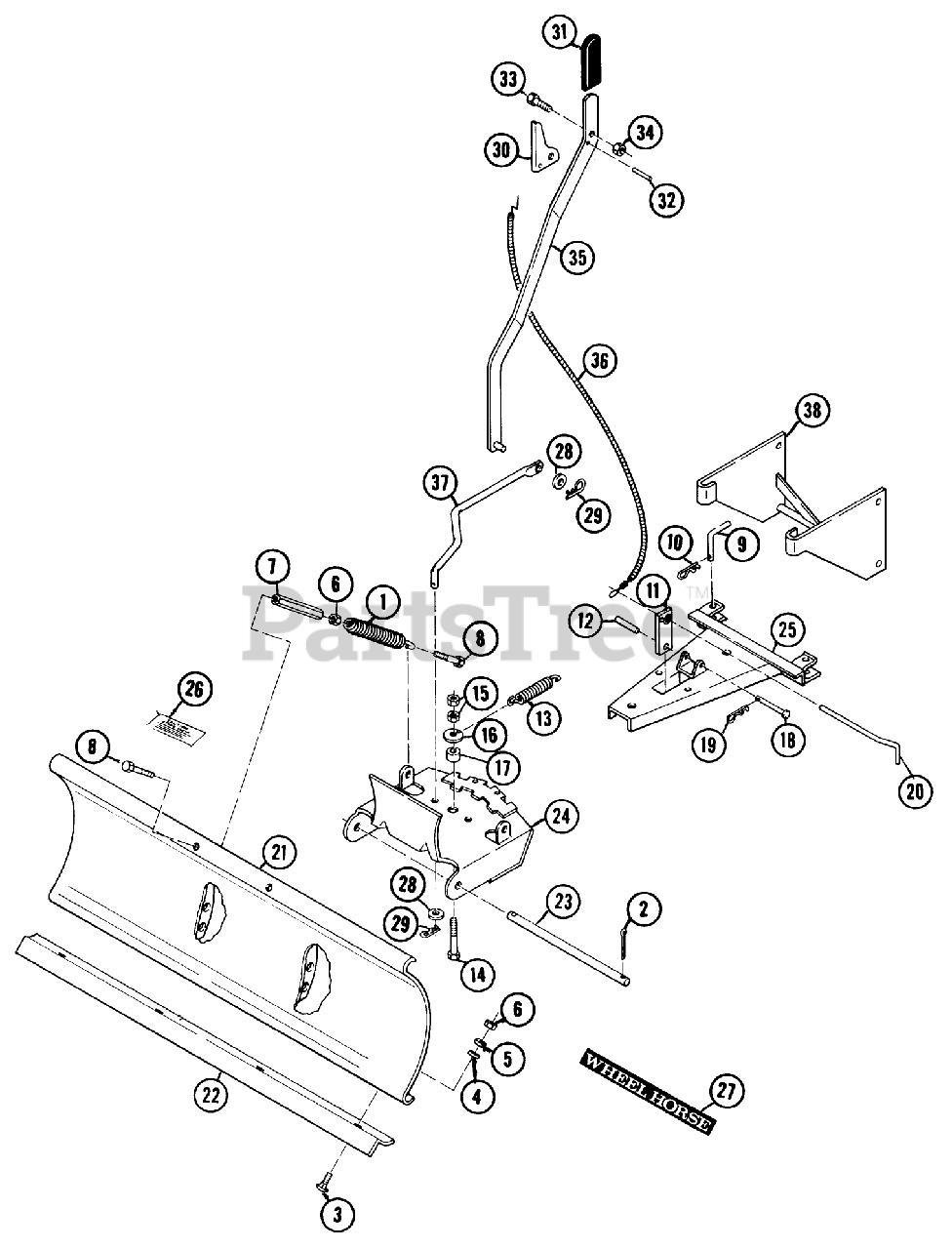

48" DOZER BLADE Parts Diagram

  • Title

1

Toro 518951

Trip Spring

$

$

Currently unavailable

2

Toro 513562

Cotter Pin, .156 x 1.25
(Superseded to 932025)

$

$

Not available

3

Toro 513638

Bolt, Carriage-5/8-16 x 1

$

$

Currently unavailable

4

Toro 513469

Washer-3/8
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

5

Toro 513517

Lockwasher 3/8
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

6

Toro 513415

Nut, Hex 3/8-16
(Superseded to 3217-7)

$0.99

$

In Stock, Qty 13

0

7

Toro 518956

Coupler Nut

$

$

Not available

8

Toro 513363

Bolt, Hex-3/8-16 x 1 1/2
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

9

Toro 518957

"L" Shaped Pin

$

$

Not available

10

Toro 518033

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

11

Toro 518958

Pivot Bar Lock

$

$

Currently unavailable

12

Toro 513591

Pin, Spring 1/4 x 1

$

$

Currently unavailable

13

Toro 518959

Spring, Angle Lock

$

$

Not available

14

Toro 513391

Bolt, Hex 3/4-10 x 4 1/2

$

$

Currently unavailable

15

Toro 513806

Nut, Hex 3/4-10

$

$

Currently unavailable

16

Toro 518962

Washer

$

$

Not available

17

Toro 518961

Spacer
(Superseded to 101757)

$6.49

$

In Stock, Qty 10

0

18

Toro 517636

Clevis Pin

$

$

Not available

19

Toro 517470

Hairpin Cotter

$

$

Currently unavailable

20

Toro 516261

Handle,Angle Lock

$

$

Currently unavailable

21

Toro 518941

Blade-48"

$

$

Not available

22

Toro 516224

Wear Blade

$

$

Not available

23

Toro 518949

Pivot Rod

$

$

Currently unavailable

24

Toro 518953

Pivot Plate

$

$

Currently unavailable

25

Toro 515144

Blade "A" Frame

$

$

Currently unavailable

26

Toro 104956

Caution Decal

$

$

Not available

27

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

28

Toro 513472

Washer, STD. 5/8

$

$

Not available

29

Toro 518033

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

30

Toro 516225

Hand Lever (Index Release)

$

$

Not available

31

Toro 518865

Hand Grip
(Superseded to 5359)

$9.49

$

Usually ships in 3-6 days

0

32

Toro 513570

Roll Pin .12 x 1/2
(Superseded to 933148)

$0.99

$

In Stock, only 4 left!

0

33

Toro 513318

Nut 1/4-20
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

34

Toro 513421

Locknut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

35

Toro 516219

Index Lever

$

$

Not available

36

Toro 518968

Cable Assembly

$

$

Not available

37

Toro 518964

Index Rod

$

$

Not available

38

Toro 521481

Mounting Bracket

$

$

Not available
