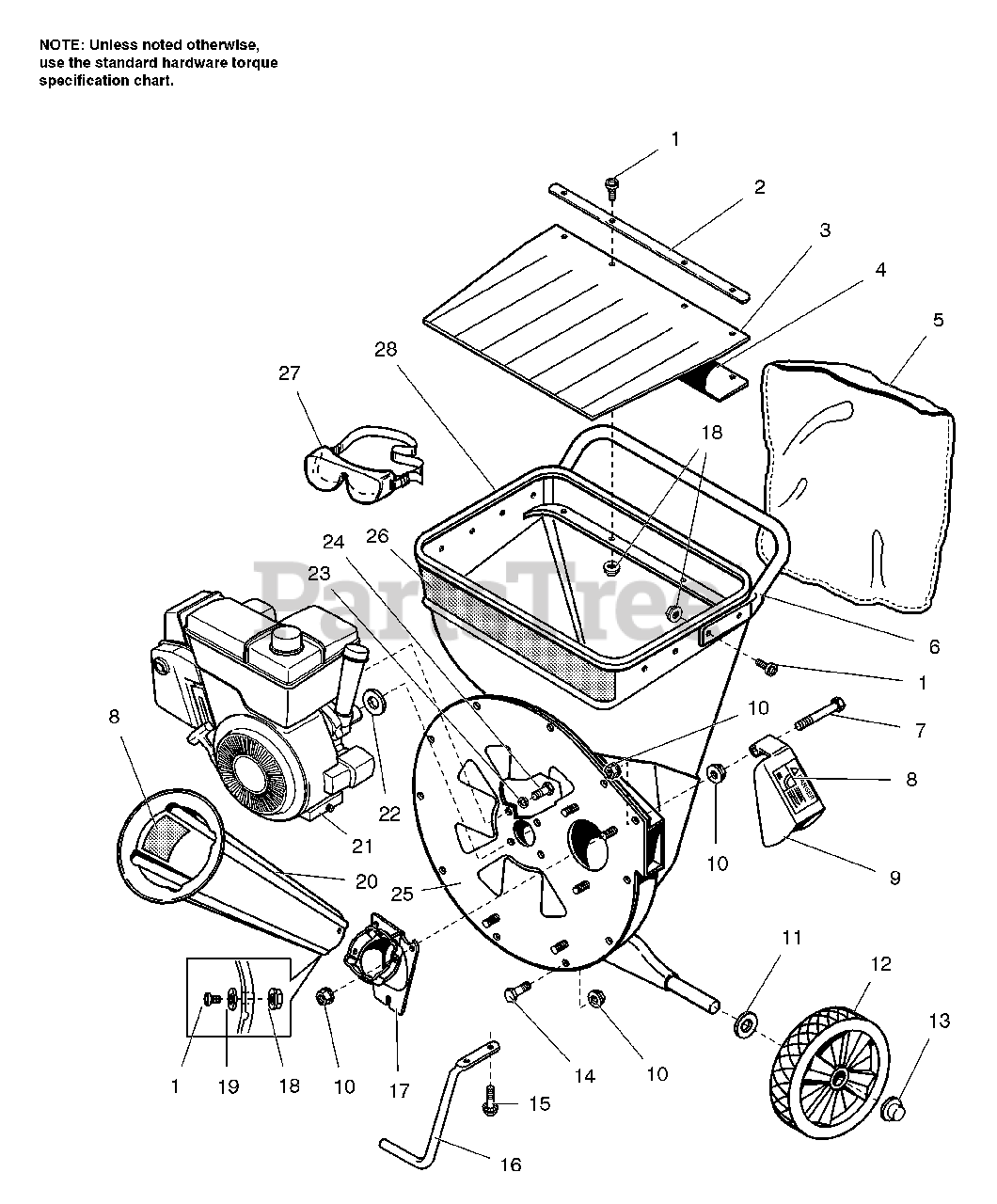

6/14 E (1692904) - Simplicity Chipper Shredder, 6hp Hopper & Engine Group Parts Diagram

Chipper Shredder, 6hp

Hopper & Engine Group Parts Diagram

  • Title

1

Simplicity 1960507SM

SCREW, Button Hd., Hex socket, 1/4-20 x 3/4

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1098100SM

RETAINER STRIP, Hopper Guard

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1095100SM

GUARD, Hopper

$42.99

$

Usually ships in 2-12 days

0

4

Simplicity 1709603SM

SUPPORT, Hopper Guard

$55.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709403SM

BAG, Collection, 24" x 36"

$81.99

$

Usually ships in 2-12 days

0

6

Simplicity 1729181SM

HANDLE, Hopper

$46.99

$

Usually ships in 2-12 days

0

7

Simplicity 1926106SM

CAPSCREW, Hex Hd. 5/16-18 x 3-1/4, Grade 5

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

9

Simplicity 1729194SM

DEFLECTOR, Discharge

$41.99

$

Usually ships in 2-12 days

0

10

Simplicity 1931277SM

NUT, Hex Whiz-lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1924361SM

WASHER, Plain, 17/32 x 1-1/4 x 5/64
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1714250SM

WHEEL & TIRE, 1.75 x 12"

$43.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960519SM

PUSH NUT, 1/2" dia.
(Superseded to 703179)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 1928635SM

SCREW, Taptite, 3/8-16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1713099SM

ROD, Leg

$57.99

$

Usually ships in 2-12 days

0

17

Simplicity 1713272SM

CHIPPER CONE CASTING, 3"
(Superseded to 1753576YP)

$

$

Not available

18

Simplicity 1930642SM

FLANGE NUT, 2-way lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

19

Simplicity 1921319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

20

Simplicity 1709409SM

CONE, Chipper, 3" Yellow
(Superseded to 1753576YP)

$

$

Not available

20

Simplicity 1709409SM

CONE, Chipper, 3" Orange
(Superseded to 1753576YP)

$

$

Not available

21

ENGINE

$

$

Not available

22

Simplicity 2118403SM

SHIELD

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1921515SM

CAPSCREW, Hex, 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1714085SM

ENGINE PLATE ASSY.

$159.99

$

Usually ships in 2-12 days

0

26

Simplicity 1717124

DECAL, 6/14E Simplicity

Note: (Mfg. 1692902 only)

$

$

Not available

26

Simplicity 1717125

DECAL, 6/14E Baker

Note: (Mfg. 1692904 only)

$

$

Not available

27

Simplicity 1729013SM

GOGGLES

$

$

Not available

28

Simplicity 1018100SM

HOPPER-SHREDDER, Yellow

Note: (Mfg. No. 1692904 only)

$212.99

$

Usually ships in 2-12 days

0

28

Simplicity 1713521SM

HOPPER-SHREDDER, Orange

Note: (Mfg. No. 1692902 only)

$364.99

$

Usually ships in 2-12 days

0
