6-9113 - Toro 37" Snow Thrower Attachment (1974) 6-9113 & 6-9131 SNOW THROWER-COMPLETING PACKAGE Parts Diagram

37" Snow Thrower Attachment

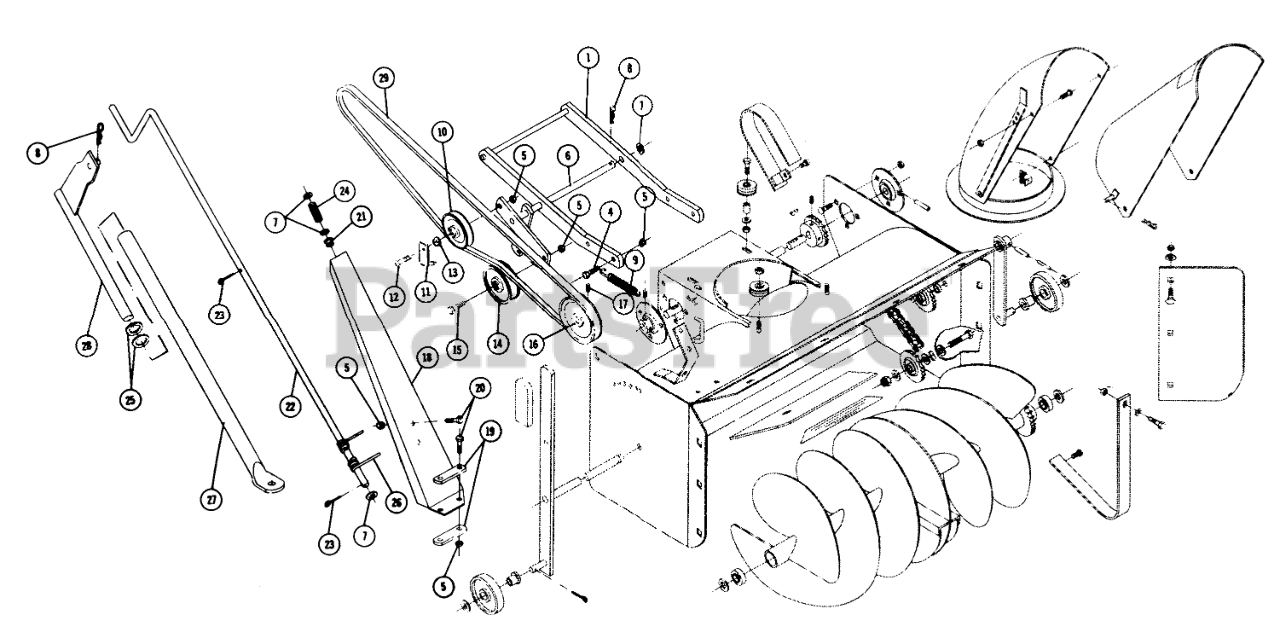

6-9113 & 6-9131 SNOW THROWER-COMPLETING PACKAGE Parts Diagram

  • Title

1

Toro 102588

Mounting Frame
(Superseded to 104604-01)

$

$

Not available

4

Toro 908033-4

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

5

Toro 915113-6

Nut

$

$

Currently unavailable

6

Toro 9596

ASSY IDLER ARM R

$

$

Not available

7

Toro 920011-4

Washer

$

$

Currently unavailable

8

Toro 933504-4

Hairpin

$

$

Currently unavailable

9

Toro 6651

SPRING R

$25.99

$

In Stock, only 2 left!

0

10

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$27.99

$

In Stock, Qty 8

0

11

Toro 7450

Spacer
(Superseded to 7450-01)

$

$

Not available

12

Toro 9080374

Bolt Hex 3/8-16 x 1 3/4

$

$

Currently unavailable

13

Toro 7672

Spacer

$

$

Not available

14

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$36.99

$

In Stock, only 2 left!

0

15

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

16

Toro 8158

Pulley
(Superseded to 88-2190)

$166.99

$

Usually ships in 3-6 days

0

17

Toro 909862-5

Set Screw

$

$

Currently unavailable

18

Toro 6426

Crank Support
(Superseded to 107524)

$

$

Not available

19

Toro 7494

Bar-Reinforcing

$

$

Not available

20

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

21

Toro 5982

NYLINER BUSHING

$

$

Not available

22

Toro 6413

Crank

$

$

Not available

23

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

24

Toro 2354

SPRING-COMPRESSION

$21.99

$

Usually ships in 3-6 days

0

25

Toro 920015-4

Washer

$

$

Currently unavailable

26

Toro 4795

Cable
(Superseded to 104460)

$22.99

$

In Stock, Qty 6

0

27

Toro 101460

Tube-Lift
(Superseded to 107403)

$

$

Not available

Toro 102729

Tube-Lift

$

$

Not available

28

Toro 1986

Lid Rod
(Superseded to 101461-03)

$

$

Not available

29

Toro 9750

V-BELT

$53.99

$

In Stock, only 2 left!

0

Toro 102743

BELT

$168.99

$

In Stock, only 1 left!

0
