60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Body, Frame & Drawbar Parts Diagram

Riding Mower

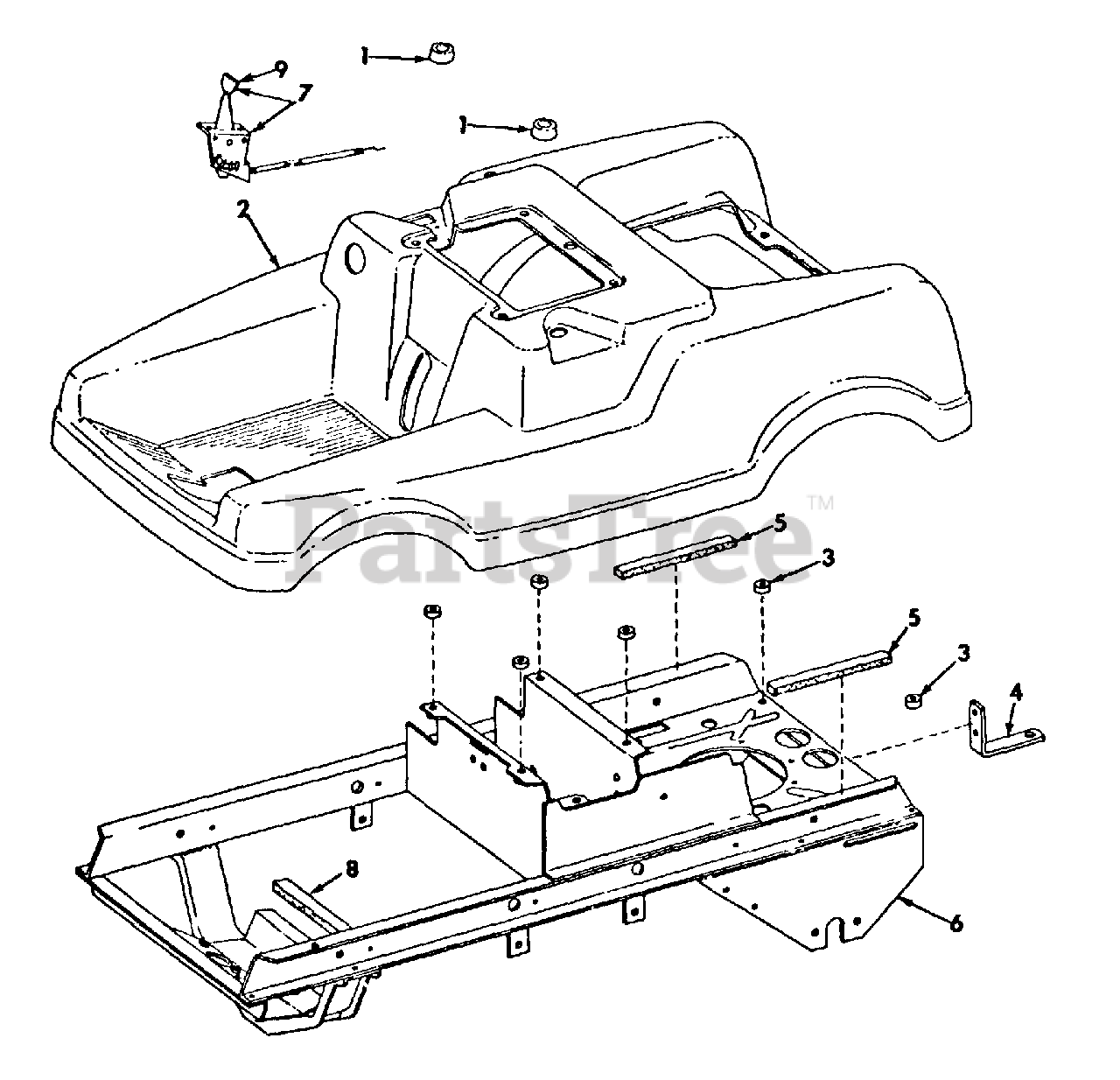

Body, Frame & Drawbar Parts Diagram

  • Title

1

Cub Cadet IH-487823-R1

BUMPER, SEAT SUPPORT REAR

$

$

Not available

Cub Cadet IH-491949-R1

BOLT, 5/16-18 X 1-3/8 C-Z HEX-HD LOCK

$

$

Currently unavailable

Cub Cadet IH-491948-R1

BOLT, 5/16-18 X 1-1/8 C-Z HEX-HD LOCK

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-134238-R1

WASHER, 11/32 X 1.0 X .060 C-Z

$

$

Currently unavailable

2

Cub Cadet IH-549089-R3

BODY, RIDING MOWER

Note: REPLACES IH-487759-R1

$

$

Currently unavailable

3

Cub Cadet IH-487822-R1

SPACER, BODY MOUNTING

$

$

Not available

4

Cub Cadet IH-487953-R1

ANGLE, DRAWBAR

$

$

Currently unavailable

Cub Cadet IH-180078

SCREW, 5/16-18 X 7/8 C-Z HEX-HD CAP
(Superseded to 710-3038)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-411597-R1

NUT, 5/16-18 HEX LOCK
(Superseded to 912-0429)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

5

Cub Cadet IH-481824-R1

SEAL, PRESSURIZED

$

$

Currently unavailable

6

Cub Cadet IH-487806-R1

FRAME ASSY, MAIL

Note: SERIAL NO. 47584 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-541307-R1

FRAME ASSY, MAIN

Note: SERIAL NO. 47585 AND ABOVE

$

$

Currently unavailable

Cub Cadet IH-180122

SCREW, 3/8-16 X 1 C-Z HEX-HD CAP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX
(Superseded to 712-0798)

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet IH-487954-R1

CONTROL ASSY, THROTTLE

Note: FURNISH CONTROL IH-543921-R1 AND KNOB IH-530117-R1

$

$

Not available

Cub Cadet IH-543921-R1

CONTROL, THROTTLE

$

$

Not available

Cub Cadet IH-436665

SCREW, 6-32 X 1/2 C-Z SLT-PAN-HD MACH

$

$

Currently unavailable

Cub Cadet IH-446130

WASHER, 11/64 X 13/32 X .036 C-Z

$

$

Currently unavailable

8

Cub Cadet IH-491719-R1

SEAL, PRESS FRONT REST

$

$

Not available

9

Cub Cadet IH-530118-R1

KNOB, THROTTLE CONTROL
(Superseded to 731-0108)

$8.99

$

In Stock, Qty 9

0

Cub Cadet IH-541310-R1

CLIP, SEAT SUPPORT MOUNTING

Note: SERIAL NO. 47585 AND ABOVE-

$

$

Currently unavailable

Cub Cadet IH-432580

PLUG, 2-3/32 C-Z BUTTON -IGNITION HOLE-

$

$

Currently unavailable
