60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Clutch & Drive Belt Parts Diagram

Riding Mower

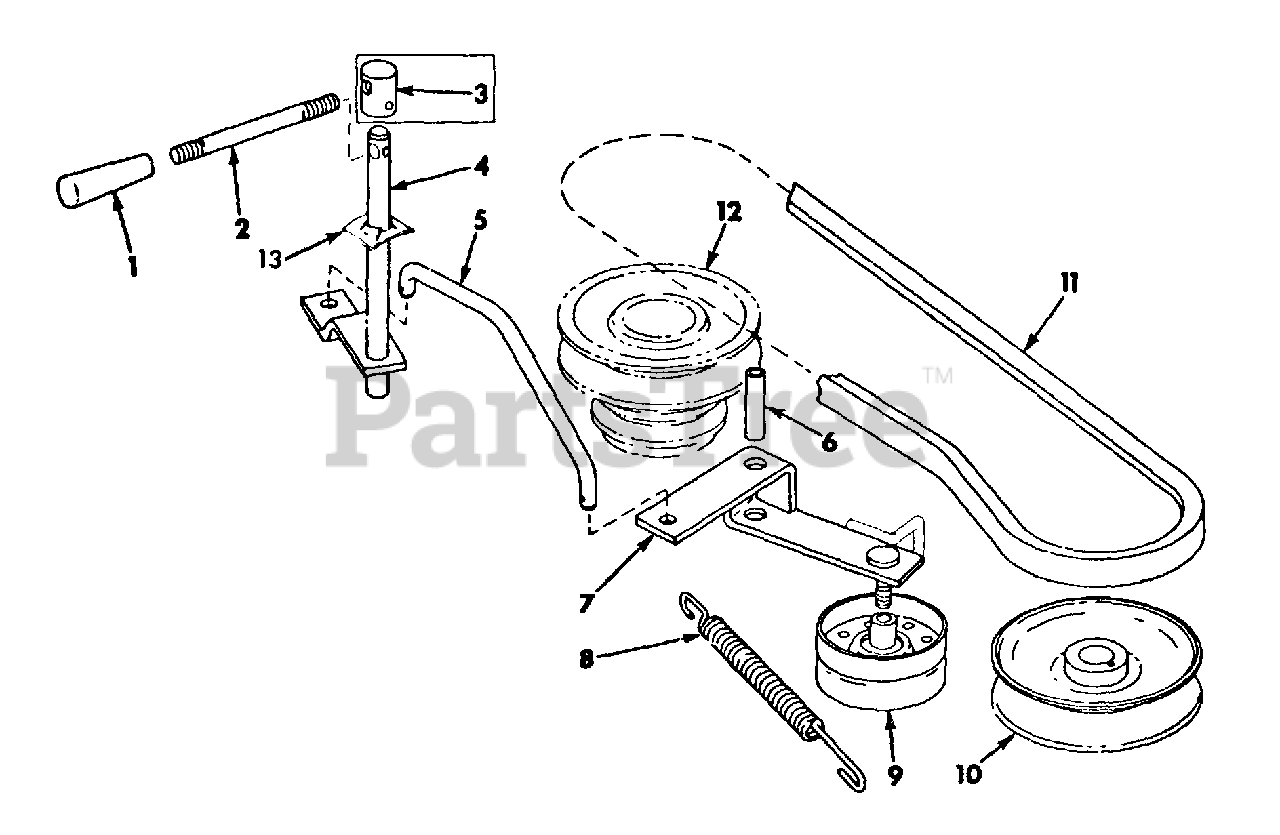

Clutch & Drive Belt Parts Diagram

  • Title

1

Cub Cadet IH-390001-R1

GRIP, SHIFTER HANDLE

$

$

Not available

2

Cub Cadet IH-488093-R1

STUD, SHIFTER HANDLE

$

$

Currently unavailable

Cub Cadet IH-124925

NUT, 3/8-24 C-Z HEX JAM

$

$

Currently unavailable

3

Cub Cadet IH-488092-R1

PIN, MOWER SHIFTER HANDLE

Note: FURNISH LEVER IH-541286-R1, NUT IH-317598-R1 AND WASHER IH-21782-R1

$

$

Currently unavailable

Cub Cadet IH-21072-R1

PIN, 3/16 X 1 MED COILED SPRING
(Superseded to 915-0247)

$

$

Not available

4

Cub Cadet IH-488089-R1

LEVER ASSY, MOWER SHIFTER

Note: FURNISH LEVER IH-541286-R1, NUT IH-317598-R1 AND WASHER IH-21782-R1

$

$

Currently unavailable

Cub Cadet IH-541286-R1

LEVER ASSY, MOWER SHIFTER

$

$

Currently unavailable

5

Cub Cadet IH-488088-R3

ROD, MOWER SHIFTER

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

6

Cub Cadet IH-489090-R1

BUSHING, SHIFTER ARM

$

$

Not available

7

Cub Cadet IH-488083-R2

LEVER ASSY, IDLER MOWER

$

$

Not available

Cub Cadet IH-488377

NUT, 3/8-16 2ND HEX

$

$

Currently unavailable

Cub Cadet IH-120372-R1

WASHER, 13/32 X 1-1/4 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-178134

SCREW, 3/8-16 X 2-1/2 C-Z HEX-HD CAP

$

$

Currently unavailable

8

Cub Cadet IH-67310D

SPRING, MOWER CLUTCH RETURN

$

$

Currently unavailable

9

Cub Cadet IH-488491-R1

PULLEY, MOWER SHIFTER IDLER
(Superseded to 956-3013)

Note: FURNISH PULLEY IH-488094-R1

$

$

Not available

Cub Cadet IH-488094-R1

PULLEY, MOWER SHIFTER IDLER
(Superseded to 956-3013)

$

$

Not available

10

Cub Cadet IH-489411-R1

PULLEY ASSY, MOWER DRIVE

$

$

Not available

11

Cub Cadet IH-488082-R2

BELT, MOWER DRIVE

$

$

Not available

12

PULLEY, CENTER SPINDLE

Note: REFER TO MAIN FRAME AND KNIFE UNIT LISTING

$

$

Not available

13

Cub Cadet IH-317598-R1

NUT, SPEED PUSHION TYPE

Note: USED W/LEVER IH-541286-R1

$

$

Not available

Cub Cadet IH-21782-R1

WASHER, 21/32 X 1-1/2 X 16 GA C-Z

$

$

Currently unavailable
