60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Front Axle Parts Diagram

Riding Mower

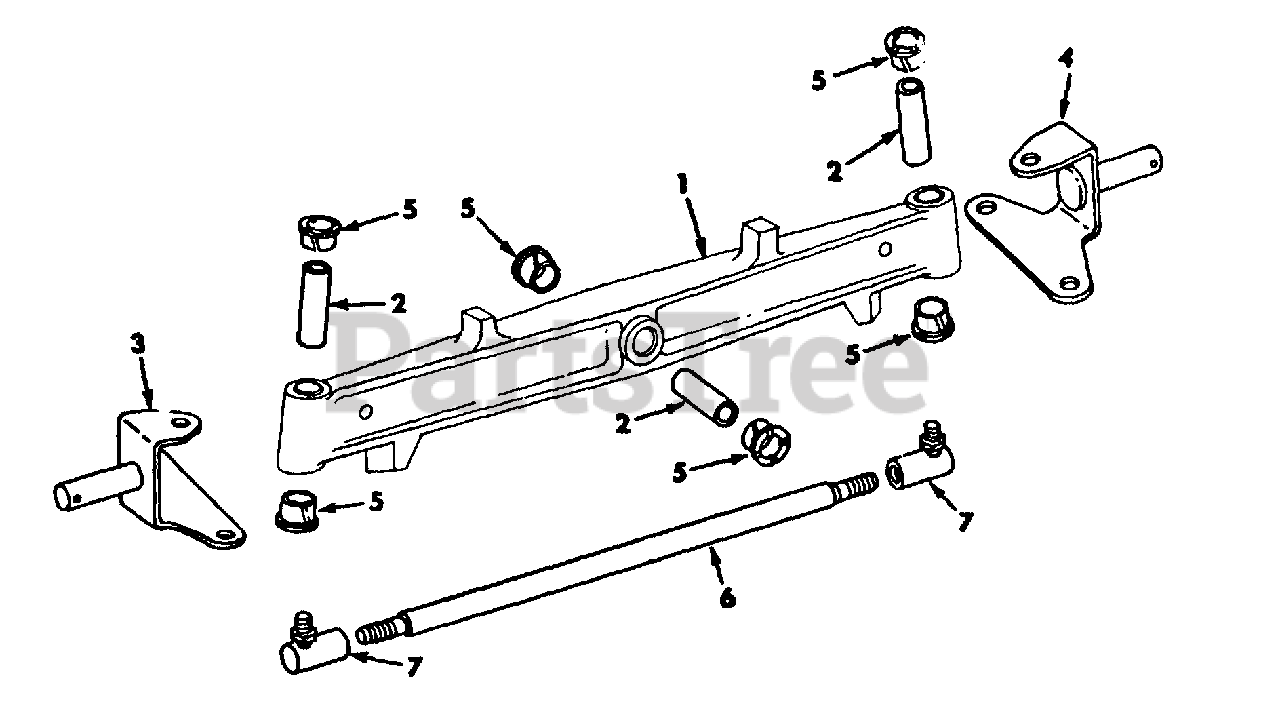

Front Axle Parts Diagram

  • Title

1

Cub Cadet IH-487940-R1

AXLE ASSY, FRONT

Note: FURNISH AXLE ASSY IH-541305-R1

$

$

Not available

Cub Cadet IH-541305-R1

AXLE ASSY, FRONT

$

$

Not available

Cub Cadet IH-385525-R1

NUT, 3/8-16 GRIPCO LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-189305

SCREW, 3/8-16 X 3-1/2 C-Z HEX-HD CAP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-487943-R1

BUSHING, FRONT AXLE

$

$

Not available

3

Cub Cadet IH-487944-R1

ARM ASSY, SPINDLE RH

$

$

Not available

Cub Cadet IH-385525-R1

NUT, 3/8-16 GRIPCO LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-169305

SCREW. 3/6-16 X 3-1/2 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-121673

PIN, 7/16 X 1 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-490963-R1

WASHER, 765 X 1.920 X .060 -HUB CAP-

$

$

Not available

Cub Cadet IH-551658-R1

WASHER, 25/32 X 1-1/4 X 22 GA

Note: 1 OR AS REQUIRED

$

$

Currently unavailable

4

Cub Cadet IH-487945-R1

ARM ASSY. SPINDLE LH

$

$

Not available

Cub Cadet IH-385525-R1

NUT, 3/8-16 GRIPCO LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-189305

SCREW, 3/8-16 X 3-1/2 C-Z HEX-HD CAP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-121673

PIN, 7/64 X 1 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-490963-R1

WASHER, .765 X 1.920 X .060 -HUB CAP-

$

$

Not available

Cub Cadet IH-551658-R1

WASHER, 25/32 X 1-1/4 X 22 GA

Note: 1 OR AS REQUIRED

$

$

Currently unavailable

5

Cub Cadet IH-307920-R1

BEARING, FRONT AXLE
(Superseded to 731-3015)

$

$

Not available

6

Cub Cadet IH-487949-R1

ROD, TIE

$

$

Not available

Cub Cadet IH-114494

NUT, 3/8-24 HEX. JAM
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-392594-R1

JOINT, TIE ROD
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

Cub Cadet IH-443336

NUT, 3/8-24 HEX. LOCK

$

$

Currently unavailable
