60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Ignition & Starting Parts Diagram

Riding Mower

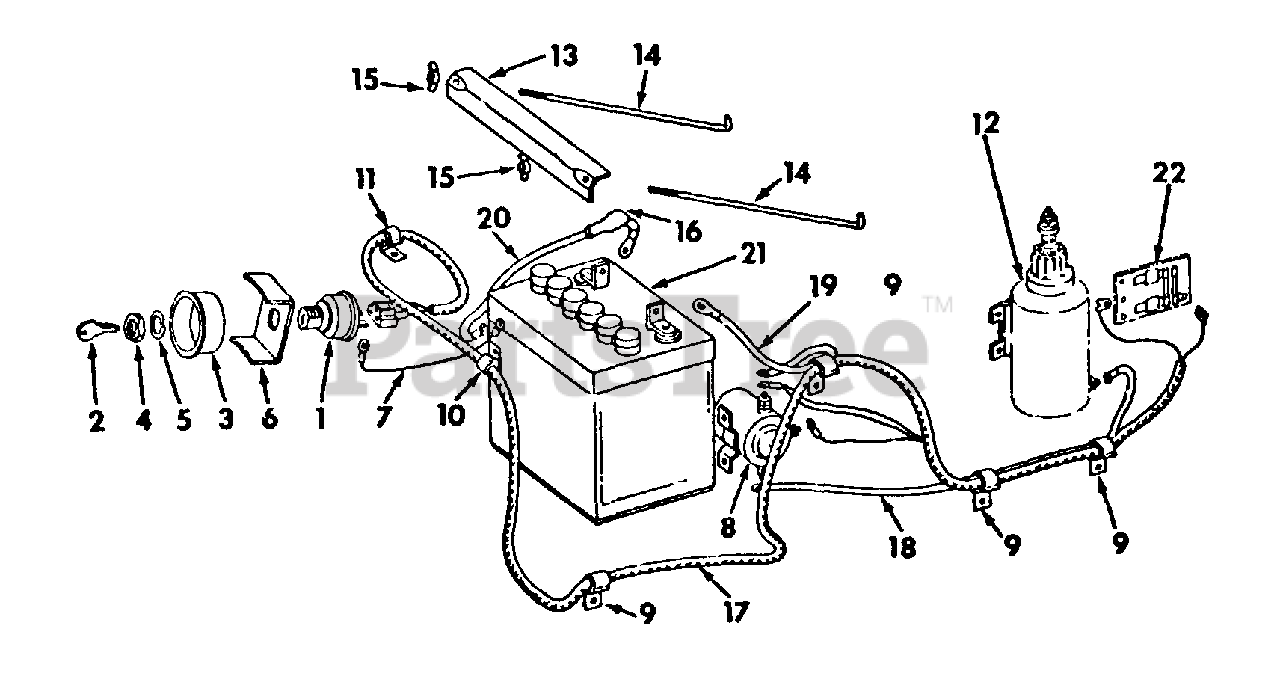

Ignition & Starting Parts Diagram

  • Title

1

Cub Cadet IH-488509-R1

SWITCH, MAGNETO IGNITION AND STARTING

$

$

Not available

2

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

$11.99

$

In Stock, only 2 left!

0

3

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

$

$

Currently unavailable

4

Cub Cadet IH-365502-R1

NUT, MAGNETO IGNITION KEY MOUNTING

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet IH-375431-R1

WASHER, MAGNETO IGNITION KEY MOUNTING

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet IH-491539-R1

RETAINER, IGNITION SWITCH

Note: REPLACES IH-402239-R1

$

$

Not available

7

Cub Cadet IH-490192-R1

CABLE ASSY, SWITCH TO GROUND

$

$

Currently unavailable

Cub Cadet IH-455956

SCREW, 8-32 X 5/16 C-Z SLT-HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-131182

WASHER, NO. 8 C-Z LIGHT LOCK

$

$

Not available

Cub Cadet IH-120622

NUT, 8-32 C-Z HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet IH-1114209

SWITCH, MAGNETIC - DELCO REMY
(Superseded to IH-1114532P)

$156.99

$

In Stock, only 2 left!

0

Cub Cadet IH-20043-R1

SCREW, 1/4-20 X 5/8 C-Z SLT-PAN-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet IH-384557-R1

CLIP, CABLE

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet IH-491760-R1

CLIP, CABLE

$

$

Currently unavailable

11

Cub Cadet IH-491760-R1

CLIP, CABLE HARNESS

$

$

Currently unavailable

12

MOTOR, STARTING

Note: FOR COMPONENTS, SEE "STARTER MOTOR" ILLUSTRATION AND PARTS LIST.

$

$

Not available

13

Cub Cadet IH-376293-R2

CLAMP, BATTERY HOLD DOWN

$

$

Not available

14

Cub Cadet IH-487955-R1

BOLT, BATTERY HOLD DOWN

$

$

Not available

15

Cub Cadet IH-376137-R1

NUT, 1/4-20 WING
(Superseded to KH-25-100-15-S)

$

$

Not available

16

Cub Cadet IH-364910-R1

COVER, BATTERY TERMINAL

$

$

Currently unavailable

17

Cub Cadet IH-488802-R1

HARNESS ASSY, CABLE

Note: SERIAL NO. 39351 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-542567-R1

HARNESS ASSY, CABLE

Note: SERIAL NO. 39352 AND ABOVE

$

$

Currently unavailable

18

Cub Cadet IH-487956-R1

CABLE ASSY, MAGNETIC SWITCH TO MOTOR

$

$

Currently unavailable

19

Cub Cadet IH-487957-R1

CABLE ASSY, BATTERY
(Superseded to 629-0705)

$

$

Not available

Cub Cadet IH-16897-R1

BOLT, 5/16 X 3/4 C-Z SHORT SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z WED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet IH-487957-R1

CABLE ASSY, GROUND
(Superseded to 629-0705)

Note: WILL WORK FOR IH-487960-R1

$

$

Not available

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-1 MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-16559-R1

WASHER, 17/64 X 5/8 X 049 C-Z
(Superseded to 936-3020)

$

$

Not available

Cub Cadet IH-120375

NUT, 1/4-20 C-2 HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet IH-STL-U2

BATTERY, LOW-MAINTENANCE 12 VOLT

$

$

Currently unavailable

22

PANEL, RECTIFIER

Note: REFER TO "MAGNETO" ILLUSTRATION AND PARTS LIST.

$

$

Not available
