60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Mower Hitch Parts Diagram

Riding Mower

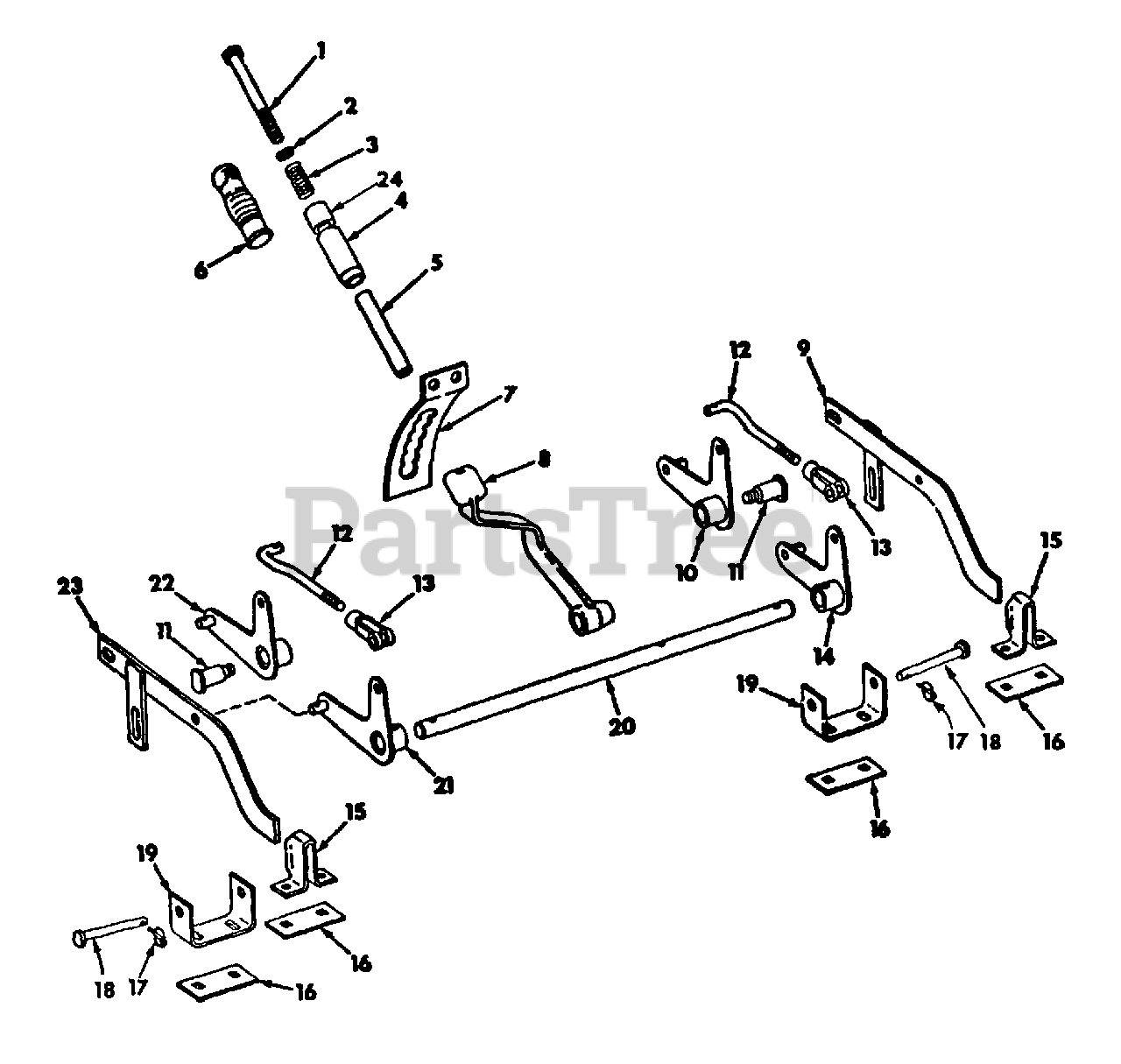

Mower Hitch Parts Diagram

  • Title

1

Cub Cadet IH-16922-R1

SCREW, 3/8-16 X 6-1/4 C-Z HEX-HD CAP

$

$

Not available

2

Cub Cadet IH-374187-R1

WASHER, SPRING RETAINING

$

$

Not available

3

Cub Cadet IH-488049-R1

SPRING, COMPRESSION

$

$

Not available

4

Cub Cadet IH-541282-R1

BUSHING, MOWER LIFT HANDLE

Note: WILL WORK FOR IH-488047-R1

$

$

Currently unavailable

5

Cub Cadet IH-488048-R1

BUSHING, LIFT HANDLE

$

$

Currently unavailable

6

Cub Cadet IH-488835-R1

GRIP, HANDLE

$

$

Not available

7

Cub Cadet IH-488046-R1

SECTOR, LIFT HANDLE

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

8

Cub Cadet IH-488050-R1

LEVER, MOWER LIFT

$

$

Not available

Cub Cadet IH-19885-R1

PIN, 1/4 X 1-3/8 MED COILED SPRING
(Superseded to 915-3000)

$

$

Not available

9

Cub Cadet IH-488059-R3

SUPPORT ASSY, LIFT BAR RH

$

$

Not available

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-178373-R1

WASHER, 17/32 X 1 X 16 GA C-Z
(Superseded to 936-0160)

$3.99

$

In Stock, Qty 17

0

10

Cub Cadet IH-489069-R1

ARM ASSY, MOWER LIFT FRONT RH

$

$

Currently unavailable

11

Cub Cadet IH-489066-R1

PIN, PIVOT

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X .074 C-Z
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet IH-488062-R1

ROD, CONNECTING

$

$

Currently unavailable

Cub Cadet IH-114494

NUT, 3/8-24 HEX JAM
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

Cub Cadet IH-138084

PIN, 3/8 X 1-3/32 ROD END
(Superseded to 911-3010)

$

$

Not available

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-Q1597

WASHER, 13/32 X 3/4 X 16 GA

$

$

Currently unavailable

13

Cub Cadet IH-116536

CLEVIS, 3/8-24 X 2-3/16 SHORT ADJ ROD END

$

$

Currently unavailable

14

Cub Cadet IH-488054-R1

ARM ASSY, MOWER LIFT REAR RH

$

$

Not available

Cub Cadet IH-19885-R1

PIN, 1/4 X 1-3/8 MED COILED SPRING
(Superseded to 915-3000)

$

$

Not available

15

Cub Cadet IH-488067-R1

CHANNEL, LIFT BAR REAR GUIDE

$

$

Not available

Cub Cadet IH-20893-R1

WASHER, 11/32 X 1 X 11 GA C-Z

$

$

Currently unavailable

16

Cub Cadet IH-489070-R2

PLATE, STIFFENER

$

$

Not available

Cub Cadet IH-19576-R1

BOLT, 5/16 X 7/8 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-21496-R1

WASHER, 11/32 X 3/4 X .120 C-Z
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet IH-479696-R91

PIN ASSY, KLIK
(Superseded to 914-3008)

$

$

Not available

18

Cub Cadet IH-492360-R1

PIN, CLEVIS

$

$

Not available

Cub Cadet IH-20601-R1

WASHER, 17/32 X 1-1/4 X .119 C-Z
(Superseded to 936-0179)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet IH-488065-R1

CLEVIS, LOCKPIN FRONT BRACKET

$

$

Currently unavailable

20

Cub Cadet IH-488052-R1

ROD, MOWER LIFT REAR

$

$

Not available

21

Cub Cadet IH-488053-R1

ARM ASSY, MOWER LIFT REAR LH

$

$

Currently unavailable

Cub Cadet IH-19885-R1

PIN, 1/4 X 1-3/8 MED COILED SPRING
(Superseded to 915-3000)

$

$

Not available

22

Cub Cadet IH-489067-R1

ARM ASSY, MOWER LIFT FRONT LH

$

$

Not available

Cub Cadet IH-20893-R1

WASHER, 11/32 X 1 X 11 GA C-Z

Note: AS REQUIRED

$

$

Currently unavailable

23

Cub Cadet IH-488058-R3

SUPPORT ASSY, LIFT BAR LH

$

$

Not available

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-178373-R1

WASHER, 17/32 X 1 X 16 GA C-Z
(Superseded to 936-0160)

$3.99

$

In Stock, Qty 17

0

24

Cub Cadet IH-541283-R1

BUSHING, MOWER LIFT HANDLE

Note: WILL WORK FOR IH-488047-R1

$

$

Currently unavailable
