60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Mower Main Frame & Knife Unit Parts Diagram

Riding Mower

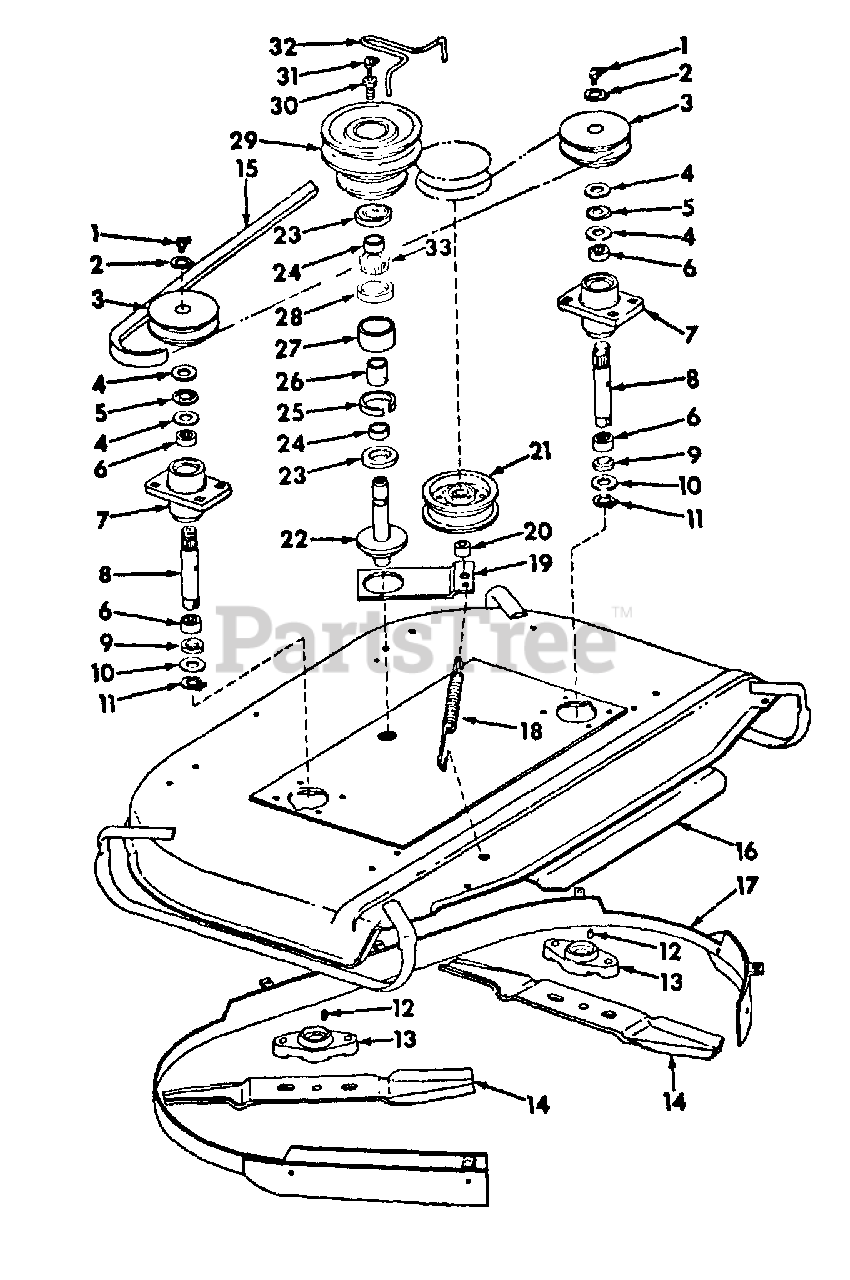

Mower Main Frame & Knife Unit Parts Diagram

  • Title

1

Cub Cadet IH-273359

FITTING, 3/16 ANGLE DRIVE LUB

$

$

Not available

2

Cub Cadet IH-21332-R1

RING, SNAP

$

$

Not available

3

Cub Cadet IH-489434-R1

PULLEY, BLADE

$

$

Not available

4

Cub Cadet IH-56645-C1

WASHER, THRUST
(Superseded to 736-0617)

Note: WILL WORK FOR IH-386251-R1

$10.99

$

In Stock, Qty 5

0

5

Cub Cadet IH-324105-R91

BEARING, NEEDLE
(Superseded to IH-324105-R92)

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet IH-276578-R91

BEARING, NEEDLE
(Superseded to 741-0665)

$19.99

$

In Stock, only 2 left!

0

7

Cub Cadet IH-489430-R1

HOUSING, BLADE SHAFT

$

$

Currently unavailable

Cub Cadet IH-491722-R1

BOLT, 5/16-18 SQ-NK CRG
(Superseded to 710-0276)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-19277-R1

NUT, 5/16-18 NYLON INSERT

$

$

Currently unavailable

8

Cub Cadet IH-489433-R1

SHAFT, NEEDLE

$

$

Not available

9

Cub Cadet IH-65457-C1

SEAL, GREASE
(Superseded to 721-3007)

Note: REPLACES IH-489431-R1

$

$

Not available

10

Cub Cadet IH-489432-R1

WASHER, THRUST
(Superseded to 736-3047)

$9.99

$

In Stock, only 1 left!

0

11

Cub Cadet IH-269181-R1

RING, SNAP
(Superseded to 916-0101)

$3.49

$

In Stock, Qty 11

0

12

Cub Cadet IH-626803-R1

KEY, 3/16 X 1/2 SQ PARALLEL
(Superseded to 714-3009)

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-488080-R1

ADAPTER, BLADE
(Superseded to 719-3023)

$

$

Not available

Cub Cadet IH-181613

SCREW, 5/16-24 X 1-3/8 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 ZND MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120368

NUT, 5/16-24 ZND HEX
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet IH-490469-R1

BLADE, 32 IN MOWER -HARD SURFACED-

$

$

Not available

Cub Cadet IH-488081-R1

BLADE, 32 IN MOWER

$

$

Not available

Cub Cadet IH-21496-R1

WASHER, 11/32 X 3/4 X .120 C-Z
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet IH-181637

SCREW, 3/8-24 X 1 ZND HEX-HD CAP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120382

WASHER, 3/8 ZND MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet IH-488077-R1

BELT, BLADE DRIVE

$

$

Not available

16

Cub Cadet IH-487774-R1

HOUSING ASSY, MOWER

$

$

Currently unavailable

17

Cub Cadet IH-488078-R1

SHROUD ASSY, MOWER

$

$

Currently unavailable

Cub Cadet IH-180014

SCREW, 1/4-20 X 3/8 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-1 WED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet IH-53182D

SPRING, PEDAL RETURN

$

$

Currently unavailable

19

Cub Cadet IH-489073-R1

ARM, IDLER

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

In Stock, only 2 left!

0

Cub Cadet IH-180128

SCREW, 3/8-16 X 1-3/4 C-Z HEX-HD CAP
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet IH-493354-R1

SPACER, IDLER PULLEY

Note: REPLACES IH-359105-R1

$

$

Currently unavailable

21

Cub Cadet IH-489074-R92

IDLER, BALL BRG

$

$

Not available

22

Cub Cadet IH-489071-R1

SHAFT ASSY

$

$

Currently unavailable

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

23

Cub Cadet IH-473428-R91

SEAL, SPINDLE OIL
(Superseded to IH-473428-R92)

$16.99

$

In Stock, only 4 left!

0

24

Cub Cadet IH-473431-R2

SPACER, PULLEY
(Superseded to IH-473431-R3)

$

$

Not available

25

Cub Cadet IH-473429-R1

SPACER, SPLIT OUTER
(Superseded to 941-3031)

$

$

Not available

26

Cub Cadet IH-543196-R1

SPACER, SPINDLE BEARING

Note: WILL WORK FOR IH-481098-R1

$28.99

$

Usually ships in 3-6 days

0

27

Cub Cadet IH-481097-R1

BUSHING, BRG OD

$69.99

$

Usually ships in 3-6 days

0

28

Cub Cadet IH-473430-R91

BEARING ASSY, SPINDLE

Note: FURNISH CUP IH-651814-R1, CONE IH-651815-R91 AND SPACER IH-543196-R1

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-651814-R1

CUP, SPINDLE BEARING
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

29

Cub Cadet IH-488071-R1

PULLEY, CENTER SPINDLE

$

$

Currently unavailable

30

Cub Cadet IH-473435-R1

BOLT, END
(Superseded to 710-06455)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-614452-R1

WASHER, 13/32 X 1-1/4 X 11 GA C-Z
(Superseded to 936-0133)

$

$

Not available

Cub Cadet IH-490196-R1

WASHER, 13/32 X 1-1/4 X .180
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

31

Cub Cadet IH-19700-R91

FITTING, 3/16 45 DEG DRIVE TYPE LUB
(Superseded to 737-0108)

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet IH-490490-R1

GUIDE, PTO BELT

$

$

Currently unavailable

33

Cub Cadet IH-651815-R91

CONE, SPINDLE BEARING
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0
