60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Rear Axle & Differential Parts Diagram

Riding Mower

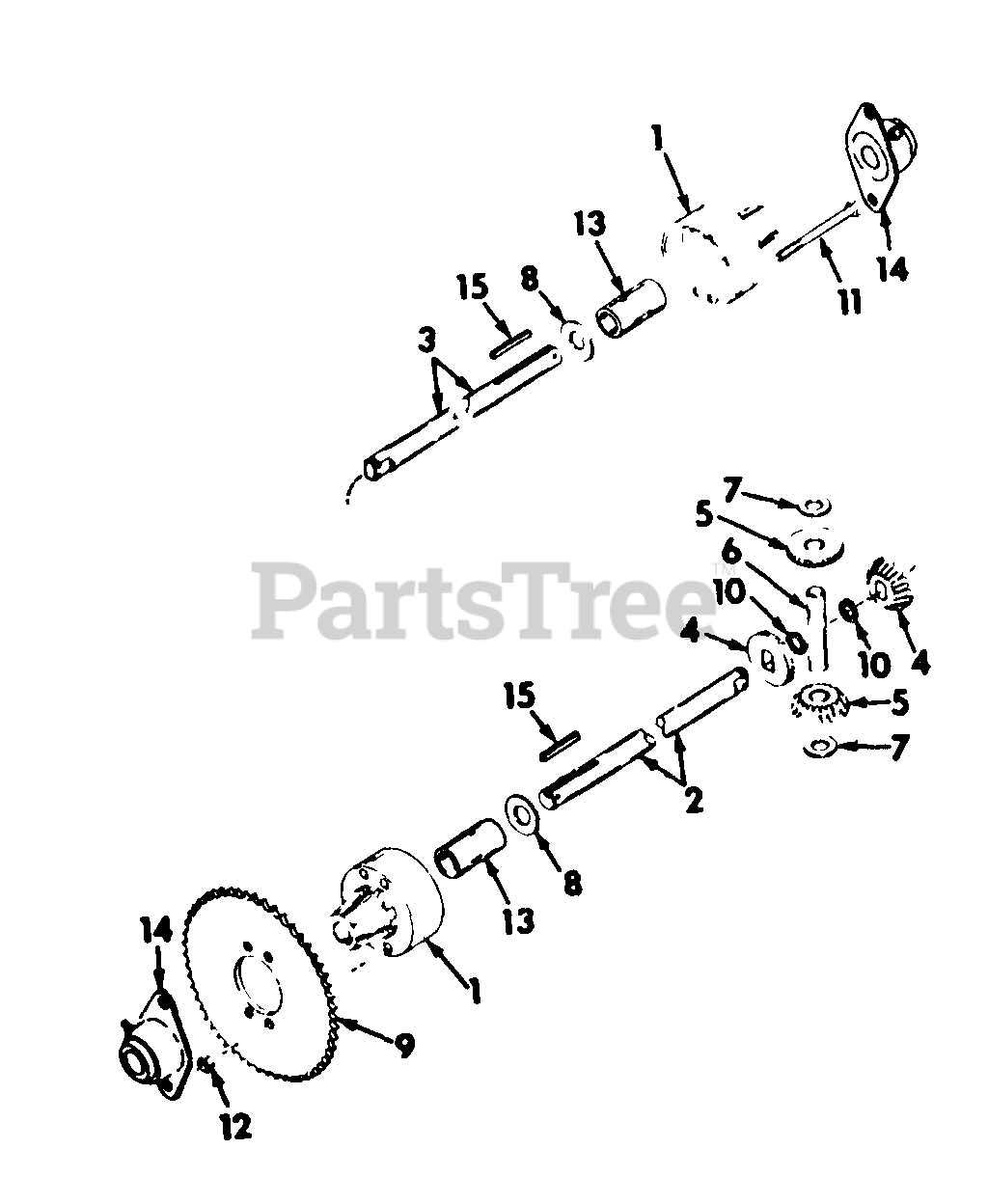

Rear Axle & Differential Parts Diagram

  • Title

Cub Cadet IH-62777-C91

AXLE ASSY, DRIVE

Note: REPLACES IH-487951-R91

$

$

Currently unavailable

1

Cub Cadet IH-62778-C91

HOUSING, DIFFERENTIAL CARRIER -SPROCKET SIDE-

Note: REPLACES IH-488842-R1 BY ALSO ORDERING HOUSING IH-62779-C91 AND FOUR BOLTS IH-62781-C1

$

$

Not available

Cub Cadet IH-62779-C91

HOUSING, DIFFERENTIAL CARRIER

Note: REPLACES IH-488842-R1 BY ALSO ORDERING HOUSING IH-62778-C91 AND FOUR BOLTS IH-62781-C1

$

$

Not available

2

Cub Cadet IH-488843-R1

AXLE -8-27/32 IN. LONG-

$

$

Currently unavailable

Cub Cadet IH-121673

PIN, 7/64 X 1 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-490963-R1

WASHER. .765 X 1.920 X .060 -HUB CAP-

$

$

Not available

Cub Cadet IH-551658-R1

WASHER, 25/32 X 1-1/4 X 22 GA

Note: AS REQUIRED

$

$

Currently unavailable

3

Cub Cadet IH-488844-R1

AXLE -21-55/64 IN. LONG-

$

$

Currently unavailable

Cub Cadet IH-121673

PIN, 7/64 X 1 COT.
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-490963-R1

WASHER, .765 X 1.920 X .060 -HUB CAP-

$

$

Not available

Cub Cadet IH-551658-R1

WASHER, 25/32 X 1-1/4 X 22 GA

Note: AS REQUIRED

$

$

Currently unavailable

4

Cub Cadet IH-488845-R1

GEAR. BEVEL -16 T

$

$

Not available

5

Cub Cadet IH-488846-R1

GEAR. PINION -16 T
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

6

Cub Cadet IH-488847-R1

PIN, DRIVE

$

$

Not available

7

Cub Cadet IH-488848-R1

WASHER, THRUST BRG RACE

$

$

Currently unavailable

8

Cub Cadet IH-488849-R1

WASHER

$

$

Not available

9

Cub Cadet IH-488850-R1

SPROCKET - 45 T

$

$

Not available

10

Cub Cadet IH-269181-R1

RING. RETAINER
(Superseded to 916-0101)

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-62781-C1

SCREW, 5/16-18 SPECIAL

Note: REPLACES IH-186271

$

$

Not available

12

Cub Cadet IH-472146-R1

NUT, 5/16-18 LOCK

$

$

Not available

13

Cub Cadet IH-489335-R1

BUSHING

$

$

Not available

14

Cub Cadet IH-487950-R1

BEARING, REAR AXLE
(Superseded to IH-541438-R2)

Note: SERIAL NO 47584 AND BELOW

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-575813-R1

WASHER, 25/32 X 1-1/4 X 11 GA

$

$

Not available

14

Cub Cadet IH-541438-R1

BEARING. REAR AXLE
(Superseded to IH-541438-R2)

Note: SERIAL NO. 47585 AND ABOVE

$

$

Not available

Cub Cadet IH-541313-R1

BOLT, REAR AXLE MOUNTING

$

$

Not available

Cub Cadet IH-180016

SCREW, 3/8-16 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-366112-R1

WASHER, 25/32 X 1-1/4 X 11 GA C-Z

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

15

Cub Cadet IH-475898-R1

KEY, 3/16 X 1-3/4 SQ PARALLEL

$

$

Not available
