60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Steering Mechanism Parts Diagram

Riding Mower

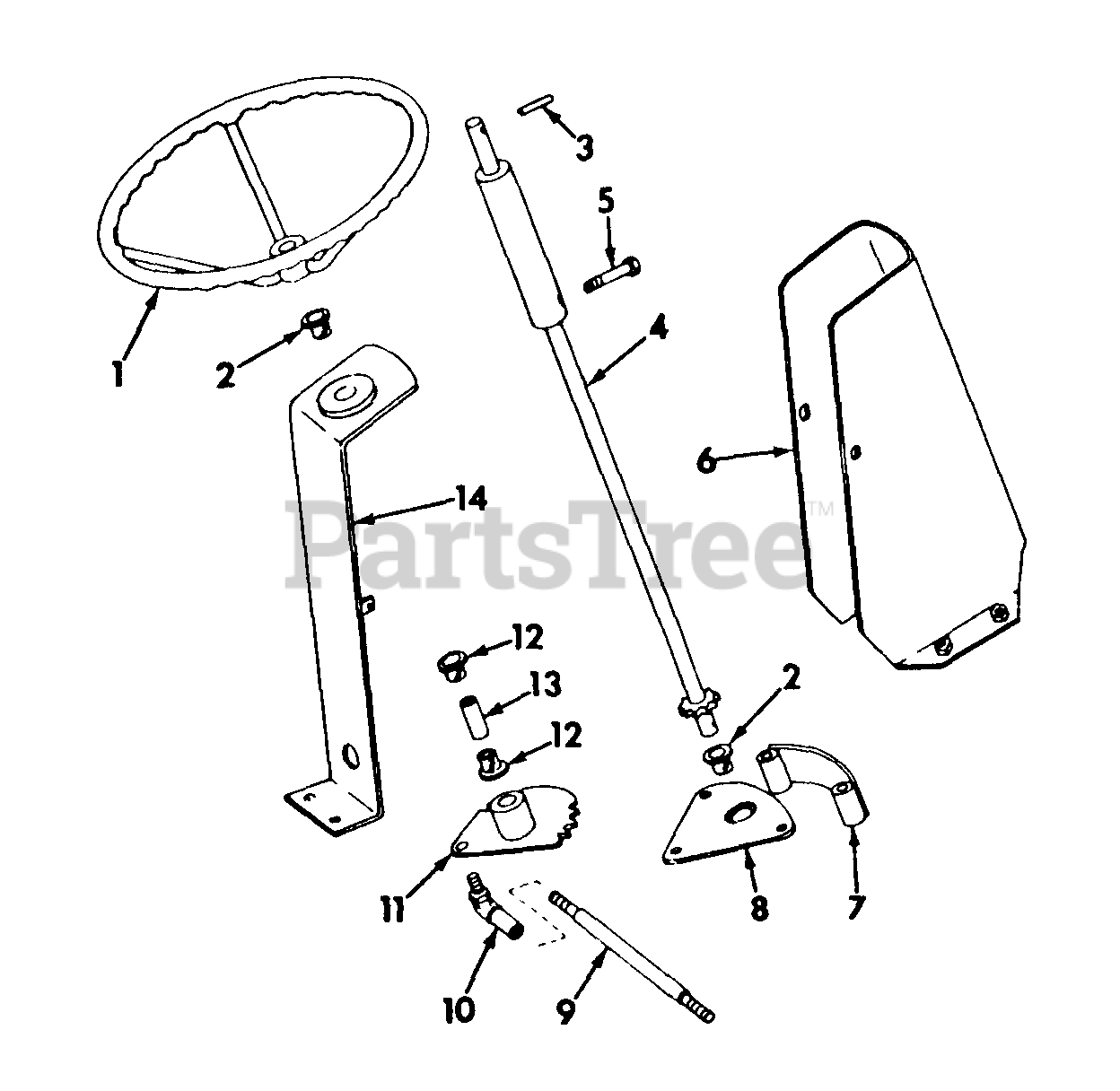

Steering Mechanism Parts Diagram

  • Title

1

Cub Cadet IH-488456-R1

WHEEL, STEERING

$

$

Not available

2

Cub Cadet IH-185062-R1

BEARING, STEERING SHAFT

$

$

Not available

3

Cub Cadet IH-23670-R1

PIN, 1/4 X 1-3/8 COILED SPRING
(Superseded to 915-3000)

$

$

Not available

4

Cub Cadet IH-489077-R1

SHAFT ASSY, STEERING

$

$

Currently unavailable

5

BOLT, STEERING SHAFT

Note: Not Available Seperately

$

$

Not available

Cub Cadet IH-411597-R1

NUT, 5/16-18 ZNP NYLON INSERT
(Superseded to 912-0429)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-16066-R1

WASHER, 25/32 X 1-1/2 X 16 GA
(Superseded to 936-0316)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-108635

PIN, 1/8 X 1-1/8 COT
(Superseded to 914-0470)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-488504-R1

SHROUD ASSY, STEERING SUPPORT

Note: FURNISH SHROUD IH-487984-R1

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-180014

SCREW, 1/4-20 X 3/8 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, 9/32 X 5/8 X .065 C-Z
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet IH-487984-R1

SHROUD ASSY, STEERING SUPPORT

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 ZND MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, 9/32 X 5/8 X .065 C-Z
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet IH-487987-R1

COVER ASSY, FRONT STEERING GEAR

$

$

Currently unavailable

Cub Cadet IH-179827

SCREW, 5/16-18 X 2-1/4 HEX-HD CAP

$

$

Currently unavailable

8

Cub Cadet IH-487973-R1

COVER ASSY, STEERING GEAR

$

$

Not available

9

Cub Cadet IH-487985-R1

STUD, DRAG LINK ROD

$

$

Not available

Cub Cadet IH-114494

NUT, 3/8-24 HEX. JAM
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet IH-392594-R1

JOINT, TIE ROD
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413243

NUT, 3/8-24 HEX. LOCK

$

$

Currently unavailable

11

Cub Cadet IH-487976-R4

GEAR ASSY, STEERING DRAG LINK
(Superseded to 703-0462)

$

$

Not available

Cub Cadet IH-541293-R1

BOLT, STEERING GEAR MOUNTING

$

$

Not available

12

Cub Cadet IH-307920-R1

BEARING, STEERING GEAR
(Superseded to 731-3015)

$

$

Not available

13

Cub Cadet IH-487979-R1

BUSHING, STEERING GEAR DRAG LINK
(Superseded to 911-3056)

$

$

Not available

14

Cub Cadet IH-487980-R1

SUPPORT ASSY, STEERING

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available
