600 (990230) - Simplicity Wonderboy Rear-Engine Riding Mower FRONT AXLE AND FRONT SUPPORT-MODEL 600 Parts Diagram

Wonderboy Rear-Engine Riding Mower

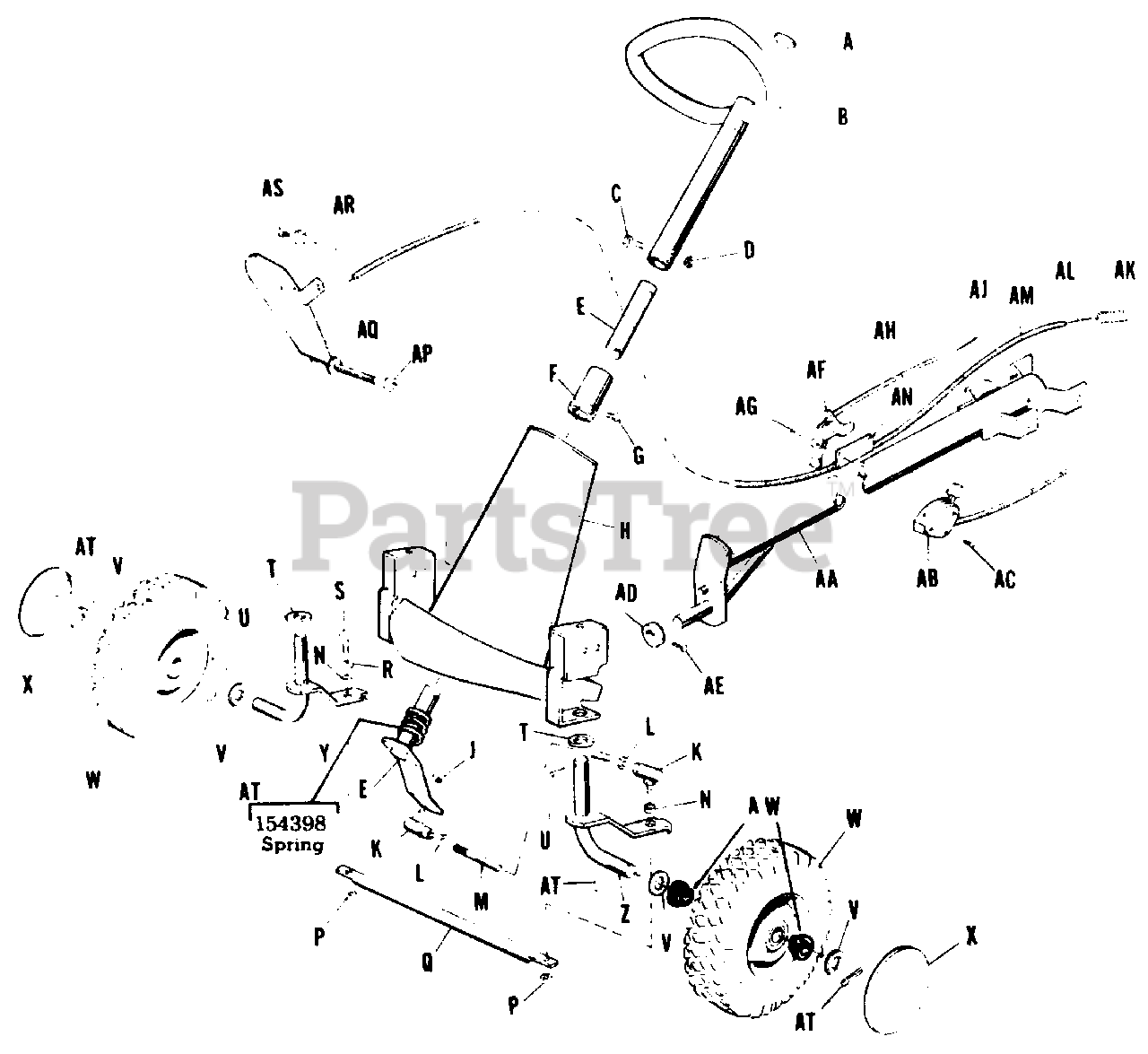

FRONT AXLE AND FRONT SUPPORT-MODEL 600 Parts Diagram

  • Title

A

Simplicity 121342

Button, Plug

$

$

Not available

B

Simplicity 121325

Handle, Steering

$

$

Not available

C

Simplicity 2705018

Capscrew, Hex Hd., 5/16 x 1 1/2

$

$

Not available

D

Simplicity 2717511

Nut, Hex, Full, 5/16-18 NC

$

$

Not available

E

Simplicity 121337

Arm Assembly, Steering

$

$

Not available

F

Simplicity 121340

Collar & Tube Assembly

$

$

Not available

G

Simplicity 2713006

Set Screw, S. Hd., Cup Pt. 5/16 x 1/2

$

$

Not available

H

Simplicity 121328

Support, Steer Rod, Sub Assembly

$

$

Not available

J

Simplicity 2717515

Nut, Lock, Full Hex 3/8-24

$

$

Not available

K

Simplicity 121127

Ball Joint

$

$

Not available

L

Simplicity 717010

Nut, Hex Full, 3/8-24

$

$

Not available

M

Simplicity 121350

Rod, Tie

$

$

Not available

N

Simplicity 2121349

Spacer

$

$

Not available

P

Simplicity 2717510

Nut, Lock, Full Hex, 3/8-16

$

$

Not available

Q

Simplicity 121348

Link Drag

$

$

Not available

R

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

S

Simplicity 2705005

Capscrew, Hex Hd., 3/8 x 1

$

$

Not available

T

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

U

Simplicity 2722003

Cotter Pin

$

$

Not available

V

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

W

Simplicity 121204

Wheel & Tire Assembly

$

$

Not available

X

Simplicity 121205

Hub Cap, Front

$

$

Not available

Y

Simplicity 121397

Spindle Assembly, R.H.

$

$

Not available

Z

Simplicity 121396

Spindle Assembly, L.H.

$

$

Not available

AA

Simplicity 121351

Frame Assembly, Front

$

$

Not available

AB

Simplicity 121293

Throttle Control Assembly

$

$

Not available

AC

Simplicity 714010

Screw, Selt Tapping, 10-24 x 1/2

$

$

Not available

AD

Simplicity 8021028

Collar, Set

$

$

Not available

AE

Simplicity 2713504

Set Screw, Socket Hd., 5/16 x 3/8

$

$

Not available

AF

Simplicity 8061087

Lever Assembly

$

$

Not available

AG

Simplicity 714005

Screw, Self Tapping, #10-24 x 1/2

$

$

Not available

AH

Simplicity 121277

Choke Cable

$

$

Not available

AJ

Simplicity 121278

Choke Wire

$

$

Not available

AK

Simplicity 121367

Spring

$

$

Not available

AL

Simplicity 121365

Clutch Wire

$

$

Not available

AM

Simplicity 121366

Clutch Wire Cable

$

$

Not available

AN

Simplicity 121368

Cable Clamp

$

$

Not available

AP

Simplicity 2717510

Lock Nut, Full Hex, 3/8-16

$

$

Not available

AQ

Simplicity 121360

Foot Pedal Assembly

$

$

Not available

AR

Simplicity 121364

Clutch Wire Pivot

$

$

Not available

AS

Simplicity 2713001

Set Screw, Sq. Hd., 1/4-20 x 3/8

$

$

Not available

AT

Simplicity 2722003

Cotter Pin

$

$

Not available

AW

Simplicity 121284

Bearing

$

$

Not available
