600 C (601100023) - Husqvarna Walk-Behind Mower (2001-06) WHEELS & TIRES Parts Diagram

Walk-Behind Mower

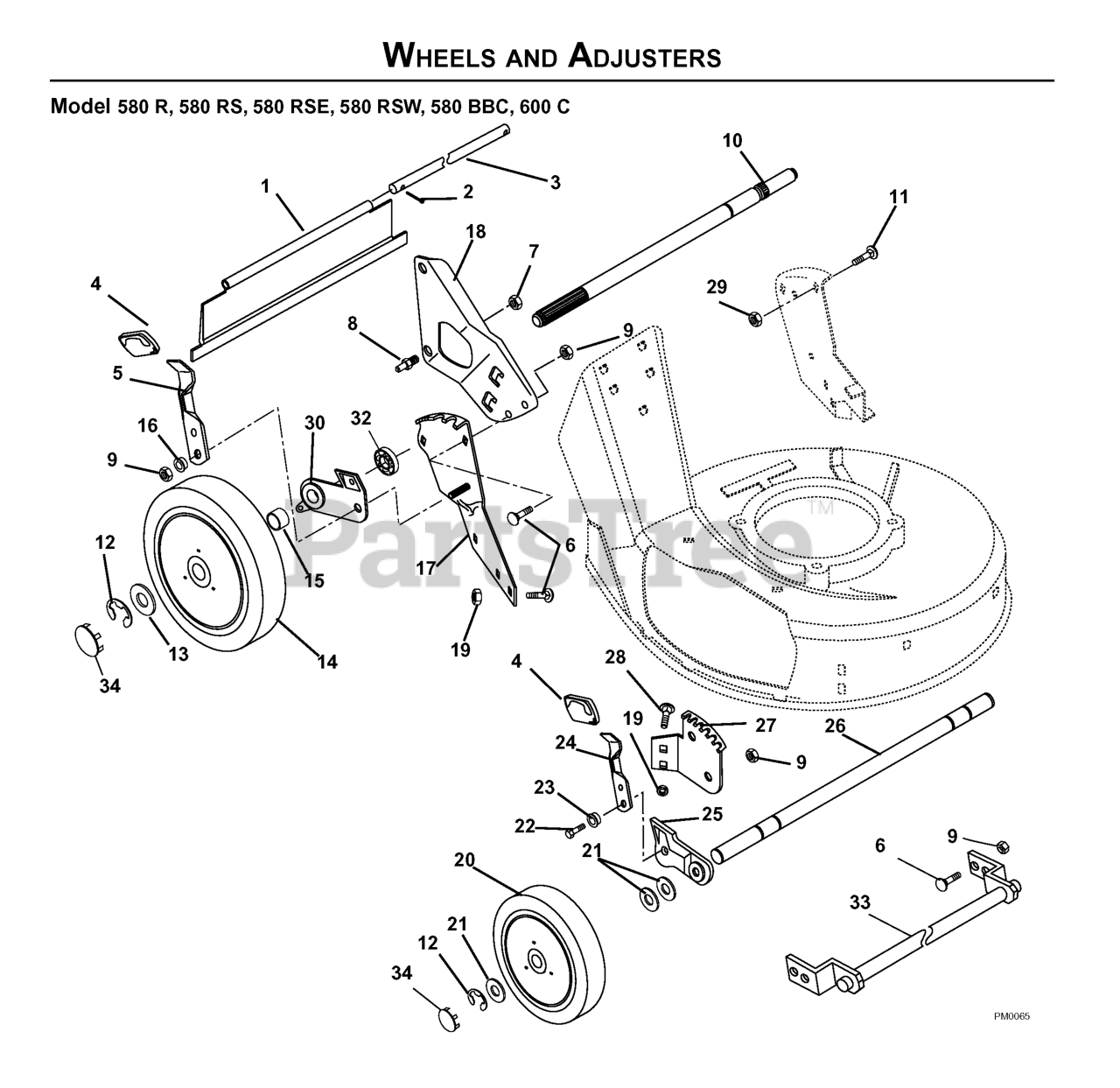

WHEELS & TIRES Parts Diagram

  • Title

31

Husqvarna 606000130

WASHER-FLT STL .505X.880X.072

$

$

Not available

10

Husqvarna 606000109

REAR AXLE.

$

$

Not available

5

Husqvarna 606000104

HEIGHT ADJUSTMENT LEVER.

$

$

Not available

23

Husqvarna 606000123

BSHNG FLNG .312X.500X.344X.880

$

$

Not available

25

Husqvarna 606000101

LEFT-HAND BRACKET ASSEMBLY

$

$

Not available

14

Husqvarna 606000278

L.H. DRIVE WHEEL
(Superseded to 606000331)

$

$

Not available

606 00 01 02

Husqvarna 606000102

RIGHT HAND BRACKET ASSEMBLY

$

$

Not available

606 00 01 25

Husqvarna 606000125

RING-RETAINING-EXTNL .500X.042

$

$

Not available

26

Husqvarna 606000120

Front Axle (580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

12

Husqvarna 606000125

RING-RETAINING-EXTNL .500X.042

$

$

Not available

606 00 00 50

Husqvarna 606000050

NUT-LOCKING-CENTER .31-18
(Superseded to 606000243)

$3.49

$

Usually ships in 3-10 days

0

606 00 03 15

Husqvarna 606000315

Rear Protective Guard, Push (580 R)

$

$

Not available

15

Husqvarna 606000110

SPACER TUBE

$

$

Not available

24

Husqvarna 606000103

LEVER, FRONT HEIGHT ADJUSTMENT

$

$

Not available

28

Husqvarna 606000082

Bolt-Round Head Square Neck .31-18 x .50 Grade 5 (580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

7

Husqvarna 606000048

Nut-Locking-Center .38-16 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

2

Husqvarna 606000051

Pin-Cotter .06 x .50 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

606 00 02 79

Husqvarna 606000279

R.H. DRIVE WHEEL
(Superseded to 606000331)

$

$

Not available

19

Husqvarna 606000136

Nut-Locking-Flanged .31-18 (580 R, 580 RS, 580 RSE, 580 BBC, 600 C)

$

$

Not available

606 00 01 13

Husqvarna 606000113

FRONT QUADRANT- RIGHT HAND

$

$

Not available

606 00 01 11

Husqvarna 606000111

REAR BRCKT & BEARING ASSEMBLY

$

$

Not available

606 00 01 15

Husqvarna 606000115

REAR QUADRANT RIGHT HAND

$

$

Not available

6

Husqvarna 606000127

BOLT RD HD SQ NECK .31-18X.62

$

$

Not available

8

Husqvarna 606000119

HANDLEBAR STUD

$

$

Not available

606 00 01 17

Husqvarna 606000117

REAR ADJUSTER BRACKET-RT HAND

$

$

Not available

27

Husqvarna 606000112

FRONT QUADRANT- LEFT HAND

$

$

Not available

606 00 01 41

Husqvarna 606000141

KNOB

$

$

Not available

29

Husqvarna 606000089

Nut-Locking-Nylon .312-18

$

$

Not available

606 00 01 27

Husqvarna 606000127

BOLT RD HD SQ NECK .31-18X.62

$

$

Not available

4

Husqvarna 606000141

KNOB

$

$

Not available

21

Husqvarna 606000132

WASHER-FLAT STL .520X.827X.062

$

$

Not available

30

Husqvarna 606000105

READ ADJUSTER BRACKET-LFT HND

$

$

Not available

34

Husqvarna 606000308

HUB CAP

$

$

Not available

1

Husqvarna 606000142

REAR PRTCTV GUARD, SELF PRPLLD

$

$

Not available

606 00 03 09

Husqvarna 606000309

Wheel, Push (580 R)

$

$

Not available

606 00 01 06

Husqvarna 606000106

HANDLEBAR-LEFT HAND

$

$

Not available

606 00 03 10

Husqvarna 606000310

Rear Axle Push Mower (580 R)

$

$

Not available

606 00 03 11

Husqvarna 606000311

Spacer Tube-Push Left Hand (580 R)

$

$

Not available

13

Husqvarna 606000130

WASHER-FLT STL .505X.880X.072

$

$

Not available

9

Husqvarna 606000050

NUT-LOCKING-CENTER .31-18
(Superseded to 606000243)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 606000108

ROD

$

$

Not available

17

Husqvarna 606000114

REAR QUADRANT LEFT HAND

$

$

Not available

18

Husqvarna 606000107

BRKT - HANDLEBAR - RH

$

$

Not available

606 00 03 12

Husqvarna 606000312

Spacer Tube-Push Right Hand (580 R)

$

$

Not available

22

Husqvarna 606000126

BOLT-HEX .31-18X1.00 GRADE 5

$

$

Not available

20

Husqvarna 606000277

IDLER WHEEL/7.5 X 1.75

$

$

Not available

33

Husqvarna 606000116

De-Thatcher Retainer Weldment (600 C)

$

$

Not available

16

Husqvarna 606000123

BSHNG FLNG .312X.500X.344X.880

$

$

Not available

32

Husqvarna 606000122

BEARING-BALL .625X1.382X.50

$

$

Not available

11

Husqvarna 606000128

BOLT RD HD SQ NECK .31-18X1.00

$

$

Not available
