600 CRT (954140070-C) - Husqvarna Rear-Tine Tiller (1999-09) Mainframe, Right Side Parts Diagram

Rear-Tine Tiller

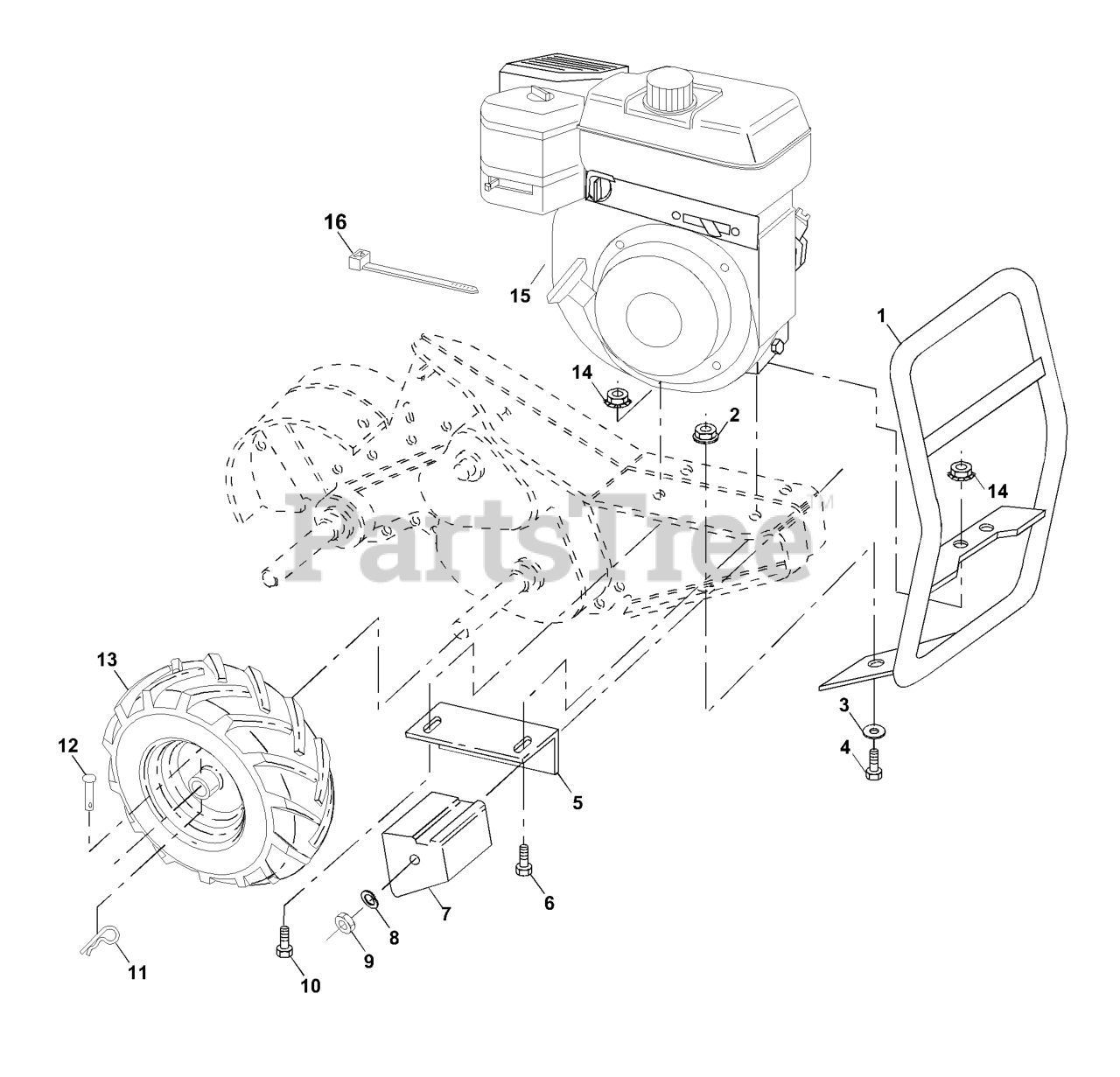

Mainframe, Right Side Parts Diagram

  • Title

1

Husqvarna 532166532

BUMPER
(Superseded to 583879301)

$

$

Not available

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532102332

DNO BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

6

Husqvarna 874760532

Bolt, Hex 5/16-18 x 2

$

$

Not available

7

Husqvarna 532102173

COUNTERWEIGHT, RH

$

$

Not available

8

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 874760524

BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 10

0

12

Husqvarna 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$53.99

$

In Stock, only 1 left!

0

13

Husqvarna 532124366

RIM
(Superseded to 532128952)

$

$

Not available

13

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$4.99

$

In Stock, Qty 15

0

14

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

15

Engine, Briggs & Stratton

Note: Model No. 121402

$

$

Not available

16

Husqvarna 532124756

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0
