600 SD - Jonsered Walk-Behind Mower (1998-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

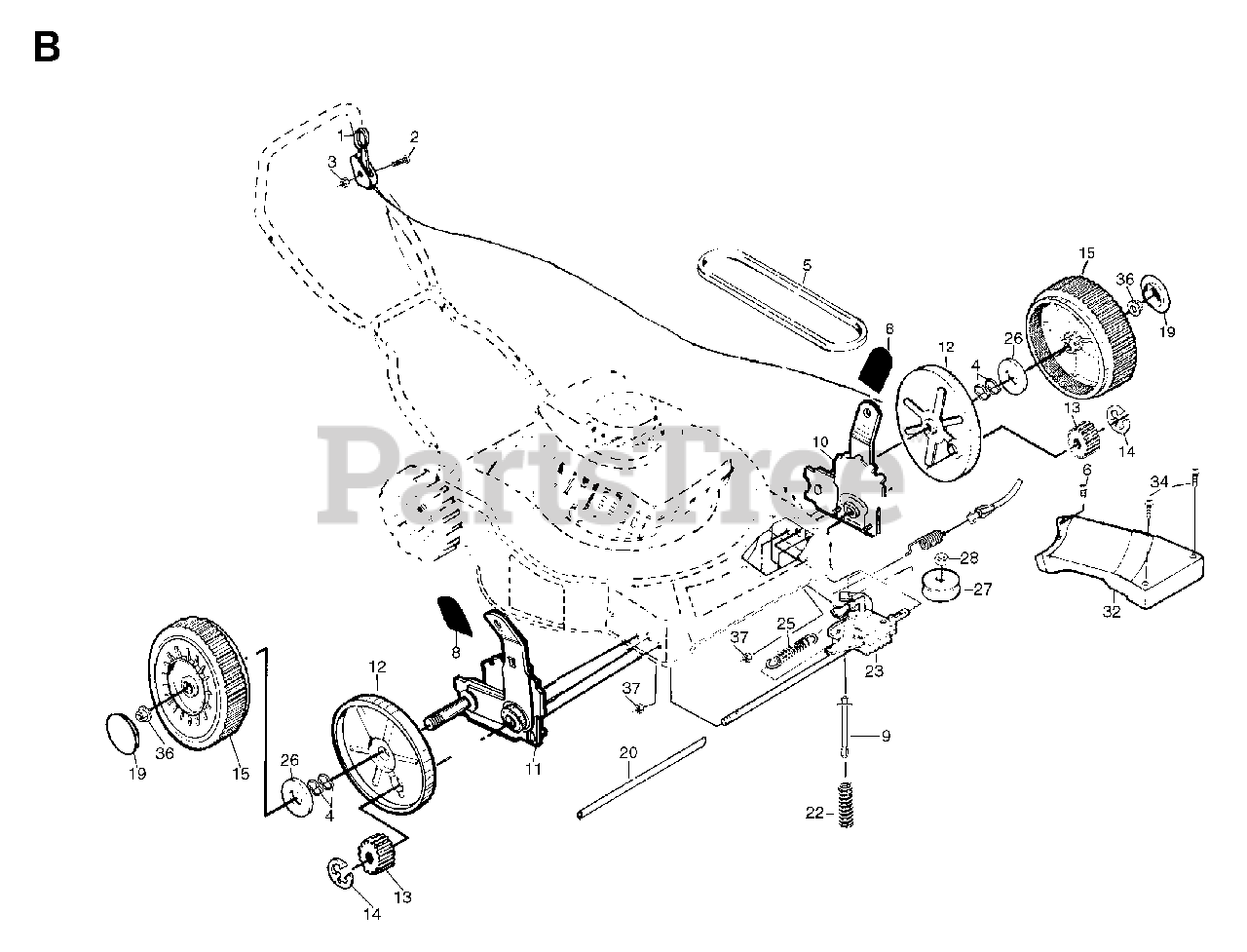

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

2

Jonsered 532140269

BRACKET
(Superseded to 532137055)

$3.99

$

Usually ships in 3-10 days

0

3

Jonsered 532137053

SHIFTER

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 532057072

SEAL

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 532048373

GEAR CASE

$

$

Not available

7

Jonsered 532077881

BEARING

$30.99

$

In Stock, only 1 left!

0

8

Jonsered 532137051

WORM SHAFT
(Superseded to 532183863)

$

$

Not available

9

Jonsered 532137074

DRIVE SHAFT, 20-5/8"
(Superseded to 137074)

$

$

Not available

--

Jonsered 532137077

DRIVE SHAFT, 21-1/16"

$

$

Not available

10

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 20+

0

11

Jonsered 532131484

YOKE CLUTCH

$

$

Not available

12

Jonsered 532700343

BUSHING

$

$

Not available

13

Jonsered 532086447

PLUG PM

$

$

Not available

14

Jonsered 532137050

GEAR.HELICAL

$46.99

$

Usually ships in 3-10 days

0

15

Jonsered 532750436

CLUTCH JAW

$

$

Not available

16

Jonsered 532750369

GREASE
(Superseded to 532750355)

$

$

Not available

17

Jonsered 812000003

E-RING

$

$

Not available

18

Jonsered 532850848

HI PRO KEY

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 532125441

BRACKET SPRING

$

$

Not available
