60000 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) CHAINCASE (CONT.) Parts Diagram

Front-Tine Mini-Tiller

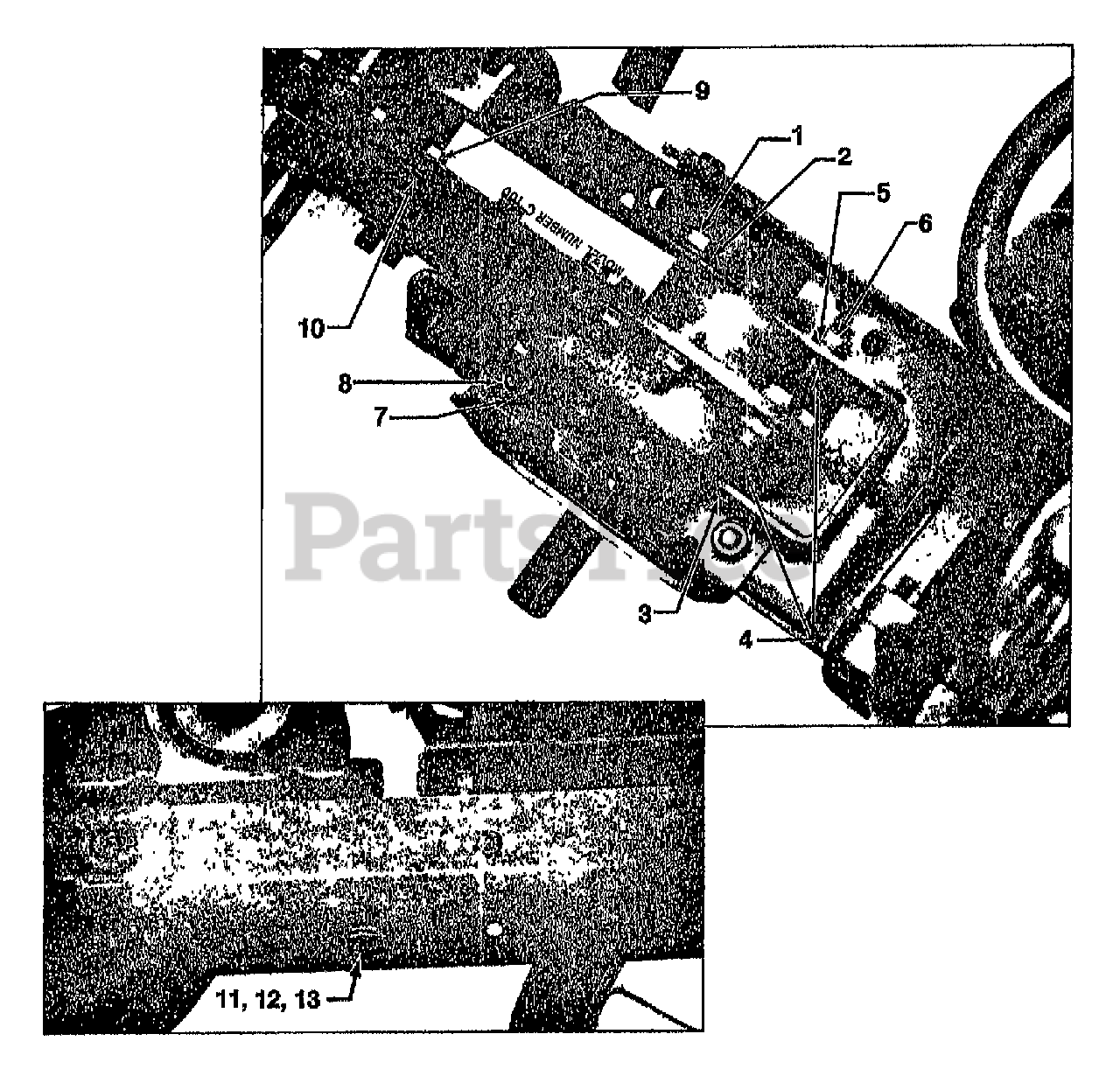

CHAINCASE (CONT.) Parts Diagram

  • Title

1

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 18

0

2

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 9590

SCR-HH 1/4-20X3.0 G5 ZP

$

$

Currently unavailable

4

Troy-Bilt 9040

SPACER-.438X.281X.960

$

$

Currently unavailable

5

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

6

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186309

SCR-HH 1/4-20X.625 (AROUND PERIMETER OF CHAIN CASE)

$

$

Not available

10

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP (AROUND PERIMETER OF CHAIN CASE)

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0
