60000 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) ENGINE ASSEMBLY Parts Diagram

Front-Tine Mini-Tiller

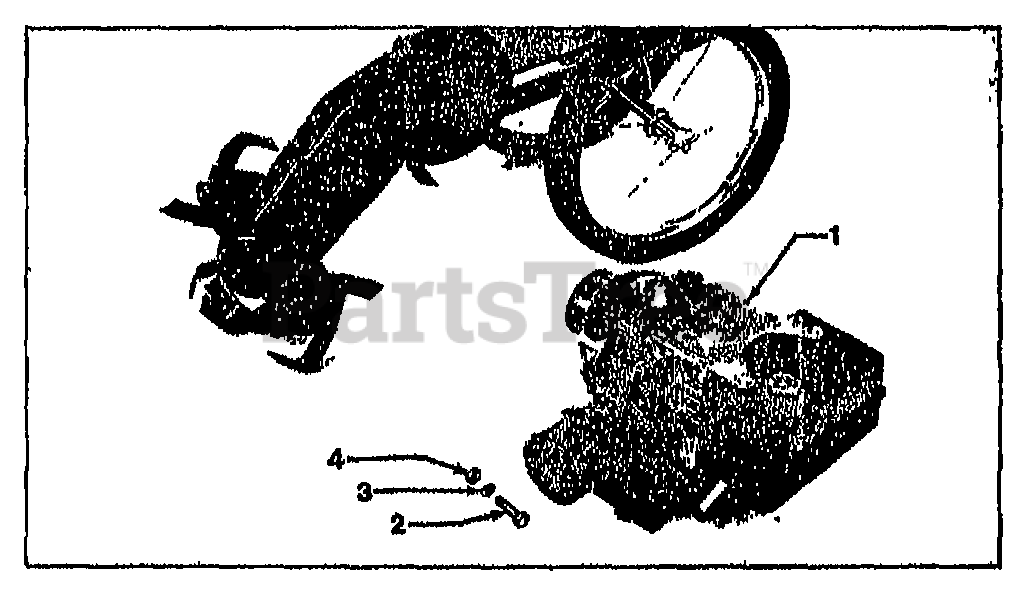

ENGINE ASSEMBLY Parts Diagram

  • Title

1

0

ENGINE, TECUMSEH H30 3HP

$

$

Not available

2

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP (MOUNTS ENGINE TO CHASSIS)

$

$

Not available

3

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
