60024 PC (31AM62K2897) - Columbia 24" Snow Thrower (2010) Drive Assembly Parts Diagram

24" Snow Thrower

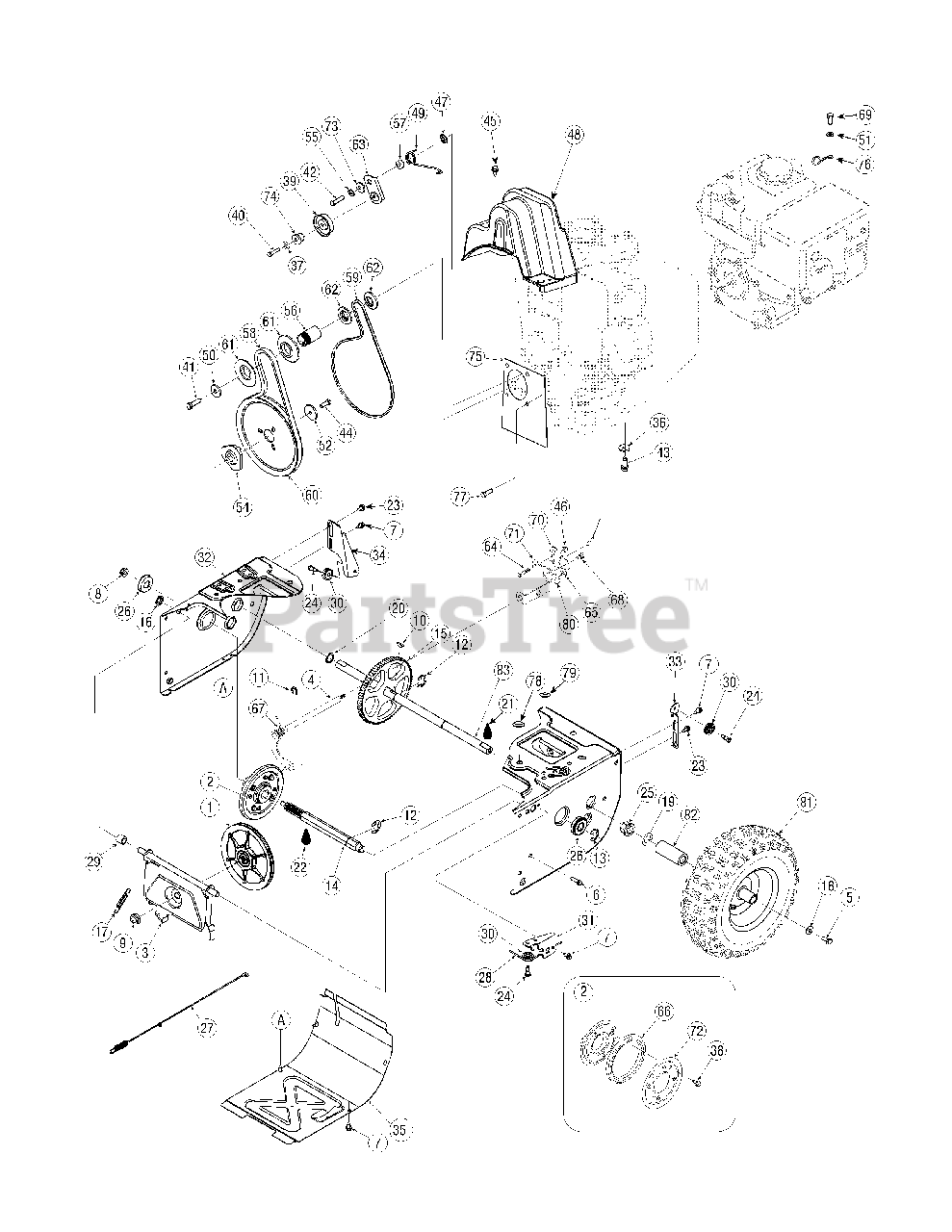

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$55.99

$

In Stock, only 2 left!

0

2

White Outdoor 684-04153

Friction Wheel Ass’y, Bearing 5.5 OD
(Superseded to 684-04153C)

$94.99

$

In Stock, Qty 8

0

3

White Outdoor 684-04154B

Friction Wheel Support Brkt Ass’y

Variations

White Outdoor 684-04154B-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

4

White Outdoor 684-04156A

Shift Rod Ass’y

$57.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0788

Hex Bolt 1/4-20 x 1.00

$6.99

$

In Stock, only 4 left!

0

7

White Outdoor 710-1652

Hex Wash Hd TT Screw 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0417A

Jam L-Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

10

White Outdoor 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 916-0104

Retaining Ring

$3.99

$

In Stock, Qty 18

0

12

White Outdoor 716-0136

Retainer Ring

$8.49

$

In Stock, Qty 9

0

13

White Outdoor 916-0231

"E" Ring
(Superseded to 716-0231)

$

$

Not available

14

White Outdoor 917-04209A

Hex Shaft .8125 - 7 tooth
(Superseded to 917-04209B)

$133.99

$

In Stock, only 1 left!

0

15

White Outdoor 917-04230

Gear - 80 Tooth

$100.99

$

Usually ships in 3-6 days

0

16

White Outdoor 726-0221

Cap Speed Nut 1/4 Rod

$5.99

$

In Stock, only 2 left!

0

17

White Outdoor 932-0264

Extension Spring 3/8 OD x 2.50

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 936-0287

Flat Washer .79 ID x 1.25 OD x .06
(Superseded to 736-0287)

$

$

Not available

20

White Outdoor 736-04161

Flat Washer .75 x 1.00 x .06

$6.49

$

In Stock, only 2 left!

0

21

N/A

Grease

$

$

Not available

22

N/A

Rust Preventative Oil

$

$

Not available

23

White Outdoor 738-04184A

Shoulder Screw .373 x .105:TT 1/4-20

$6.49

$

In Stock, Qty 20+

0

24

White Outdoor 738-0924A

Hex Shld.Screw1/4-28 x .375

$6.49

$

In Stock, Qty 6

0

25

White Outdoor 941-0245

Hex. Flange Bearing.751" ID

$9.49

$

In Stock, Qty 20+

0

26

White Outdoor 941-0563

Ball Bearing w/snap ring

$33.99

$

In Stock, Qty 20+

0

27

White Outdoor 746-04229

Drive Clutch Cable 44.83" Lg.
(Superseded to 946-04229B)

$20.99

$

In Stock, Qty 5

0

28

White Outdoor 746-04230

Auger Clutch Cable 47.23" Lg.
(Superseded to 946-04230B)

$21.99

$

In Stock, Qty 20+

0

29

White Outdoor 748-0190

Spacer .513 ID x 1.0

$5.99

$

In Stock, only 1 left!

0

30

White Outdoor 756-0625

Cable Guide Roller

$8.99

$

In Stock, Qty 20+

0

31

White Outdoor 790-00096-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$8.99

$

In Stock, only 1 left!

0

32

White Outdoor 790-00180A-0637

Frame
(Superseded to 790-00180D-0637)

$149.99

$

Usually ships in 3-6 days

0

33

White Outdoor 790-00206A-0637

Guide Bracket - Auger Cable
(Superseded to 790-00206B)

$7.99

$

In Stock, only 1 left!

0

34

White Outdoor 790-00207B

Guide Bracket - Drive Cable
(Superseded to 790-00207D)

$10.99

$

In Stock, only 4 left!

0

35

White Outdoor 790-00316-0606

Frame Cover

$44.99

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0320

Flat Washer .38 x 1.38 x .125 (Rear left hole)

$6.49

$

In Stock, Qty 9

0

37

White Outdoor 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 13

0

38

White Outdoor 710-0896

Hex Wash. Hd. TT Screw 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 684-04169

Idler Pulley Assembly 1.917 OD

$31.99

$

Usually ships in 3-6 days

0

40

White Outdoor 710-0809

Hex Screw 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

41

White Outdoor 710-0191

Hex Screw 3/8-24 x 1.25

$4.49

$

In Stock, Qty 8

0

42

White Outdoor 710-0672

Hex Hd Cap Screw 5/16-24 x 1.25 Gr. 5

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$3.99

$

In Stock, only 4 left!

0

44

White Outdoor 710-1245B

Hex Bolt 5/16-24 x 0.875

$7.99

$

In Stock, only 4 left!

0

45

White Outdoor 710-1652

Hex Wash Hd TT Screw 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 926-04012

Push Nut
(Superseded to 726-04012)

$

$

Not available

48

White Outdoor 731-05353

Belt Cover (w/2 & 4 way chute control)
(Superseded to 731-05353B)

$

$

Not available

49

White Outdoor 732-04308A

Torsion Spring .850 ID x .354" Lg.
(Superseded to 732-04308C)

$4.99

$

In Stock, Qty 12

0

50

White Outdoor 736-0247

Flat Washer .40 ID x 1.25 OD x .160

$8.99

$

In Stock, Qty 20+

0

51

White Outdoor 936-0264

Flat Washer .330 ID x .630 OD x .0635

$6.49

$

In Stock, Qty 11

0

52

White Outdoor 736-0505

Flat Washer .34 x 1.50 x .150

$5.99

$

In Stock, Qty 6

0

53

N/A

Grease:Arc tic:EP NLGI 1-58F

$

$

Not available

54

White Outdoor 748-04053A

Pulley Adapter

$20.99

$

In Stock, only 1 left!

0

55

White Outdoor 936-0119

Lockwasher 5/16

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 750-04303

Spacer .875 ID x 1.185 OD

$16.99

$

In Stock, only 1 left!

0

57

White Outdoor 750-04477A

Spacer .340 x .750 x .360" Lg.

$4.99

$

In Stock, Qty 6

0

58

White Outdoor 954-04050

Belt .5 x 35.0" Lg.
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

59

White Outdoor 954-04260

Belt 3/8 x 34.4" Lg.

$28.99

$

In Stock, Qty 10

0

60

White Outdoor 756-04109

Auger Pulley

$50.99

$

In Stock, only 3 left!

0

61

White Outdoor 756-04113

Pulley Half

$12.99

$

In Stock, only 4 left!

0

62

White Outdoor 756-04252

Pulley Half 3/8 V x 1.71 OD

$5.99

$

In Stock, only 3 left!

0

63

White Outdoor 790-00208C

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.49

$

In Stock, only 2 left!

0

64

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

65

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$37.99

$

In Stock, Qty 9

0

67

White Outdoor 732-04311

Torsion Spring .750 ID x .968" Lg.
(Superseded to 732-04311A)

$9.99

$

In Stock, only 1 left!

0

68

White Outdoor 738-04184A

Shoulder Screw .373 x .105:TT 1/4-20

$6.49

$

In Stock, Qty 20+

0

69

MTD 710-04022

Hex. Hd. Cap Screw M8-1.25:20 Gr. 8
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

70

White Outdoor 790-00217A-0637

Pivot Bracket
(Superseded to 790P01117)

$49.99

$

In Stock, only 1 left!

0

71

White Outdoor 790-00218A-0637

Shift Bracket
(Superseded to 790-00218A)

$44.99

$

In Stock, only 1 left!

0

72

White Outdoor 790-00174

Friction Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

73

White Outdoor 748-04112B

Shld. Spacer .3175 x .5 x .1025

$3.99

$

In Stock, only 1 left!

0

74

White Outdoor 750-04571

Spacer

$6.49

$

In Stock, Qty 6

0

75

White Outdoor 790-00289A-0637

Cover Plate (Optional)
(Superseded to 790-00289B-0637)

$24.99

$

Usually ships in 3-6 days

0

76

White Outdoor 732-04677

Cable control Wire

$8.49

$

Usually ships in 3-6 days

0

77

White Outdoor 738-04439

Shoulder Screw .50 x .145: 5/16-24

$3.99

$

In Stock, Qty 7

0

78

White Outdoor 735-04100

Plug 1/2"

$5.99

$

Usually ships in 3-6 days

0

79

White Outdoor 735-04099

Plug 3/8"

$5.49

$

Usually ships in 3-6 days

0

80

White Outdoor 936-3015

Flat Washer .469 x .875 x .105

$3.99

$

In Stock, Qty 5

0

81

White Outdoor 634-04144A-0911

Wheel Assy

$178.99

$

Usually ships in 3-6 days

0

81

White Outdoor 734-1732-0901

Tire

$139.99

$

Usually ships in 3-6 days

0

81

White Outdoor 634-04172A-0662

Rim

$50.99

$

Usually ships in 3-6 days

0

82

White Outdoor 731-04877

Spacer

$3.99

$

Usually ships in 3-6 days

0

83

White Outdoor 938-04181

Axle

$53.99

$

Usually ships in 3-6 days

0
