60024 PC (31AM63K2897) - Columbia 24" Snow Thrower (2011) Chute Control 4 Way Parts Diagram

24" Snow Thrower

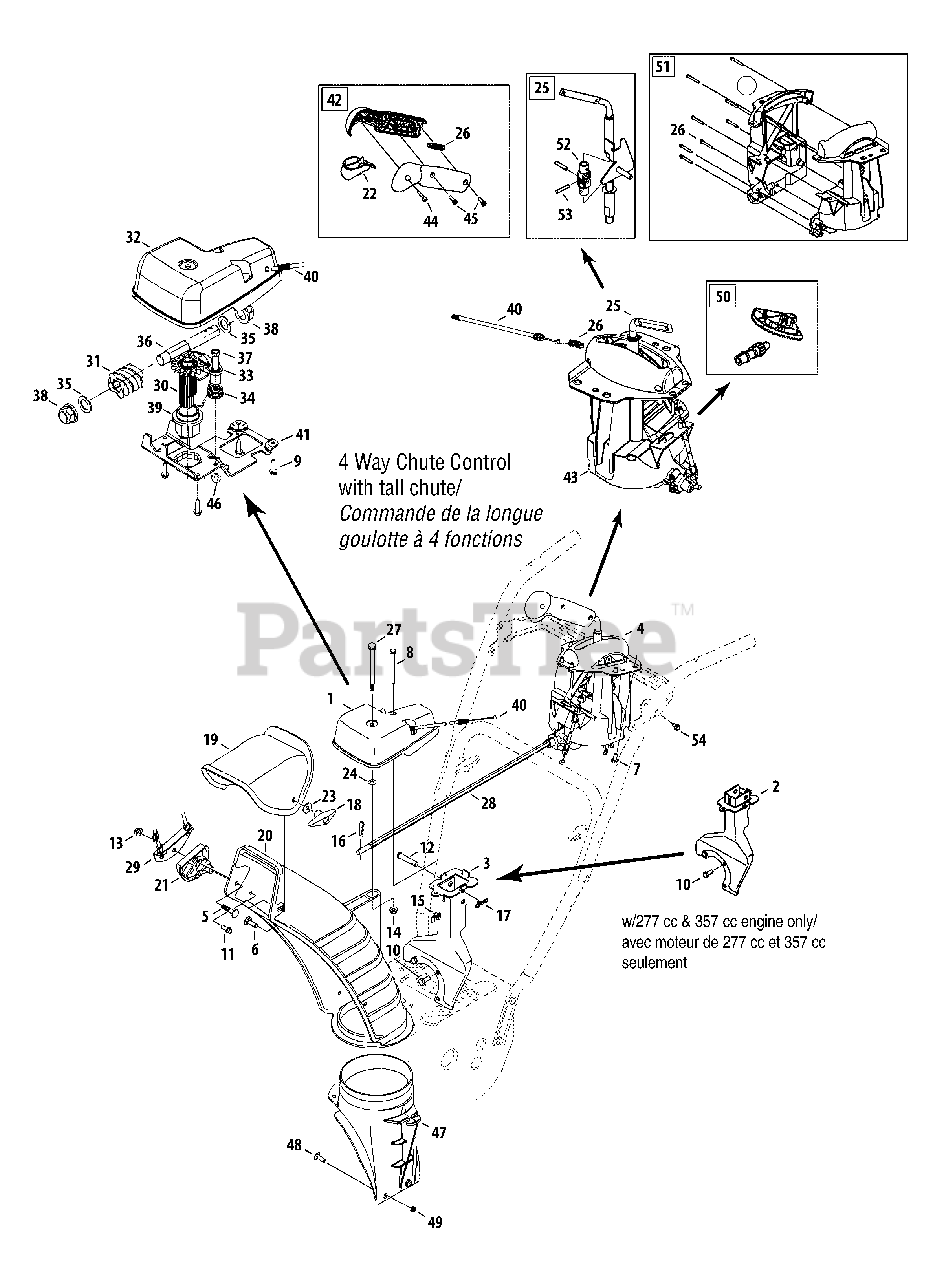

Chute Control 4 Way Parts Diagram

  • Title

1

White Outdoor 918-04801A

Gearbox Assembly (4-way)
(Superseded to 918-04801B)

$119.99

$

In Stock, only 4 left!

0

2

White Outdoor 684-04310A-0637

Chute Sup. Bkt. Ass'y
(Superseded to 684-04310B-0637)

Note: (w/277 cc & 357 cc engine only)

$37.99

$

Usually ships in 3-6 days

0

3

White Outdoor 684-04311A-0637

Chute Support Bracket Ass'y

$39.99

$

Usually ships in 3-6 days

0

4

White Outdoor 984-04338A

4 Way Chute Control Assembly

$202.99

$

In Stock, only 1 left!

0

5

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr. 2

$3.99

$

In Stock, Qty 14

0

6

White Outdoor 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

7

White Outdoor 710-04187

Hi-Lo Screw 1/4-15 x .5
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

8

White Outdoor 710-04370

Hex. Hd. Cap Scr. 1/4-20 x 3.0 Gr. 5

$3.99

$

In Stock, only 1 left!

0

9

White Outdoor 710-04373A

Hi-Lo Screw #12-16 x .75

$4.49

$

In Stock, Qty 15

0

10

White Outdoor 710-0627

Hex Hd. Cap Screw 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$5.99

$

In Stock, Qty 20+

0

12

White Outdoor 711-04469A

Clevis Pin 3/8 x 1.87

$5.49

$

In Stock, Qty 8

0

13

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-3087

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

17

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

18

White Outdoor 920-0284

Handle Knob Assembly
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

19

White Outdoor 931-04425B

Upper Chute w/Export Label, Remote

$21.99

$

Usually ships in 3-6 days

0

20

White Outdoor 731-06440A

Lower Chute

$48.99

$

In Stock, Qty 20+

0

21

White Outdoor 731-06451

Cable Guide

$4.99

$

In Stock, only 1 left!

0

22

White Outdoor 731-07031

Joystick lever trigger

$6.99

$

In Stock, only 1 left!

0

23

White Outdoor 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

24

White Outdoor 736-04446

Flat Washer .25 ID x .63 OD x .0515 HT.

$3.99

$

In Stock, Qty 6

0

25

White Outdoor 984-04324A

Shift Lever

$100.99

$

Usually ships in 3-6 days

0

26

White Outdoor 731-04893A

Plunger joystick

$5.99

$

In Stock, only 1 left!

0

27

White Outdoor 738-04367

Flg. Shoulder Screw .312 x 3.5: 1/4-20

$4.99

$

In Stock, only 1 left!

0

28

White Outdoor 747-05116

Chute Crank Rod

$28.99

$

In Stock, only 1 left!

0

29

White Outdoor 784-5594

Cable Bracket Chute Tilt

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

30

White Outdoor 717-04667

Gear 14 teeth helical w/hub
(Superseded to 717-04667B)

$9.99

$

In Stock, Qty 11

0

31

White Outdoor 717-04672

Worm Gear
(Superseded to 717-04672A)

$8.99

$

In Stock, Qty 5

0

32

White Outdoor 731-06906

Cover

$17.99

$

Usually ships in 3-6 days

0

33

White Outdoor 731-06943

Lock Pawl (4 way)
(Superseded to 731-06943A)

$4.49

$

In Stock, Qty 9

0

34

White Outdoor 732-04638B

Torsion Spring LH .72 ID x .474
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

35

White Outdoor 736-0290

Flat Washer .625 x 1.0 x .067

$6.49

$

In Stock, Qty 20+

0

36

White Outdoor 711-05186

Hex Shaft .625 Worm Drive

$9.99

$

In Stock, only 4 left!

0

37

White Outdoor 738-04391

Shoulder Screw .340 x .950: 1/4-28

$5.49

$

In Stock, only 3 left!

0

38

White Outdoor 941-0225

Hex Flg. Bearing

$6.99

$

In Stock, Qty 20+

0

39

White Outdoor 741-04388

Flg. Brg. 1.0" ID
(Superseded to 741-04388A)

$6.99

$

In Stock, only 1 left!

0

40

White Outdoor 946-04619A

Trigger Lock Cable
(Superseded to 946-04619B)

$32.99

$

In Stock, only 1 left!

0

41

White Outdoor 790-00342B-0637

Chute Gear Rotation Bracket
(Superseded to 790-00342C-0637)

$26.99

$

Usually ships in 3-6 days

0

42

White Outdoor 753-06151

Handle Ass'y

$26.99

$

In Stock, only 2 left!

0

43

White Outdoor 984-04338A

Chute Control Ass'y (4 way)

$202.99

$

In Stock, only 1 left!

0

44

White Outdoor 710-04353

Screw #8: 1.0

$6.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-04879

Mach. Scr. #8-32 x .75

$3.49

$

Usually ships in 3-6 days

0

46

White Outdoor 712-0896

Hex Ins Jam L-Nut 1/4-28

$4.49

$

In Stock, Qty 6

0

47

White Outdoor 731-07525

Chute Adapter

$17.99

$

In Stock, Qty 7

0

48

White Outdoor 710-0703

Carriage Screw 1/4-20 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 753-06152

Gear Set Assembly

$23.99

$

In Stock, only 4 left!

0

51

White Outdoor 753-06153

Handle Housing Assembly

$79.99

$

In Stock, only 1 left!

0

52

White Outdoor 684-04350

JointBlock Assembly

$26.99

$

In Stock, only 4 left!

0

53

White Outdoor 715-04095

Pin

$4.99

$

In Stock, only 4 left!

0

54

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0
