60024 PC (31AM63K2897) - Columbia 24" Snow Thrower (2011) Handle Panel Parts Diagram

24" Snow Thrower

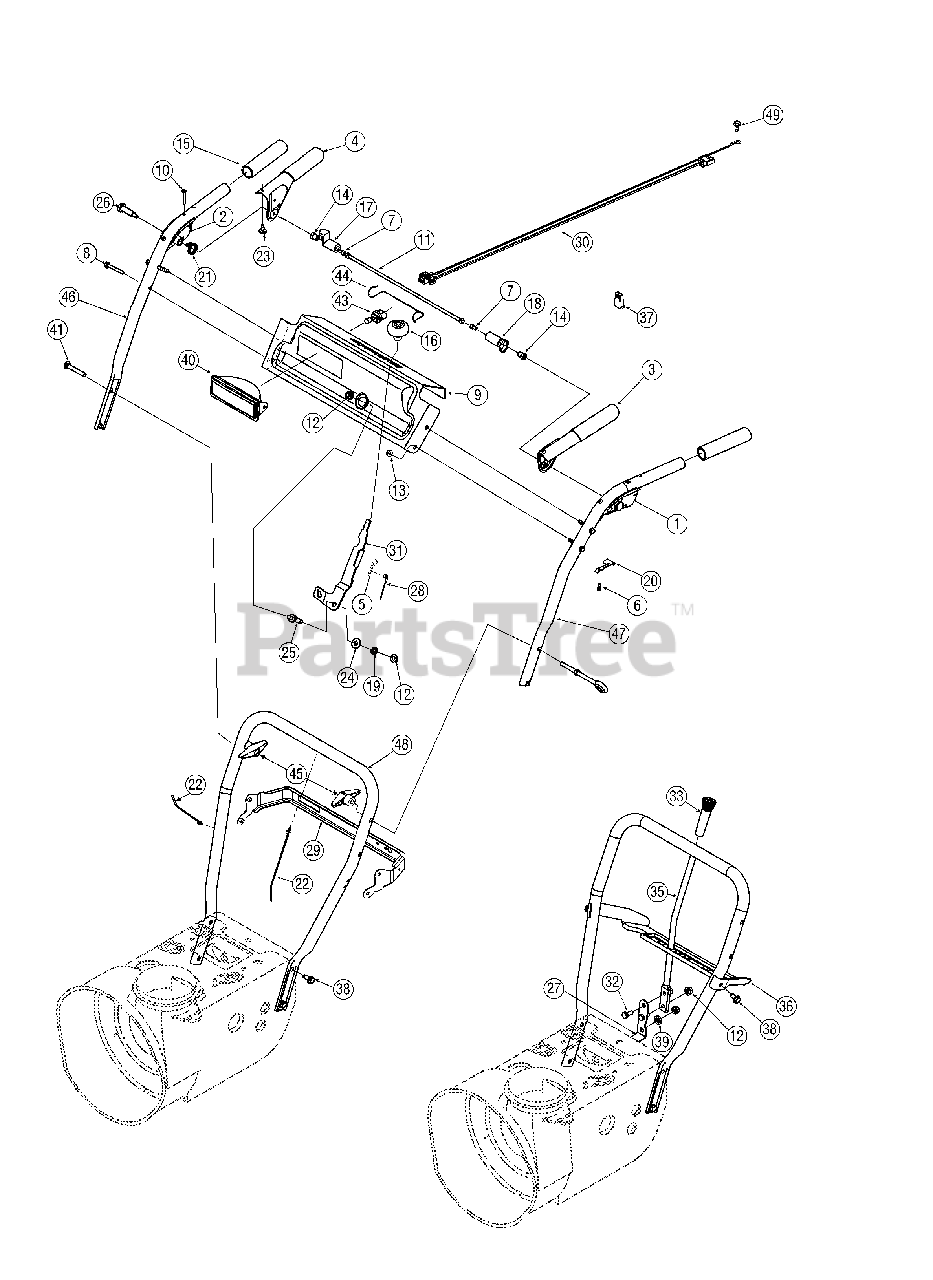

Handle Panel Parts Diagram

  • Title

1

White Outdoor 631-04133A

LH Clutch Lock Handle Ass’y

$14.99

$

Usually ships in 3-6 days

0

2

White Outdoor 631-04134B

RH Clutch Lock Handle Ass’y

$14.99

$

In Stock, only 3 left!

0

3

White Outdoor 684-04105B

Engagement Handle Assembly LH, Black
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

4

White Outdoor 684-04106B

Engagement Handle Assembly RH, Black
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

5

White Outdoor 914-0145

Cotter Pin
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-04326

Screw No. 8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

White Outdoor 710-3069

Screw, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 13

0

8

White Outdoor 710-0606

Hex TT Screw, 1/4-20 x 1.5

$4.99

$

In Stock, Qty 15

0

9

White Outdoor 790-00100

Handle Panel (w/o shift cut out & w/o light)

Variations

Cub Cadet 790-00100-4044

PANEL-HANDLE W/O S - CRAFTSMAN RED

$53.99

$

In Stock, only 1 left!

0

White Outdoor 790-00100-4044

PANEL-HANDLE - CRAFTSMAN RED

$53.99

$

In Stock, only 1 left!

0

White Outdoor 790-00100-0638

PANEL-HANDLE - MTD/TROY-BILT RED

$55.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00100-0665

PANEL-HANDLE - YARDMAN GREEN

$55.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00100-0674

PANEL-HANDLE - YARDMAN YELLOW

$55.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00100-0684

PANEL-HANDLE - ZINC YELLOW

$55.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00100-0691

PANEL-HANDLE - BLACK JACK

$64.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

9

White Outdoor 790-00219

Handle Panel (w/ shift cut out & w/o light)
(Superseded to 790-00219A)

Variations

White Outdoor 790-00219-0637

PANEL:HANDLE W/SHF - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00219-0691

PANEL:HANDLE W/SHF - BLACK JACK (0691)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00219-0709

PANEL:HANDLE W/SHF - MASTERCRAFT GREEN (0709)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00219-0721

PANEL:HANDLE W/SHF - SEARS RED (0721)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00219-4044

PANEL:HANDLE W/SHF - CRAFTSMAN RED (4044)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00219-0638

PANEL:HANDLE W/SHF - MTD/TROY-BILT RED (0638)

$

$

Not available

$58.99

$

Usually ships in 3-6 days

0

9

White Outdoor 790-00209

Handle Panel (w/ shift cut out & w/ light)
(Superseded to 790-00209A)

Variations

White Outdoor 790-00209-0637

PANEL:HANDLE:STEEL - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00209-0638

PANEL:HANDLE:STEEL - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00209-0667

PANEL:HANDLE:STEEL - MIDNIGHT BLUE (0667)

$51.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00209-0684

PANEL:HANDLE:STEEL - ZINC YELLOW (0684)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-1233

Oval C-Sunk Hd Screw 10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

12

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-04064

Flange Locknut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-04081A

Hex Nut 1/4-20

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 720-0274

Grip

$10.99

$

In Stock, Qty 8

0

16

White Outdoor 720-04039

Knob

$9.99

$

In Stock, Qty 5

0

17

White Outdoor 731-04894D

Lock Plate

$4.99

$

In Stock, only 4 left!

0

18

White Outdoor 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

19

White Outdoor 732-0193

Compression Spring .38 ID x .88 Lg

$4.49

$

In Stock, Qty 8

0

20

White Outdoor 732-04219C

Spring: Clutch Lock

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 732-04238

Torsion Spring .8156 x .3038
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

22

White Outdoor 926-0154

Cable Tie Push Mt.

$5.99

$

Usually ships in 3-6 days

0

23

White Outdoor 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

24

White Outdoor 736-0262

Flat Washer .38 ID x .87 OD x .09

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 738-04118

Shoulder Screw 1/4-20 x 1.345

$5.49

$

Usually ships in 3-6 days

0

26

White Outdoor 738-04348

Shoulder Screw .437 x 1.345:1/4-20

$3.49

$

In Stock, only 4 left!

0

27

White Outdoor 732-04205

Shift Lever Spring

$10.99

$

Usually ships in 3-6 days

0

28

White Outdoor 946-04397A

Selector Speed Cable

$19.99

$

In Stock, Qty 17

0

29

White Outdoor 790-00248B-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$22.99

$

In Stock, only 2 left!

0

30

White Outdoor 725-05153

Wiring Harness

$32.99

$

Usually ships in 3-6 days

0

31

White Outdoor 790-00313-0637

Shift Lever
(Superseded to 790-00313A-0637)

$45.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0376

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 17

0

33

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

35

White Outdoor 747-04243-0637

Shift Lever

$17.99

$

Usually ships in 3-6 days

0

36

White Outdoor 790-00187A

Selector Plate 6 Forward/2Rev

Variations

White Outdoor 790-00187A-0637

PANEL SELECT 5 SPEED - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00187A-0638

Select Panel, 5-Speed - MTD/TROY-BILT RED (0638)

$30.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00187A-0691

PANEL SELECT 5 SPEED - BLACK JACK (0691)

$30.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00187A-0721

PANEL SELECT 5 SPEED - SEARS RED (0721)

$33.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00187A-4044

PANEL SELECT 5 SPEED - CRAFTSMAN RED (4044)

$33.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00187A-0665

PANEL SELECT 5 SPEED - YARDMAN GREEN (0665)

$31.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00187A-0684

PANEL SELECT 5 SPEED - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 790-00187A-0729

PANEL SELECT 5 SPEED - STORM GRAY (0729)

$

$

Not available

$27.99

$

Usually ships in 3-6 days

0

37

White Outdoor 729-04035

Alternator Cap (models w/o light only)

$

$

Not available

38

White Outdoor 710-04484

Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0509

Flat Washer -Special

$6.49

$

In Stock, only 1 left!

0

40

White Outdoor 925-1672

Lens Assembly

$83.99

$

Usually ships in 3-6 days

0

41

White Outdoor 710-0572

Carriage Bolt 5/16-18 x 2.25

$3.99

$

In Stock, Qty 5

0

43

White Outdoor 925-1658

Lamp Halogen 12V, 27W

$55.99

$

In Stock, Qty 5

0

44

White Outdoor 747-1136

Lens Retainer

$10.99

$

Usually ships in 3-6 days

0

45

White Outdoor 920-0284

Handle Knob Assembly
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

46

White Outdoor 749-04190A-0637

Upper RH Handle - Black

$42.99

$

Usually ships in 3-6 days

0

47

White Outdoor 749-04191A-0637

Upper LH Handle - Black

$42.99

$

Usually ships in 3-6 days

0

48

White Outdoor 749-04138A-0637

Lower Handle - Black
(Superseded to 749-04138C-0637)

$82.99

$

Usually ships in 3-6 days

0

49

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0
