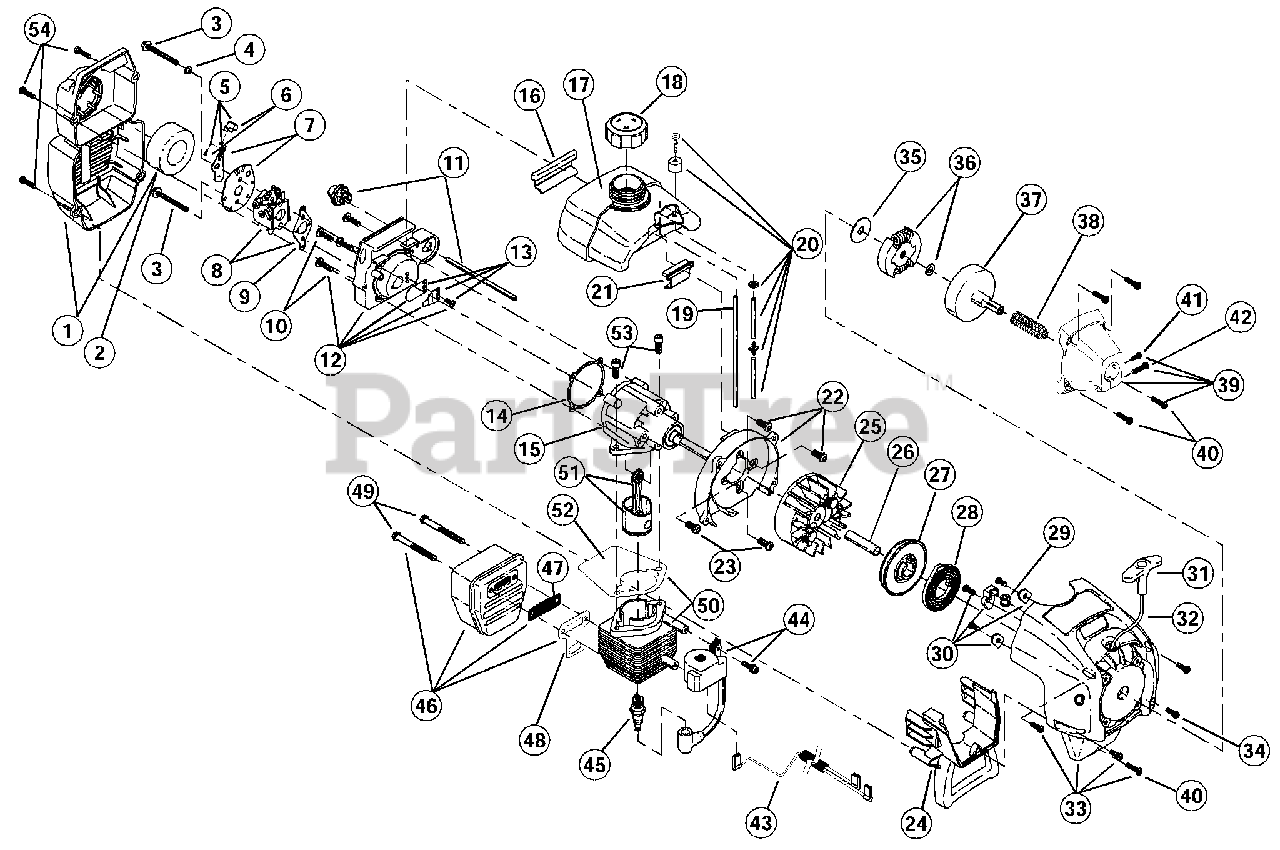

600r (41AN600G034) - Ryobi Walk-Behind Trimmer Engine Parts Parts Diagram

Walk-Behind Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 54)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182061

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182060

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5 & 6)

$

$

Not available

8

MTD 753-04106

Carburetor Assembly

Note: (includes 9 & 20)

$69.99

$

In Stock, only 3 left!

0

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Crankcase Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 753-04129

Crank Case Service Assembly

Note: (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-181438

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$18.99

$

In Stock, Qty 18

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

26

MTD 791-181065

Spacer

$

$

Not available

27

MTD 791-181597

Recoil Pulley Assembly
(Superseded to 753-04232)

$

$

Not available

28

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

31

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

32

MTD 753-04177

Rope

$

$

Not available

33

MTD 791-181443

Starter Housing Assembly

Note: (includes 27-32, 34 & 40)

$60.99

$

Usually ships in 3-6 days

0

34

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

36

MTD 791-181445

Clutch Rotor Assembly

$43.99

$

Usually ships in 3-6 days

0

37

MTD 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 15

0

38

MTD 791-612468

Spring

$

$

Not available

39

MTD 753-04235

Clutch Cover Assembly

Note: (includes 40-42)

$

$

Not available

40

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

41

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

42

MTD 791-181345

Clamping Screw

$3.99

$

In Stock, Qty 18

0

43

MTD 753-04179

Wire Leads and Sleeve

$

$

Not available

44

MTD 753-1205

Module Assembly

$96.99

$

Usually ships in 3-6 days

0

45

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

46

MTD 791-182174

Muffler Assembly

Note: (includes 47-49)

$82.99

$

Usually ships in 3-6 days

0

47

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

48

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

49

MTD 791-147575

Muffler Mounting Bolt

$

$

Not available

50

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 52)

$78.99

$

In Stock, only 1 left!

0

51

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

52

MTD 753-1197

Cylinder Gasket

$

$

Not available

53

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

54

MTD 791-181345

Screw

$3.99

$

In Stock, Qty 18

0

MTD 753-04134

Engine Gasket Kit

Note: Item not shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Item not shown

$66.99

$

Usually ships in 3-6 days

0

MTD 791-682052

Gasket Diaphragm Repair Kit (Walbro)

Note: Item not shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: Item not shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-1210

Short Block Assembly

Note: (includes 10, 15, 23, 45, 49-53); Item not shown

$

$

Not available

MTD 791-181501

Starter Housing Screw Set

Note: Item not shown

$9.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Item not shown

$10.99

$

In Stock, only 1 left!

0
