601 (251-512-010) - MasterCut by MTD Walk-Behind Edger (1991) (Skaggs Alpha Beta) Parts01 Parts Diagram

Walk-Behind Edger

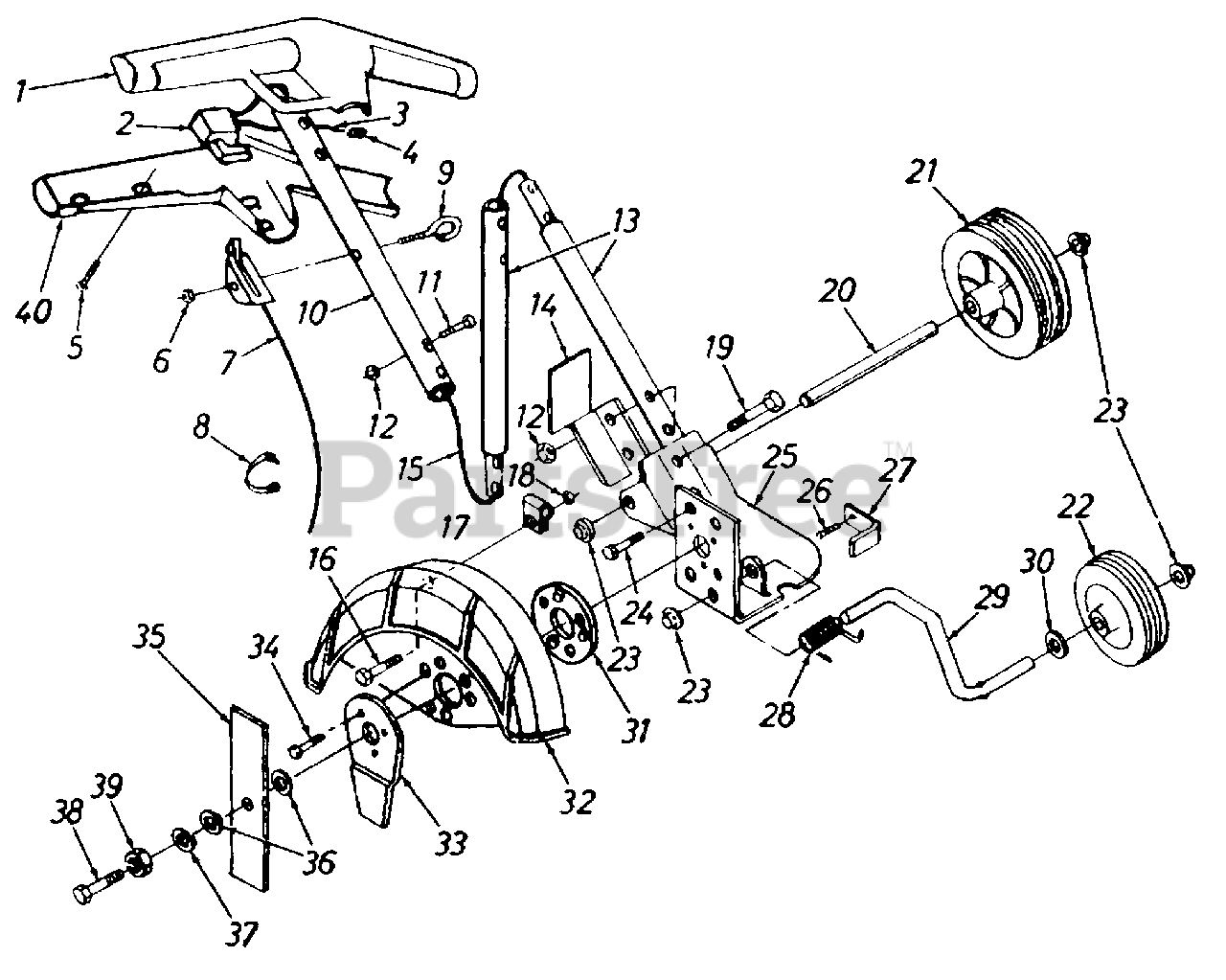

Parts01 Parts Diagram

  • Title

1

MTD 725-1585

Upper Switch Housing

$

$

Not available

2

MTD 725-1586

Engine Switch

$

$

Not available

3

MTD 729-0254

Ground Wire

$

$

Not available

4

MTD 725-1588

Ground Clip

$

$

Currently unavailable

5

MTD 710-1153

Pan Scr. #8 x .62"

Note: (Special)

$

$

Not available

6

MTD 712-0324

Hex L-Nut 1/4 - 20 Thd.

$3.49

$

In Stock, Qty 20+

0

7

MTD 746-0772

Choke Control Ass'y.
(Superseded to 946-0645A)

$43.99

$

Usually ships in 3-6 days

0

8

MTD 726-0197

Cable Tie

$3.49

$

In Stock, only 1 left!

0

9

MTD 710-1162

Rope Guide Eyebolt

$

$

Currently unavailable

10

MTD 750-0839

Upper Handle Tube

$

$

Not available

11

MTD 710-1156

Hex Bolt #10 - 24 x 1.25" Lg.

$

$

Not available

12

MTD 712-0161

Hex Ins. L-Nut #10 - 24 Thd.

$4.49

$

In Stock, Qty 9

0

13

MTD 750-0838

Lower Handle Tube

$

$

Not available

14

MTD 787-0118

Muftler Deflector Brkt.

$

$

Not available

15

MTD 729-0253

Engine Wire Ass'y.

$

$

Not available

16

MTD 710-0289

Hex Bolt 1/4 - 20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

17

MTD 787-0115

Clip

$

$

Not available

18

MTD 712-0324

Hex L-Nut 1/4 - 20 Thd.

$3.49

$

In Stock, Qty 20+

0

19

MTD 710-1106

Hex Bolt #10 - 24 x 1.5" Lg.

$

$

Not available

20

MTD 750-0840

Axle Pin

$

$

Not available

21

MTD 634-0007

5" Wheel

$

$

Not available

22

MTD 634-0008

4" Wheel

$

$

Not available

23

MTD 726-0100

Push Nut

$3.99

$

In Stock, Qty 8

0

24

MTD 710-1161

Hex Wash. Hd. Scr. 1/4-20 x 5" Lg

$

$

Not available

25

MTD 787-0116

Frame Base

$

$

Not available

26

MTD 710-1132

Self-Tap Scr #8 - 32 x 62"

$

$

Not available

27

MTD 787-0117

Nose Wheel Stop Brkt.

$

$

Not available

28

MTD 732-0686

Spring - Nose Wheel

$

$

Not available

29

MTD 747-0603

Nose Wheel Axle

$

$

Not available

30

MTD 736-0105

Bell-Wash. 3/8" 1.D

$3.99

$

In Stock, Qty 20+

0

31

MTD 750-0837

Spacer- Blade Guard

$

$

Not available

32

MTD 731-1193

Blade Guard

$

$

Not available

33

MTD 787-0101

Edge Guide

$

$

Not available

34

MTD 710-1073

Self-Tap Scr #10 - 32 x 75" Lg.

$

$

Not available

35

MTD 742-0554

9" Blade

$

$

Not available

36

MTD 736-3004

Fl.-Wash 3/8" 1.C) x 875" OD

$4.49

$

In Stock, Qty 19

0

37

MTD 736-0217

L-Wash. 3/8" I.D

Note: (H.P)

$3.99

$

In Stock, Qty 13

0

38

MTD 710-1032

Hex Bolt 3/8-24 x 1.25' (Grade 5)
(Superseded to 710-0459A)

Note: (Special)

$6.99

$

In Stock, Qty 10

0

39

MTD 712-0241

Hex Nut 3/8 - 24 THD.

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-1584

Lower Switch Housing

$

$

Not available
