6011 (1690347) - Simplicity Garden Tractor, 11hp Front Tires & Steering Group (6008 & 6011) Parts Diagram

Garden Tractor, 11hp

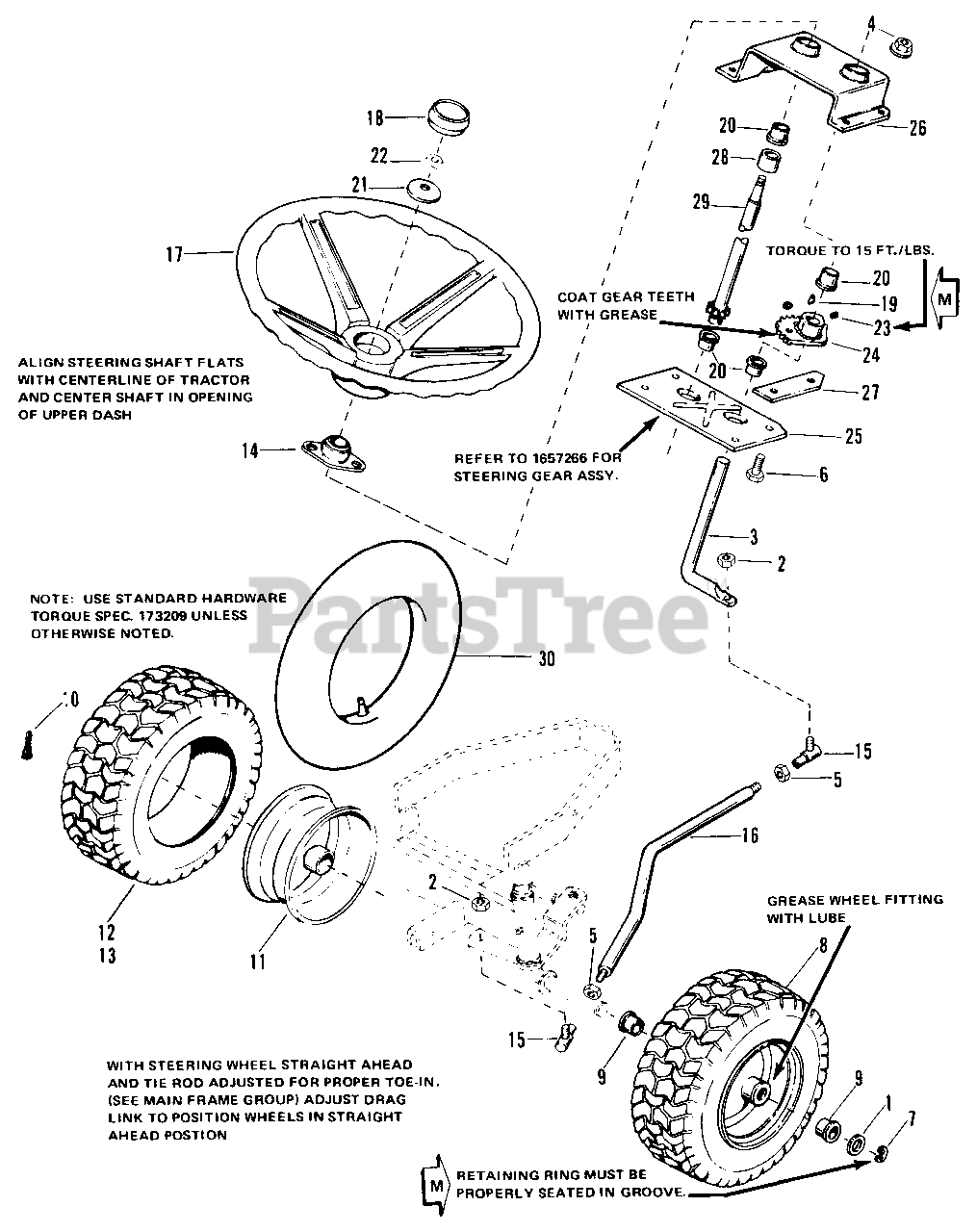

Front Tires & Steering Group (6008 & 6011) Parts Diagram

  • Title

1

Simplicity 2154071

WASHER

$

$

Not available

2

Simplicity 2830628

LOCKNUT, Center, 3/8-24

$

$

Not available

3

Simplicity 1673635SM

ROD, Steering

$51.99

$

Usually ships in 2-12 days

0

4

Simplicity 9Z7557

NUT, Flange, Whiz, Lock, 5/16-18

$

$

Not available

5

Simplicity 916602

NUT, Hex Jam, 3/8-24

$

$

Not available

6

Simplicity 2821333

CAPSCREW, Hex Hd. 5/16-18 x 1

$

$

Not available

7

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 9

0

8

Simplicity 1709856SM

WHEEL & TIRE ASSY., 15 x 6.00-6

$

$

Not available

9

Simplicity 2163111

BEARING, Relief

$

$

Not available

10

Simplicity 2171270

VALVE, Stem & Cap

$

$

Not available

11

Simplicity 1715032

WHEEL & BUSHING ASSY., 15-6
(Superseded to 1726301SM)

$85.99

$

In Stock, Qty 10

0

12

Simplicity 1713166SM

TIRE, 15 x 6.00-6, Carlisle

$113.99

$

Usually ships in 2-12 days

0

13

Simplicity 1713166SM

GOODYEAR TIRE, 15 x 6.00-6

$113.99

$

Usually ships in 2-12 days

0

14

Simplicity 1653670

BEARING

$

$

Not available

15

Simplicity 1669567SM

BALL JOINT ASSY

$16.99

$

In Stock, Qty 17

0

16

Simplicity 1667249SM

DRAG LINK ASSY

$160.99

$

In Stock, only 2 left!

0

17

Simplicity 1685187SM

WHEEL, Steering

$

$

Not available

18

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

19

Simplicity 2157332

KEY

$

$

Not available

20

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 2177649SM

WASHER, Compression

$9.99

$

In Stock, Qty 5

0

22

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

23

Simplicity 2830540

SCREW, Set, Sq. Hd. Cup Pt., 5/16-18 x 5/8

$

$

Not available

24

Simplicity 1685168SM

GEAR, Steering

$

$

Not available

25

Simplicity 1652743SM

BASE PLATE, Steering
(Superseded to 1652743ASM)

$

$

Not available

26

Simplicity 1685277SM

TOP PLATE, Steering

$46.99

$

Usually ships in 2-12 days

0

27

Simplicity 1654649

SPACER, Stop

$

$

Not available

28

Simplicity 1654907

SPACER

$

$

Not available

29

Simplicity 1657003SM

SHAFT ASSY., Steering

$149.99

$

Usually ships in 2-12 days

0

30

Simplicity 1664090SM

TUBE, 15 x 6.00-6

$28.99

$

In Stock, only 2 left!

0
