6014 VRT (1695922) - Simplicity Intermediate Tiller, 8hp Hood, Drag Stake & Tine Group Parts Diagram

Intermediate Tiller, 8hp

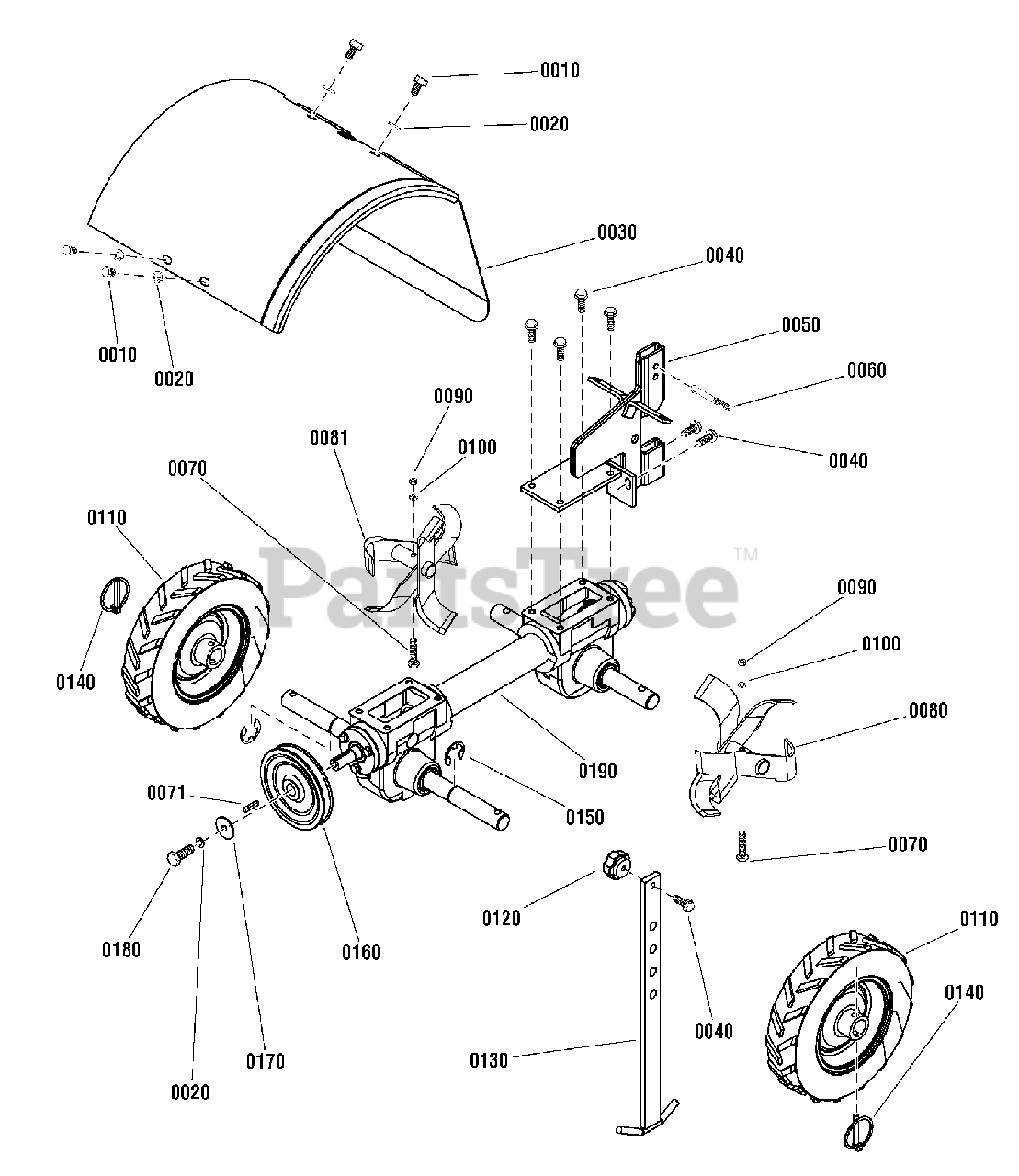

Hood, Drag Stake & Tine Group Parts Diagram

  • Title

0010

Simplicity 1920787

BOLT, Hex-Head, 5/16-18 x 1/2, G5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

0020

Simplicity 1917356

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

0030

Simplicity 1751863

HOOD ASSEMBLY, Tine With Hinge, Narrow

$

$

Not available

0040

Simplicity 1716780

BOLT-HEX FLG HD 5/16-18X3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 20+

0

0050

Simplicity 1738670

DEPTH REGULATOR, Tail Mount
(Superseded to 1738670YP)

$192.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1738771

PIN, Detent, 5/16 x 2
(Superseded to 1738771YP)

$34.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1931353

BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

Usually ships in 2-12 days

0

0071

Simplicity 1716771

KEY, Square, 3/16 x 5/8
(Superseded to 1716771YP)

$6.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1721513

TINE ASSEMBLY - LH
(Superseded to 1721513SM)

$174.99

$

Usually ships in 2-12 days

0

0081

Simplicity 1721514

TINE ASSEMBLY - RH
(Superseded to 1721514SM)

$174.99

$

Usually ships in 2-12 days

0

0090

Simplicity 720178

WASHER, Spring-Lock, 3/8
(Superseded to 018X31MA)

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 7091585

NUT, Hex, Locking, Two-Way, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, Qty 8

0

0110

Simplicity 1751864

TIRE, Solid, Dual Direction

$

$

Not available

0120

Simplicity 1733098

KNOB, 5-Star, 5/16-18
(Superseded to 1733098SM)

$10.99

$

In Stock, only 3 left!

0

0130

Simplicity 1751866

DRAG STAKE ASSEMBLY. Tiller, CRT
(Superseded to 1751866YP)

$87.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1716776

LOCKPIN, 5/16 x 1-3/4
(Superseded to 703160)

$5.49

$

In Stock, only 2 left!

0

0150

Simplicity 1716821

SNAP RING, Retainer, External
(Superseded to 1716821SM)

$6.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1751867

PULLEY, Transmission Small, Rear Tine
(Superseded to 1751867YP)

$74.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1716770

WASHER, 5/16 x 1-1/2
(Superseded to 1716770SM)

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1921515

BOLT, Hex-Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0190

TRANSMISSION ASSEMBLY CRT7

Note: (See Tiller Shaft Group)

$

$

Not available
