6014 VRT (1695922) - Simplicity Intermediate Tiller, 8hp Tiller Shaft Group Parts Diagram

Intermediate Tiller, 8hp

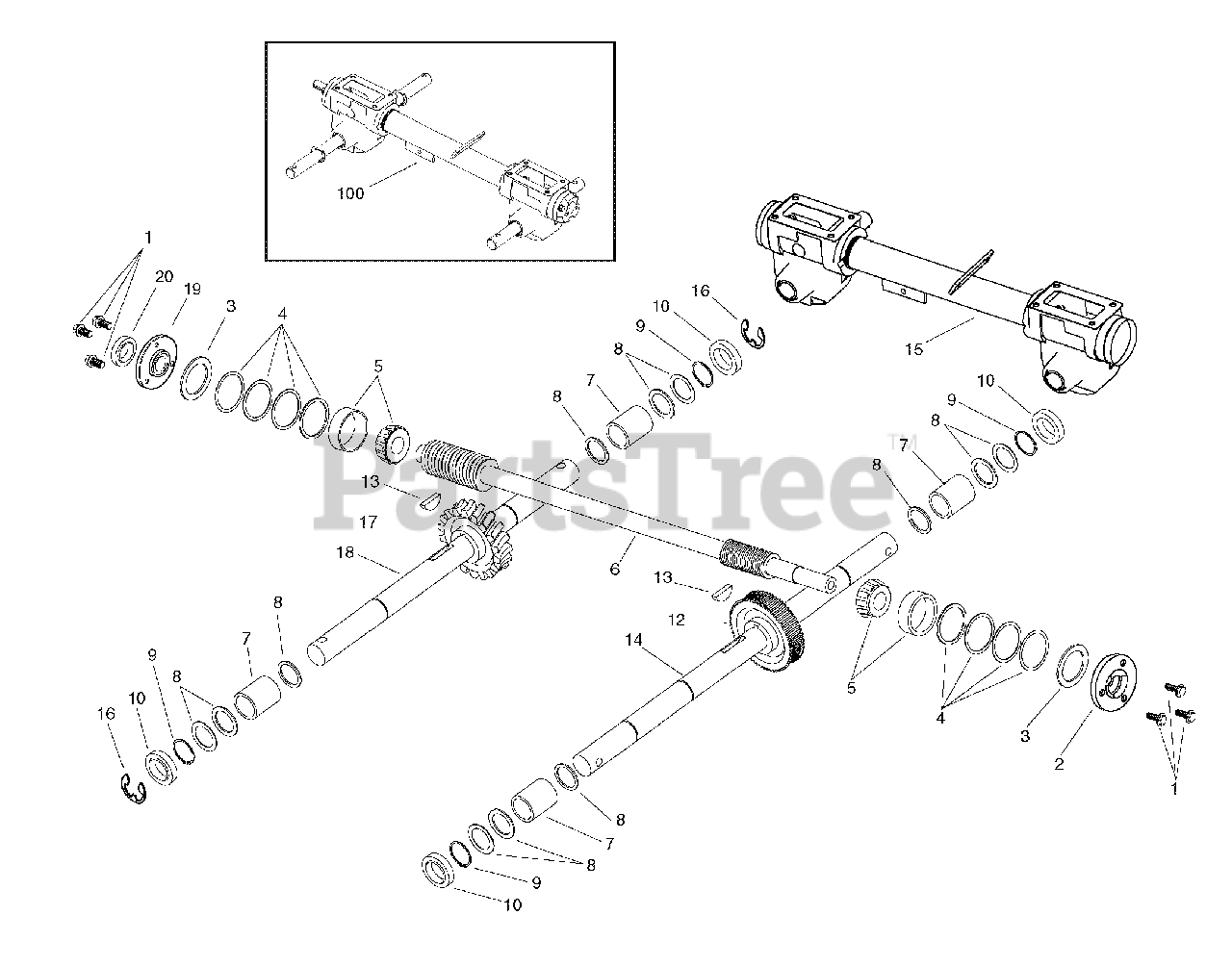

Tiller Shaft Group Parts Diagram

  • Title

1

Simplicity 1738765

BOLT, M6 x 25mm
(Superseded to 1738765YP)

$13.99

$

Usually ships in 2-12 days

0

2

** COVER, Rear Transmission

$

$

Not available

3

Simplicity 1751860

GASKET, Front & Rear tansmission Cover

$

$

Not available

4

* SHIM, Drive shaft

$

$

Not available

5

* BEARING, Tapered Roll

$

$

Not available

6

** SHAFT, Drive CRT

$

$

Not available

7

* BUSHING, TIne & Wheel Shaft

$

$

Not available

8

* SHIM, Tine & Wheel Shaft

$

$

Not available

9

Simplicity 1716830

RING, Retainer Shaft
(Superseded to 1716830SM)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1716791

SEAL, Grease Tine & Wheel
(Superseded to 1716791SM)

$52.99

$

Usually ships in 2-12 days

0

12

** GEAR, Worm Tine, CRT

$

$

Not available

13

* KEY, Woodruff, 6 x 25

$

$

Not available

14

* SHAFT, Tine

$

$

Not available

15

** HOUSING, Transmission

$

$

Not available

16

Simplicity 1751861

RING, Retainer, External
(Superseded to 1751861YP)

$4.49

$

Usually ships in 2-12 days

0

17

** GEAR, Worm Wheel, CRT

$

$

Not available

18

** SHAFT, Wheel

$

$

Not available

19

** COVER, Front Transmission

$

$

Not available

20

Simplicity 1751862

SEAL, Grease Input

$

$

Not available

100

Simplicity 1751858

TRANSMISSION ASSEMBLY CRT6

$

$

Not available
