6016 RT (1694908) - Simplicity Tiller, 6hp Engine, Belts & Wheels Group Parts Diagram

Tiller, 6hp

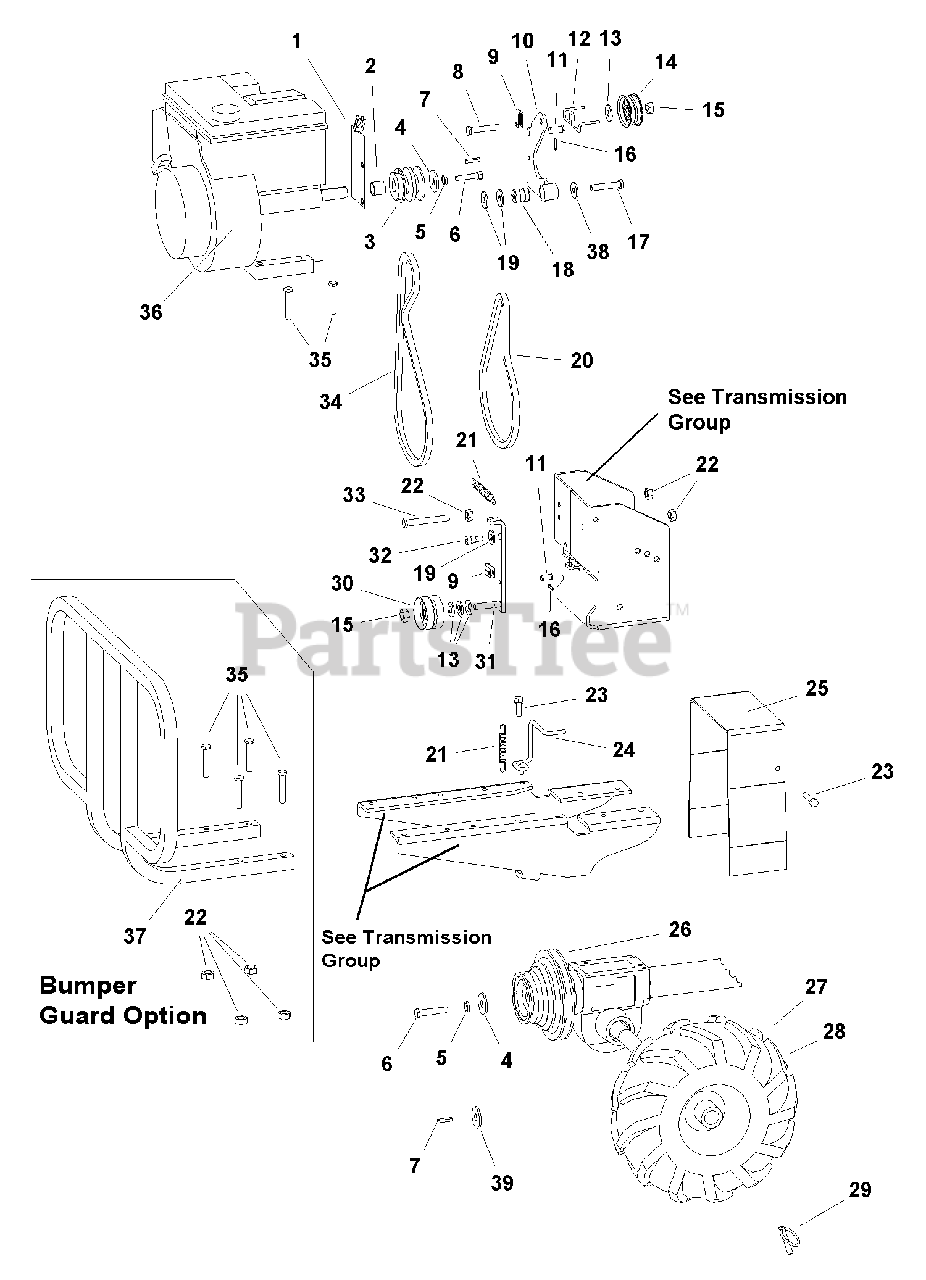

Engine, Belts & Wheels Group Parts Diagram

  • Title

1

Simplicity 1722157SM

BRACKET, Engine

$14.99

$

Usually ships in 2-12 days

0

2

Simplicity 1723711SM

SPACER, Engine

$9.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722158SM

PULLEY, Engine 2 Groove

$185.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716770SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

5

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 2805850SM

KEY, PARALLEL PLN, 3/16 x 3/16 x 1-3/32

$2.49

$

Usually ships in 2-12 days

0

8

Simplicity 1960345SM

CAPSCREW, Hex Head, 3/8-24 x 2

$2.99

$

In Stock, only 1 left!

0

9

Simplicity 1716728SM

YOKE, Cable

$

$

Not available

10

Simplicity 1722159SM

ARM, Pivot

$

$

Not available

11

Simplicity 1716702SM

PIN, Link Forward/Reverse

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1722162SM

GUIDE, Belt Reverse

$36.99

$

Usually ships in 2-12 days

0

13

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1716805SM

PULLEY, Idler Reverse

$42.99

$

Usually ships in 2-12 days

0

15

Simplicity 1916950SM

NUT, Hex Center Lock, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

16

Simplicity 1716703SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1723710SM

BOLT, Flat Head, 5/16-24 x 1-1/2

$6.49

$

Usually ships in 2-12 days

0

18

Simplicity 1722160SM

PIVOT

$5.49

$

In Stock, only 1 left!

0

19

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 11

0

20

Simplicity 1716766SM

V-BELT, Forward

$23.99

$

In Stock, Qty 8

0

21

Simplicity 1716802SM

SPRING, Idler Arm

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1921332SM

BOLT, Hex Flange Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

24

Simplicity 1722161SM

GUIDE, Belt Forward

$26.99

$

Usually ships in 2-12 days

0

25

Simplicity 1722165SM

COVER, Belt

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722163SM

PULLEY, Transmission 2 Groove

$125.99

$

Usually ships in 2-12 days

0

27

Simplicity 1721525SM

WHEEL & TIRE ASSEMBLY TILLER, Left

$131.99

$

In Stock, only 1 left!

0

28

Simplicity 1721524SM

WHEEL & TIRE ASSEMBLY TILLER, Right

$158.99

$

Usually ships in 2-12 days

0

29

Simplicity 1716776SM

PIN, Lock
(Superseded to 703160)

$5.49

$

In Stock, Qty 7

0

30

Simplicity 1716803SM

PULLEY, Forward Idler

$45.99

$

Usually ships in 2-12 days

0

31

Simplicity 1722166SM

ARM, Idler Forward

$63.99

$

Usually ships in 2-12 days

0

32

Simplicity 1722168SM

SCREW, Hex Socket Shoulder, 5/16-18 x 3/8

$6.99

$

Usually ships in 2-12 days

0

33

Simplicity 1925690SM

CAPSCREW, Hex Head, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 1722144SM

V-BELT, Reverse
(Superseded to 37X139MA)

$22.99

$

In Stock, Qty 5

0

35

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

36

* ENGINE, 6HP Briggs & Stratton INTEK

Note: , 2005 - Engine Model 126412 , Engine Type 0023-E2

$

$

Not available

36

* ENGINE, 6HP Briggs & Stratton INTEK

Note: , 2006 - Engine Model 121212 , Engine Type 0112-E1

$

$

Not available

37

Simplicity 1721528SM

** BUMPER, Guard

$265.99

$

Usually ships in 2-12 days

0

38

Simplicity 1919384SM

WASHER

$5.49

$

In Stock, only 2 left!

0

39

Simplicity 2860164SM

WASHER

$4.49

$

In Stock, only 3 left!

0
