6016RT (1695577) - Snapper 16" Rear-Tine Tiller, 8.5hp Wheel & Tiller Shaft Group Parts Diagram

16" Rear-Tine Tiller, 8.5hp

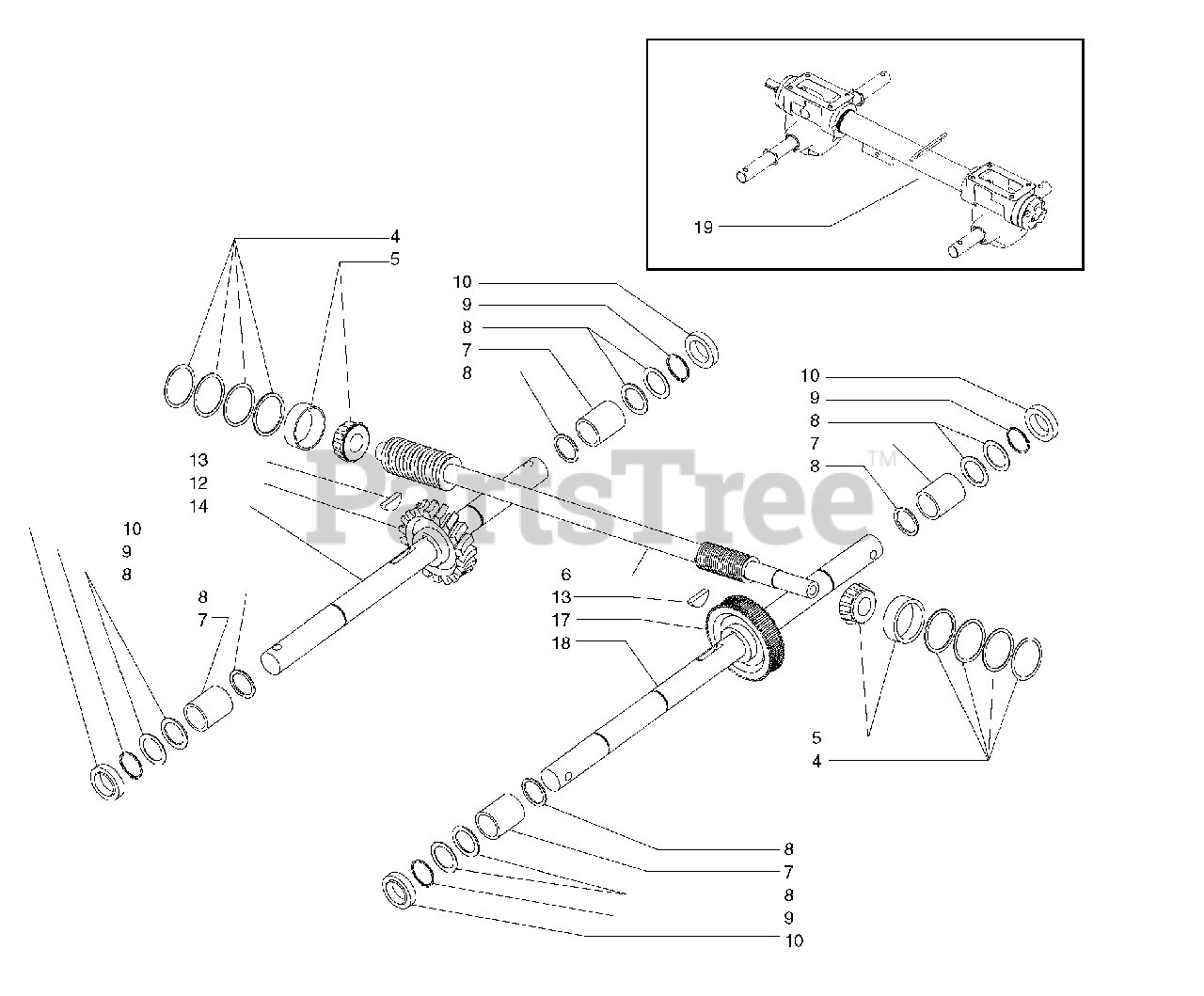

Wheel & Tiller Shaft Group Parts Diagram

  • Title

4

* SHIM, Drive shaft

$

$

Not available

5

* BEARING, Tapered Roll

$

$

Not available

6

* SHAFT, Drive SRT

$

$

Not available

7

* BUSHING

$

$

Not available

8

* SPACER, 1" ID x 1-1/4 OD

$

$

Not available

9

Snapper 1716830

RING, Retainer Shaft
(Superseded to 1716830SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 1716791

SEAL, Oil, Housing
(Superseded to 1716791SM)

$52.99

$

Usually ships in 2-12 days

0

12

* GEAR, Tine, SRT

$

$

Not available

13

* KEY, Woodruff, 6 x 25

$

$

Not available

14

* SHAFT, Tine

$

$

Not available

17

* GEAR WHEEL

$

$

Not available

18

* SHAFT, WHEEL, Long

$

$

Not available

19

Snapper 1738764

TRANSMISSION ASSEMBLY
(Superseded to 1738764YP)

$1595.99

$

Usually ships in 2-12 days

0
