6016RT (7800052) - Snapper 16" Rear-Tine Tiller, 6hp Wheel & Tiller Shaft Group Parts Diagram

16" Rear-Tine Tiller, 6hp

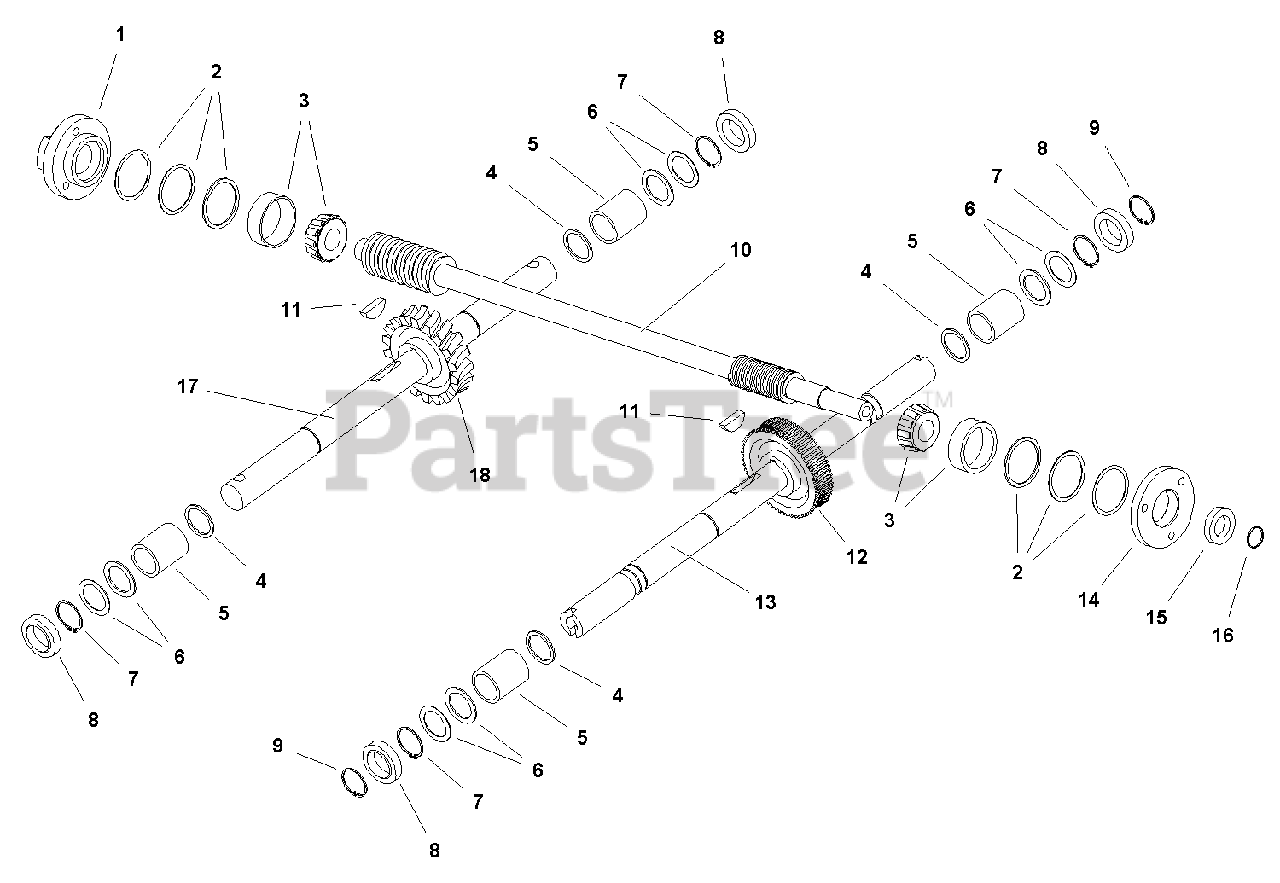

Wheel & Tiller Shaft Group Parts Diagram

  • Title

1

Snapper 1716793

CAP, Rear Bearing
(Superseded to 1716793SM)

$35.99

$

Usually ships in 2-12 days

0

2

Snapper 1716825

SHIM SET, Rear Bearing Cap
(Superseded to 1739268YP)

$49.99

$

Usually ships in 2-12 days

0

2

Snapper 1716826

SHIM, 0.062 THK1-3/4" x OD1806 (As Required)
(Superseded to 1716826SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 1716827

SHIM, 0.030 THK1-3/4" x OD1807 (As Required)
(Superseded to 1716827SM)

$5.99

$

Usually ships in 2-12 days

0

2

Snapper 1716828

SHIM, 0.015 THK1-3/4" x OD1808 (As Required)
(Superseded to 1716828SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 1716829

SHIM, 0.010 THK1-3/4" x OD1809 (As Required)
(Superseded to 1716829SM)

$5.49

$

In Stock, only 3 left!

0

3

Snapper 1716810

BEARING, Tapered (Cone & Race)
(Superseded to 1716810SM)

$56.99

$

Usually ships in 2-12 days

0

4

Snapper 1716824

SPACER, 1" x 1-1/4"
(Superseded to 1716824SM)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 1716816

BUSHING
(Superseded to 1716816SM)

$17.99

$

Usually ships in 2-12 days

0

6

Snapper 1716815

SHIM SET, Axle Spacer
(Superseded to 1739268YP)

$49.99

$

Usually ships in 2-12 days

0

6

Snapper 1716817

SHIM, 0.062 THK1-3/8" x OD1705 (As Required)
(Superseded to 1716817SM)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 1716818

SHIM, 0.030 THK1-3/8" x OD1706 (As Required)
(Superseded to 1716818SM)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 1716819

SHIM, 0.015 THK1-3/8" x OD1707 (As Required)
(Superseded to 1716819SM)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 1716820

SHIM, 0.010 THK1-3/8" x OD1708 (As Required)
(Superseded to 1716820SM)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 1716830

RING, Snap, Internal Retainer
(Superseded to 1716830SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 1716791

SEAL, Housing
(Superseded to 1716791SM)

$52.99

$

In Stock, only 2 left!

0

9

Snapper 1716821

RING, Snap, External Retainer
(Superseded to 1716821SM)

$6.49

$

Usually ships in 2-12 days

0

10

Snapper 1722333

DRIVE SHAFT, Main
(Superseded to 1722333SM)

$302.99

$

Usually ships in 2-12 days

0

11

Snapper 1716813

KEY, Parallel Plane 1/4" x 1/4" x 1"
(Superseded to 1716813SM)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 1716814

GEAR, Worm, Wheels Shaft
(Superseded to 1716814SM)

$176.99

$

Usually ships in 2-12 days

0

13

Snapper 1716811

SHAFT ASSEMBLY, Wheel w/Lock Pin 18.25" (6016RT)
(Superseded to 1716811SM)

$102.99

$

Usually ships in 2-12 days

0

13

Snapper 1716812

SHAFT ASSEMBLY, Wheel w/Lock Pin 19.25" (7016RT)
(Superseded to 1716812SM)

$55.99

$

Usually ships in 2-12 days

0

14

Snapper 1716796

CAP, Rear Bearing
(Superseded to 1716796SM)

$21.99

$

Usually ships in 2-12 days

0

15

Snapper 1716797

SEAL, Oil, Drive Shaft
(Superseded to 1716797SM)

$19.99

$

Usually ships in 2-12 days

0

16

Snapper 2860164

WASHER, 5/8
(Superseded to 2860164SM)

$4.49

$

In Stock, Qty 5

0

17

Snapper 1716822

SHAFT, Tiller
(Superseded to 1716822SM)

$95.99

$

Usually ships in 2-12 days

0

18

Snapper 1716823

GEAR, Worm Shaft
(Superseded to 1716823SM)

$222.99

$

Usually ships in 2-12 days

0
