6020 MD (954222688-A) - Husqvarna Walk-Behind Mower (2001-01) Repair Parts Parts Diagram

Walk-Behind Mower

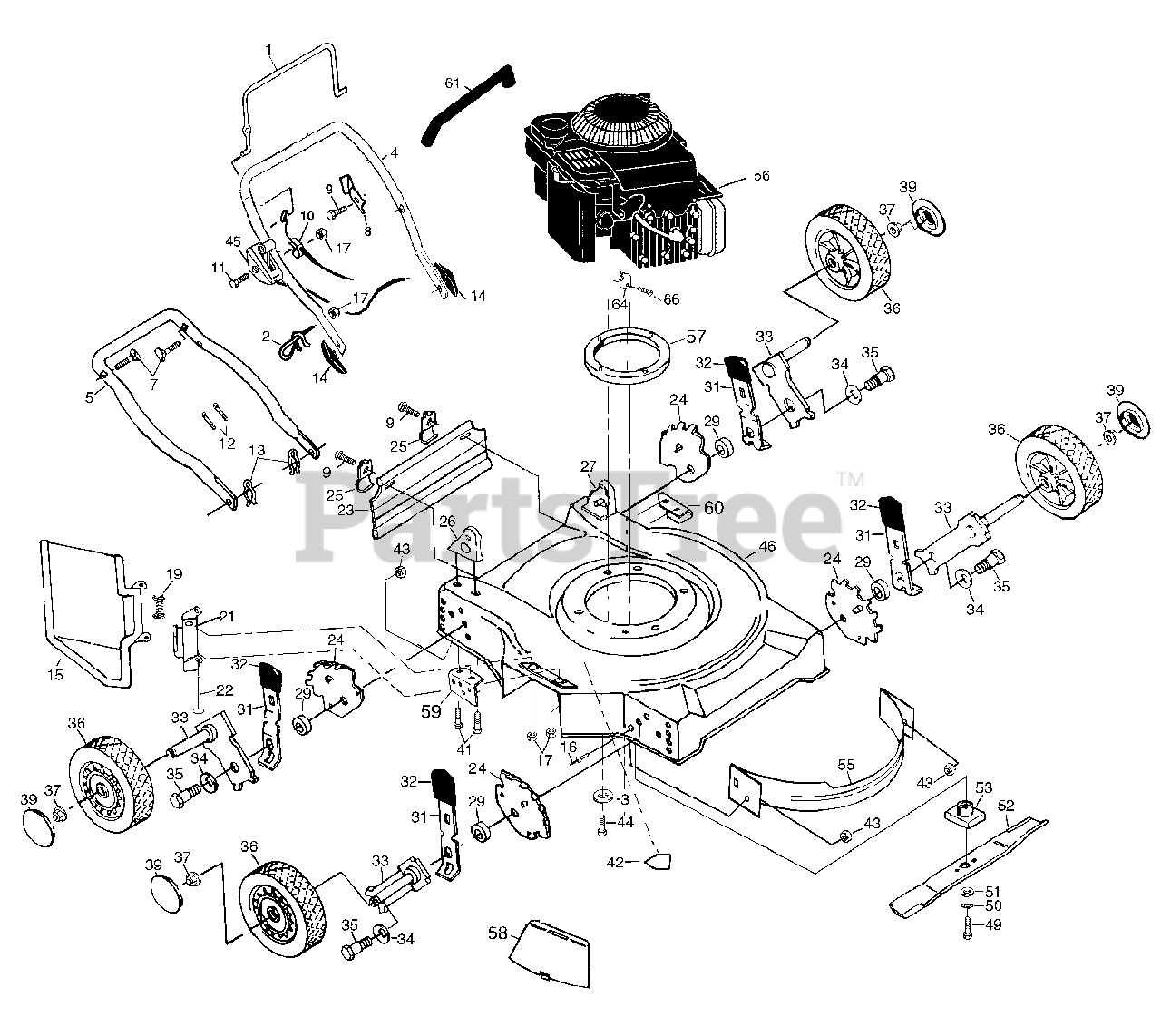

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532176555

Control Bar

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532153638

Rope Guide

$

$

Not available

3

Husqvarna 532053998

Engine Washer

$

$

Not available

4

Husqvarna 532165526

Upper Handle

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532159354

Lower Handle
(Superseded to 532157082)

$

$

Not available

7

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532130861

Engine Zone Control Cable

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532144929

Screw Hex Hd 1/4 x 2- 1/8
(Superseded to 532158755)

$

$

Not available

12

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532128638

Handle Knob

$7.49

$

In Stock, Qty 10

0

15

Husqvarna 832850778

Discharge Guard
(Superseded to 532850778)

$

$

Not available

16

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532087589

Torsion Spring

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532087593

Bracket Assembly

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 12

0

23

Husqvarna 532140543

Rear Deflector
(Superseded to 532413160)

$12.99

$

In Stock, Qty 6

0

24

Husqvarna 532139901

Wheel Adjusting Bracket
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532125207

Deflector Bracket
(Superseded to 532192301)

$

$

Not available

26

Husqvarna 532170975

Handle Bracket Assembly (Right)
(Superseded to 532170345)

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532170977

Handle Bracket Assembly (Left)
(Superseded to 532170346)

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

31

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$4.99

$

In Stock, Qty 11

0

32

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 3 left!

0

33

Husqvarna 532149857

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

34

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532142748

Shoulder Bolt
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

36

Husqvarna 532148442

Wheel and Tire Assembly

$30.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532083923

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532077400

Hubcap

$7.49

$

In Stock, only 2 left!

0

41

Husqvarna 532149741

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

42

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532850999

Hex Head Thread Rolling Screw 3/8-169 x 1-1/8

$7.49

$

In Stock, only 3 left!

0

45

Husqvarna 532166971

Throttle Control
(Superseded to 532182157)

$

$

Not available

46

Husqvarna 532176559

Lawn Mower Housing

$

$

Not available

49

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 (Grd.8)
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532850263

Helical Lock Washer 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532145106

Blade 20"

$14.99

$

In Stock, Qty 8

0

53

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

55

Husqvarna 532139790

Front Baffle
(Superseded to 532146026)

$

$

Not available

56

Engine B & S 12H802

Note: (Order parts from engine manufacturer)

$

$

Not available

57

Husqvarna 532701313

Spacer Ring

$

$

Not available

58

Husqvarna 532125444

Mulcher Plate
(Superseded to 532751772)

$

$

Not available

59

Husqvarna 532125424

Bracket Support (Right)
(Superseded to 532125205)

$

$

Not available

60

Husqvarna 532125423

Bracket Support (Left)

$

$

Not available

61

Husqvarna 532164265

Handle Grip
(Superseded to 585161003)

$

$

Not available

64

Husqvarna 532111190

Cable Clamp

$

$

Not available

66

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532177944

Owner's Manual (English/French)

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532125046

Rear Baffle

Note: (Not shown)

$

$

Not available

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0
