6021 P (961330011-00) - Husqvarna Walk-Behind Mower (2010-02) Product Complete Parts Diagram

Walk-Behind Mower

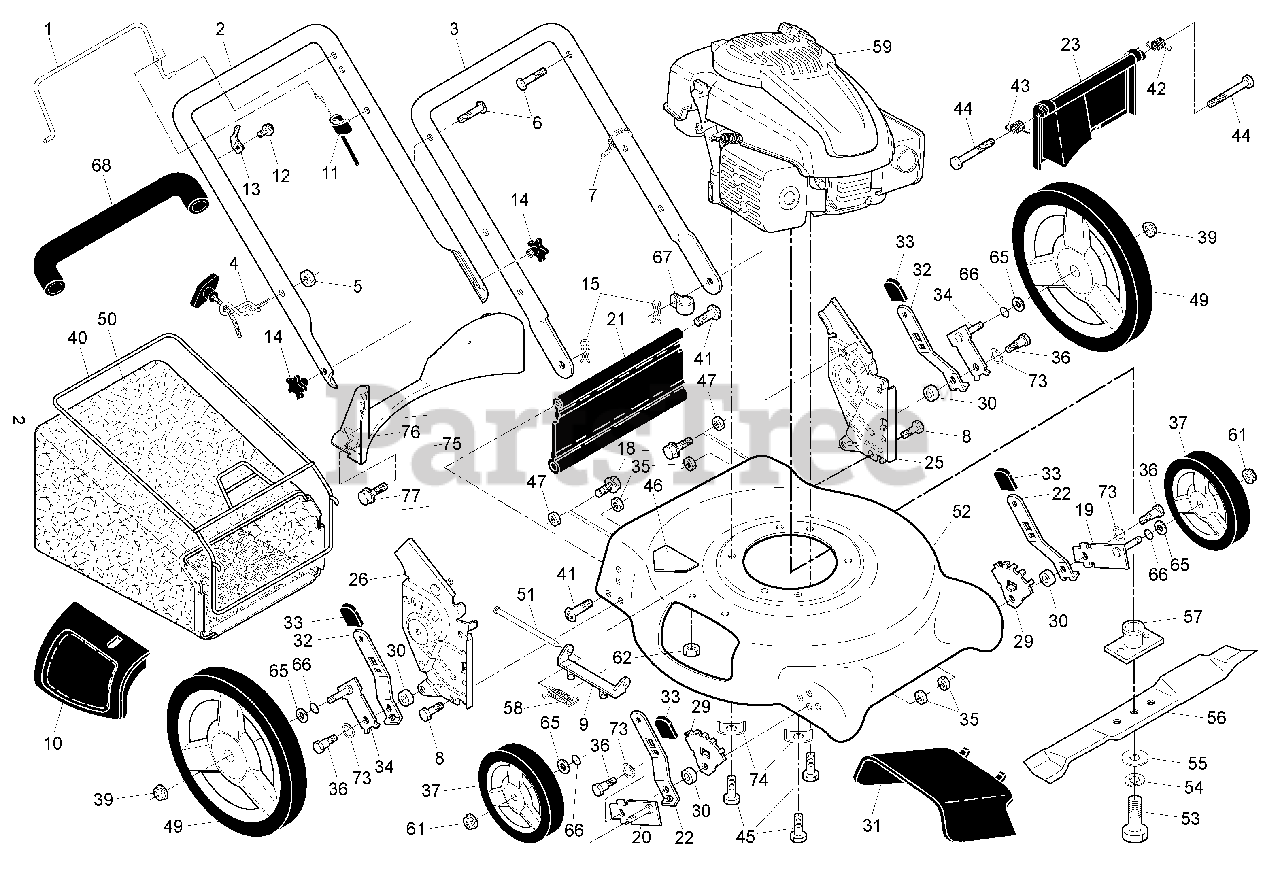

Product Complete Parts Diagram

  • Title

1

Husqvarna 532402949

BAIL.MZR.STD.ORANGE

$14.99

$

In Stock, only 2 left!

0

2

Husqvarna 532197808

UPPERHANDLE(INCLUDES FOAMGRIP)

Note: (Includes Foam Grip)

$59.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174110

HANDLE.LOWER.GREY
(Superseded to 532174291)

$

$

Not available

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

5

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$

$

Not available

10

Husqvarna 532185589

RP DOOR.MULCH.21".REAR.PUSH.GR
(Superseded to 581825801)

$

$

Not available

11

Husqvarna 532183281

CABLE.ENGINE.ZONE.CONTROL

$17.99

$

In Stock, Qty 20+

0

12

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 17

0

15

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

18

Husqvarna 817600406

SCREW 1/4X20

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

$

$

Not available

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 532418655

RP_KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 20+

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$6.49

$

In Stock, Qty 7

0

23

Husqvarna 532410603

REAR DOOR ASSY
(Superseded to 532401814)

$

$

Not available

25

Husqvarna 532413924

RP BRKT.ASM.HAND.HW.21.LT.ORNG
(Superseded to 580915605)

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532413925

RP BRKT.ASM.HAND.HW.21RT.ORNG
(Superseded to 532446562)

$

$

Not available

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482402)

$14.99

$

In Stock, Qty 20+

0

32

Husqvarna 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 532087877

KNOB

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

$

$

Not available

35

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$33.99

$

In Stock, Qty 9

0

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$1.49

$

In Stock, Qty 20+

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$43.99

$

In Stock, Qty 7

0

41

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 532184193

BOLT

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

46

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

48

Husqvarna 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

$

$

Not available

49

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$33.99

$

In Stock, Qty 20+

0

50

Husqvarna 532194715

GBAG.2323247.SILVER
(Superseded to 581002101)

$74.99

$

In Stock, Qty 16

0

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$9.49

$

In Stock, Qty 13

0

52

Husqvarna 532418709

RP KIT.HSG.
(Superseded to 532442455)

Note: (Includes Key Number 46)

$335.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$23.99

$

In Stock, Qty 12

0

57

Husqvarna 532420097

RP BLADE ADAPTER
(Superseded to 532418373)

$13.99

$

In Stock, Qty 20+

0

58

Husqvarna 532152124

TORSION SPRING

$5.99

$

In Stock, Qty 12

0

59

Engine, Kohler, Model Number XT149-0026-EA

Note: (For engine service and replacement parts, call Kohler at 1-800-544-2444)

$

$

Not available

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$3.99

$

In Stock, Qty 16

0

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

68

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, Qty 6

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

75

Husqvarna 532413693

KIT.BAFFLE.REAR.PLASTIC.21.RD

Note: (Includes 3 Screws)

$33.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$

$

Not available

77

Husqvarna 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 20+

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: (not shown)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532433773

Operator's Manual, English / French

$

$

Currently unavailable
