603 (190-603-100) - Cub Cadet Riding Sulky Riding Sulky Parts Diagram

Riding Sulky

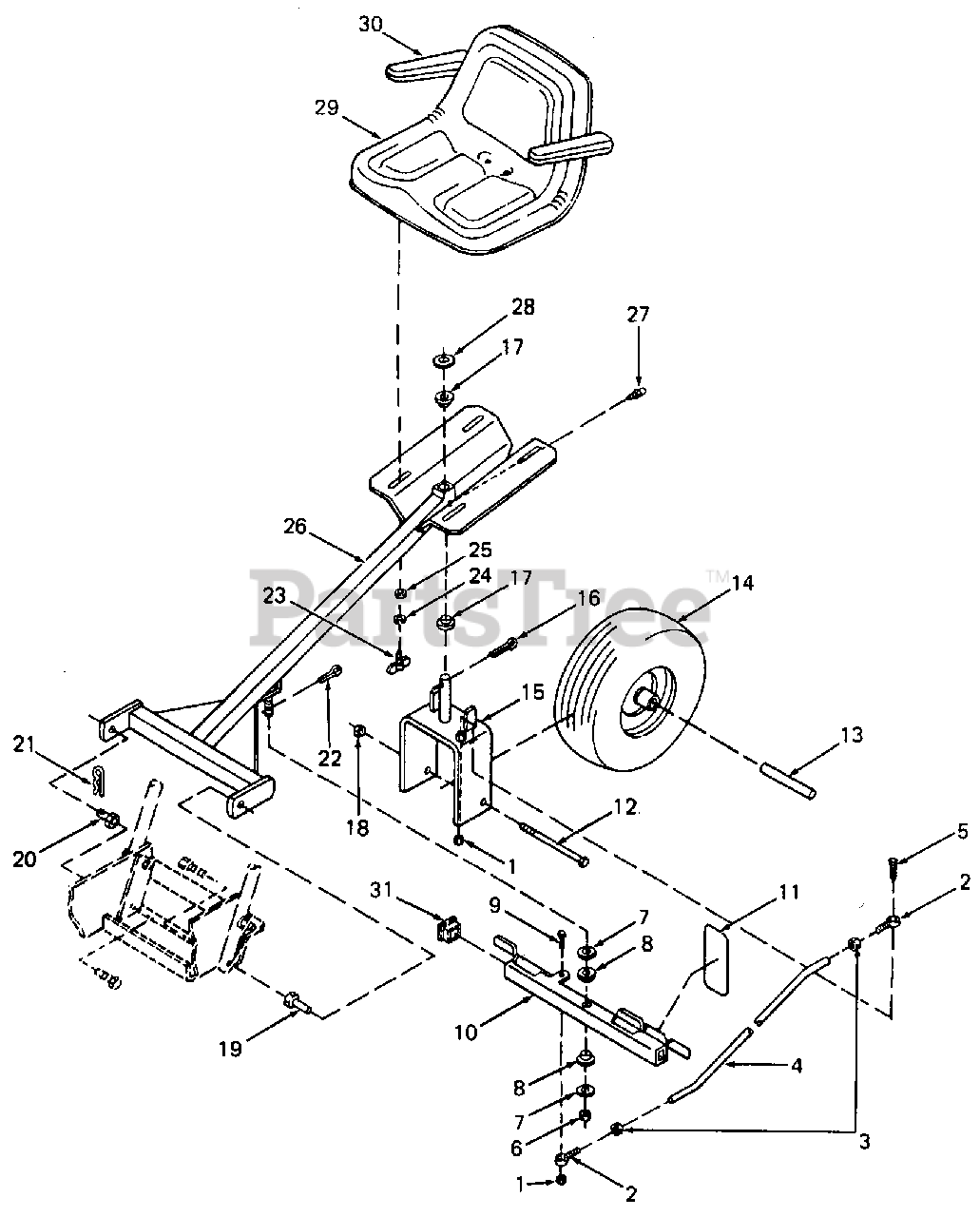

Riding Sulky Parts Diagram

  • Title

1

Cub Cadet 712-0375

Nut, Lock, 3/8-16

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet TE-1000256

Rod End, Male

$

$

Currently unavailable

3

Cub Cadet 712-0711

Nut, Jam, 3/8-24

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet TE-1000620

Linkage, Steering

$

$

Not available

5

Cub Cadet 710-3096

Bolt, Hex, 3/8-16 X 2.0 GR8

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet TE-427640

Nut, Slotted, 3/4-16 Pltd
(Superseded to 712-0359)

$10.99

$

In Stock, Qty 5

0

7

Cub Cadet 736-0134

Washer, Flat, 3/4

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet TE-1000255

Bushing, Steering Bar

$

$

Not available

9

Cub Cadet TE-180124

Bolt, Hex, 3/8-16 X 1-1/4 GR5

$

$

Currently unavailable

10

Cub Cadet TE-1000680

Steering Tube Assembly

Note: (Includes Ref No. 11 & 30)

$

$

Not available

11

Cub Cadet TE-1000618

Pad, Abrasive

$

$

Currently unavailable

12

Cub Cadet TE-180882

Bolt, Hex, 1/2-13 X 8-1/2 Pltd GR5

$

$

Currently unavailable

13

Cub Cadet TE-1000619

Sleeve

$

$

Currently unavailable

14

Cub Cadet TE-1000621

Wheel & Tire Assembly

$

$

Not available

Cub Cadet TE-1000665

Tire only

$

$

Not available

15

Cub Cadet TE-1000622

Fork

$

$

Not available

16

Cub Cadet TE-103422

Pin, Cotter, Plain, 1/4 X 2.0

$

$

Currently unavailable

17

Cub Cadet TE-1000656

Bushing

$

$

Not available

18

Cub Cadet 712-0384

Nut, Lock, 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

19

Cub Cadet TE-1000627

Hitch, Left, Long

$

$

Not available

20

Cub Cadet TE-1000628

Hitch, Right, Short

$

$

Not available

21

Cub Cadet TE-1000629

Cotter, Hairpin, .18 Dia

$

$

Not available

22

Cub Cadet 714-0144

Pin, Cotter, 1/8 X 1.0 Pln

$

$

Not available

23

Cub Cadet 710-0514

Bolt, Hex, 3/8-16 X 1.0 Zn GR5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0169

Washer, Spring Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet TE-120388

Washer, Flat, 3/8

$

$

Currently unavailable

26

Cub Cadet TE-1000604

Sulky Frame

$

$

Currently unavailable

27

Cub Cadet TE-1000340

Fitting, Gr, 1/4-28 Str Short

$

$

Not available

28

Cub Cadet TE-131019

Washer, Flat, 1 Dia Narrow Zn

$

$

Not available

29

Cub Cadet TE-1000626

Seat

$

$

Not available

30

Cub Cadet TE-1000630

Arm Rest Kit

$

$

Not available

31

Cub Cadet TE-1000677

Cap

$

$

Currently unavailable
