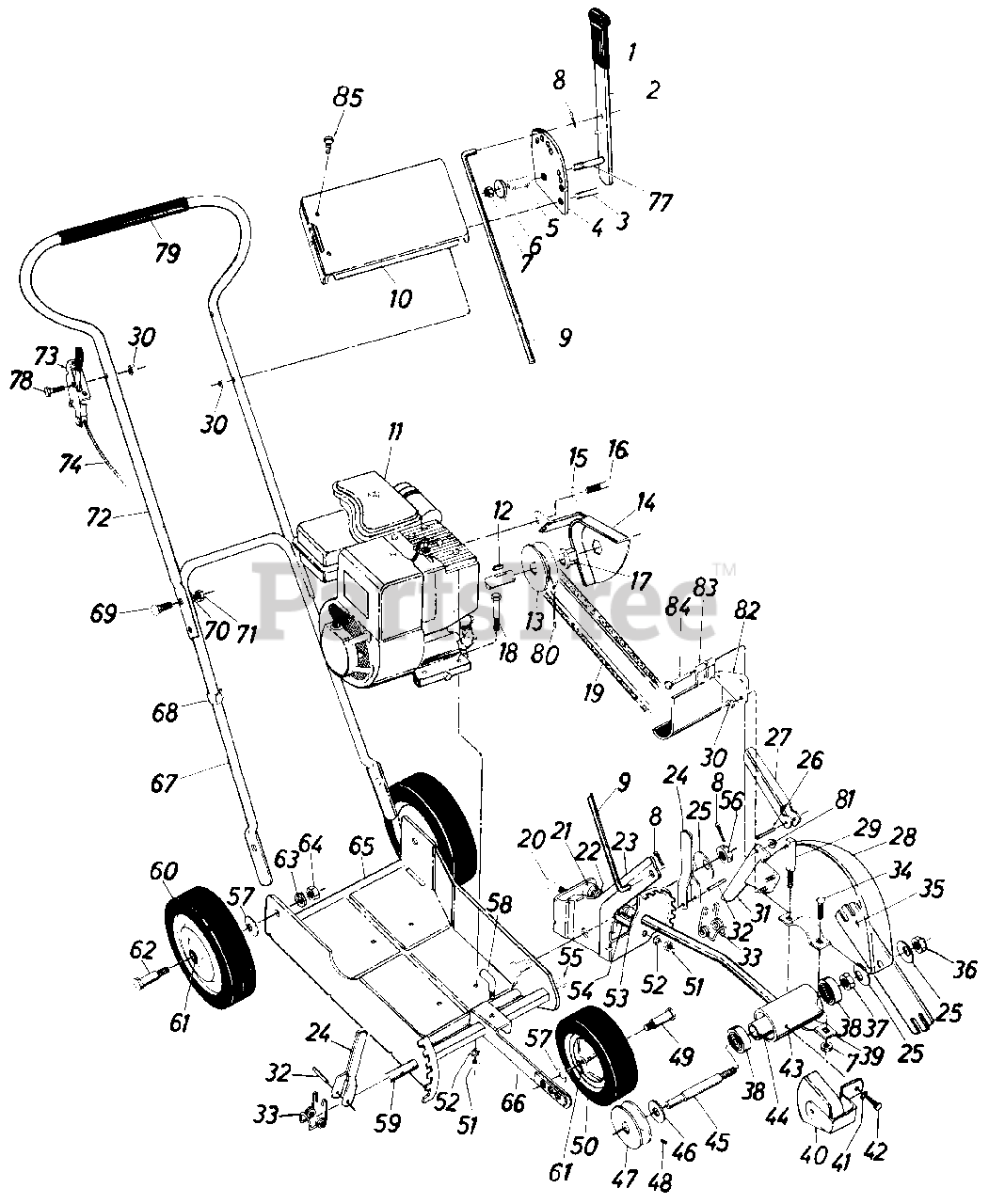

603 (244-603-100) - Cub Cadet Edger (1984) Throttle Control, Belt Guard And Wheel Assemblies Parts Diagram

Edger

Throttle Control, Belt Guard And Wheel Assemblies Parts Diagram

  • Title

1

Cub Cadet 720-0142

Flat Bar Grip

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 09948

Clutch Handle Assembly

$

$

Currently unavailable

3

Cub Cadet 710-0106

Hex Bolt 1/4-20 x 1 1/4 Lg.

$4.49

$

In Stock, Qty 12

0

4

Cub Cadet 09950

Clutch Plate

$

$

Currently unavailable

5

Cub Cadet 732-0171

Compression Spring

$

$

Currently unavailable

6

Cub Cadet 736-0264

Flat Washer

$7.49

$

In Stock, only 1 left!

0

7

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

8

Cub Cadet 714-0115

Cotter Pin 1/8 Dia. x 1.00" Lg.

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 09951

Clutch Rod

$

$

Currently unavailable

10

Cub Cadet 10113

Handle Cover

Note: Color Code - 499

$

$

Currently unavailable

11

Engine

$

$

Not available

12

Cub Cadet 714-0105

Square Key .187 Sq. x 1" Lg.
(Superseded to 914-0105)

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 711-0421

Pulley - Engine

$

$

Not available

14

Cub Cadet 09941

Belt Guard Assembly

Note: Color Code - 499

$

$

Not available

15

Cub Cadet 736-0114

Internal L.-Wash. 1/2" Dia.

$

$

Not available

16

Cub Cadet 710-0121

Hex Bolt 1/2-20 x 3/4" Lg.

$

$

Not available

17

Cub Cadet 748-0227

Hex Bearing
(Superseded to 948-0227A)

$8.99

$

In Stock, Qty 5

0

18

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1-1/2" Lg
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 7

0

19

Cub Cadet 754-0142

V-Belt 3/8 x 31.2 Lg.
(Superseded to 954-0142)

$32.99

$

In Stock, only 1 left!

0

20

Cub Cadet 710-0402

Hex Bolt 5/16-18 x 4 1/2" Lg

$

$

Not available

21

Cub Cadet 711-0379

Bushing

$

$

Not available

22

Cub Cadet 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 09932

Pivot Bracket Assembly

$

$

Currently unavailable

24

Cub Cadet 09946

Lever Assembly

$

$

Not available

25

Cub Cadet 736-0112

Belleville Washer

$10.99

$

In Stock, only 1 left!

0

26

Cub Cadet 715-0119

Roll Pin 5/32" x 3/4" Lg.

$

$

Not available

27

Cub Cadet 09953

Cam Lever

$

$

Not available

28

Cub Cadet 14340

Guard Assembly

Note: Color Code - 499

$

$

Not available

29

Cub Cadet 711-0383

Stud

$

$

Not available

30

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 09952

Guide

$

$

Not available

32

Cub Cadet 715-0101

Roll Pin 1/4" x 1 1/2" Lg.

$

$

Not available

33

Cub Cadet 732-0188

Tension - Spring
(Superseded to 732-0188A)

$13.99

$

In Stock, only 1 left!

0

34

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 09954

Blade
(Superseded to 09954-0637)

Variations

09954-0637

Cub Cadet 09954-0637

Edger Blade, 1/2-HL - POWDER BLACK (0637)

$22.99

$

In Stock, only 3 left!

0

$22.99

$

In Stock, only 3 left!

0

36

Cub Cadet 712-0200

Hex Elastic Stop Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$7.49

$

In Stock, Qty 8

0

38

Cub Cadet 741-0124

Bearing #203
(Superseded to 941-0600)

$26.99

$

In Stock, Qty 20+

0

39

Cub Cadet 10244

Clamp Bracket

$

$

Not available

40

Cub Cadet 09944

Belt Guard Assembly

$

$

Currently unavailable

41

Cub Cadet 736-0329

L-Wash. 1/4 Scr.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

42

Cub Cadet 710-0599

Hex Wash.-Hd. Thd. Cut Scr. Type "F" 1/4-20 x 1/2 Lg.

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 10330

Spindle Housing

$

$

Not available

44

Cub Cadet 711-0385

Spacer

$

$

Currently unavailable

45

Cub Cadet 711-0384

Spindle

$

$

Currently unavailable

46

Cub Cadet 736-0116

Flat Washer .635 I.D. x .937 O.D. x .060
(Superseded to 936-0116)

$7.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 711-0420

Pulley Spindle

$

$

Currently unavailable

48

Cub Cadet 715-0246

Spiral Pin 3/16 Dia. x 1 1/4" Lg.
(Superseded to 915-0246)

$7.49

$

In Stock, only 2 left!

0

49

Cub Cadet 738-0213

Axle Bolt Front Wheel

$8.49

$

In Stock, only 2 left!

0

50

Cub Cadet 734-0376

Wheel Assembly 7" Dia. - Front

$

$

Currently unavailable

51

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 715-0247

Spiral Pin 3/16" Dia. 1" Lg.
(Superseded to 915-0247)

$

$

Not available

54

Cub Cadet 711-0386

Spacer

$

$

Not available

55

Cub Cadet 711-0147

Shoulder Bolt

$

$

Currently unavailable

56

Cub Cadet 712-0114

Castle Hex Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

57

Cub Cadet 736-0105

Belleville Washer

$4.99

$

In Stock, Qty 6

0

58

Cub Cadet 711-0207

Lock Handle

$

$

Not available

59

Cub Cadet 711-0382

Shaft

$

$

Currently unavailable

60

Cub Cadet 134-0661

Wheel Assembly 8" Dia. - Rear

Note: (2)

$

$

Currently unavailable

61

Cub Cadet 741-0262

Fortiflex Bearing

Note: (2 per Wheel)

$8.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 738-0108

Axle Bolt - Rear
(Superseded to 938-0108)

$7.49

$

In Stock, Qty 5

0

63

Cub Cadet 736-0169

L. Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 11

0

64

Cub Cadet 712-0198

Hex Nut 3/8-16 Thd.

$

$

Currently unavailable

65

Cub Cadet 09930

Base Assembly

Note: Color Code - 499

$

$

Currently unavailable

66

Cub Cadet 09936

Wheel Bracket Assembly

Note: Color Code - 499

$

$

Currently unavailable

67

Cub Cadet 09955

Handle - Lower

$

$

Not available

68

Cub Cadet 726-0187

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

69

Cub Cadet 710-0111

Carriage Bolt 1/4-20 x 1 1/4 Lg.

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

71

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 10112

Handle - Upper

$

$

Currently unavailable

73

Cub Cadet 746-0355

Throttle Control Complete

$

$

Currently unavailable

74

Cub Cadet 746-0232

Conduit and Wire

$

$

Currently unavailable

77

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.99

$

In Stock, Qty 20+

0

78

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1 1/2 Lg.

$5.99

$

In Stock, only 2 left!

0

79

Cub Cadet 718-0144

Grip - Handle

$

$

Currently unavailable

80

Cub Cadet 710-0938

Set Screw 1/4-28 x .25" Lg

$

$

Not available

81

Cub Cadet 726-0111

Push Cap 3/16"

$

$

Not available

82

Cub Cadet 14427

Flap Bracket

$

$

Currently unavailable

83

Cub Cadet 731-0532

Debris Deflector

$

$

Not available

84

Cub Cadet 711-0720

Hinge Pin 3/16" x 1.75" Lg.

$

$

Not available

85

Cub Cadet 710-0701

Truss Screw 10-24 x 2.25

$

$

Currently unavailable

Cub Cadet 10229

Spindle Housing Complete

$

$

Not available
