604 (190-604-101) - Cub Cadet Cub Cadet 48" Dozer Blade 48" Dozer Blade Parts Diagram

Cub Cadet 48" Dozer Blade

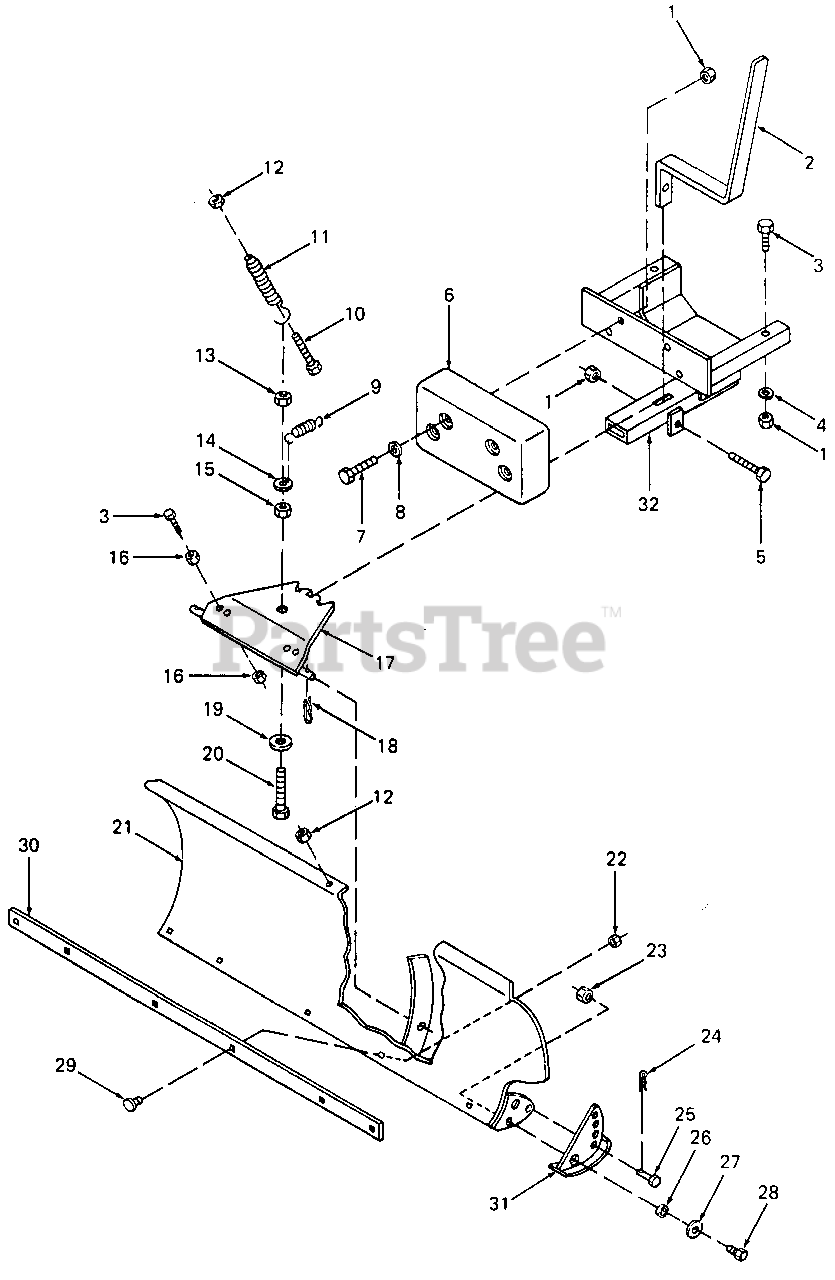

48" Dozer Blade Parts Diagram

  • Title

1

Cub Cadet 712-0384

Nut, Lock, 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet TE-1000639

Handle, Dozer Latch

$

$

Not available

3

Cub Cadet 710-3071

Bolt, Hex, 1/2-13 X 2

$

$

Not available

4

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0786

Bolt, Hex, 1/2-13 X 4

$15.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 723-0367

Weight, Front Counter

$

$

Not available

7

Cub Cadet 710-0382

Bolt, Hex, 1/2-13 X 5

$11.99

$

In Stock, only 2 left!

0

8

Cub Cadet 736-0192

Washer, Flat, 1/2

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 732-0360

Spring, Angle Lock
(Superseded to AF-43348)

$34.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-0693

Bolt, Hex, 3/8-16 X 4-1/2

$13.99

$

In Stock, only 2 left!

0

11

Cub Cadet 732-0359

Spring, Blade Adjustment

$

$

Not available

12

Cub Cadet 712-0798

Nut, Hex Plain, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet TE-9414076

Nut, Lock, 3/4-10
(Superseded to 712-0205)

$

$

Not available

14

Cub Cadet 736-0306

Washer, Flat, 3/4 (Special)

$

$

Not available

15

Cub Cadet 712-0301

Nut, Jam, 3/4-10

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 712-3048

Nut, Jam, 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet TE-1000645

Plate Assembly, Pivot

$

$

Currently unavailable

18

Cub Cadet TE-1000310

Cotter, Hairpin, 1/8 Dia

$

$

Not available

19

Cub Cadet 736-0134

Washer, Flat, 3/4

$3.99

$

In Stock, Qty 11

0

20

Cub Cadet 710-0764

Bolt, Hex, 3/4-10 X 4 (Special)

$

$

Not available

21

Cub Cadet TE-1000642

Blade Assembly, 48 Inch

$

$

Currently unavailable

22

Cub Cadet 712-0158

Nut, Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0375

Nut, Lock, 3/8-16

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet TE-1000653

Cotter, Hairpin, 3/32 Dia

$

$

Currently unavailable

25

Cub Cadet TE-1000355

Pin, Clevis, 5/16 X 3/4

$

$

Currently unavailable

26

Cub Cadet 750-0437

Spacer
(Superseded to AF-42846)

$

$

Not available

27

Cub Cadet 736-0300

Washer, Flat, 3/8

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0514

Bolt, Hex, 3/4-16 X 1

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0451

Bolt, Carriage, 5/16 X 3/4

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 05754

Plate, Wear, 48 Inch

$

$

Not available

31

Cub Cadet 05655

Shoe, Skid

$

$

Not available

32

Cub Cadet TE-1000640

Frame

$

$

Currently unavailable
