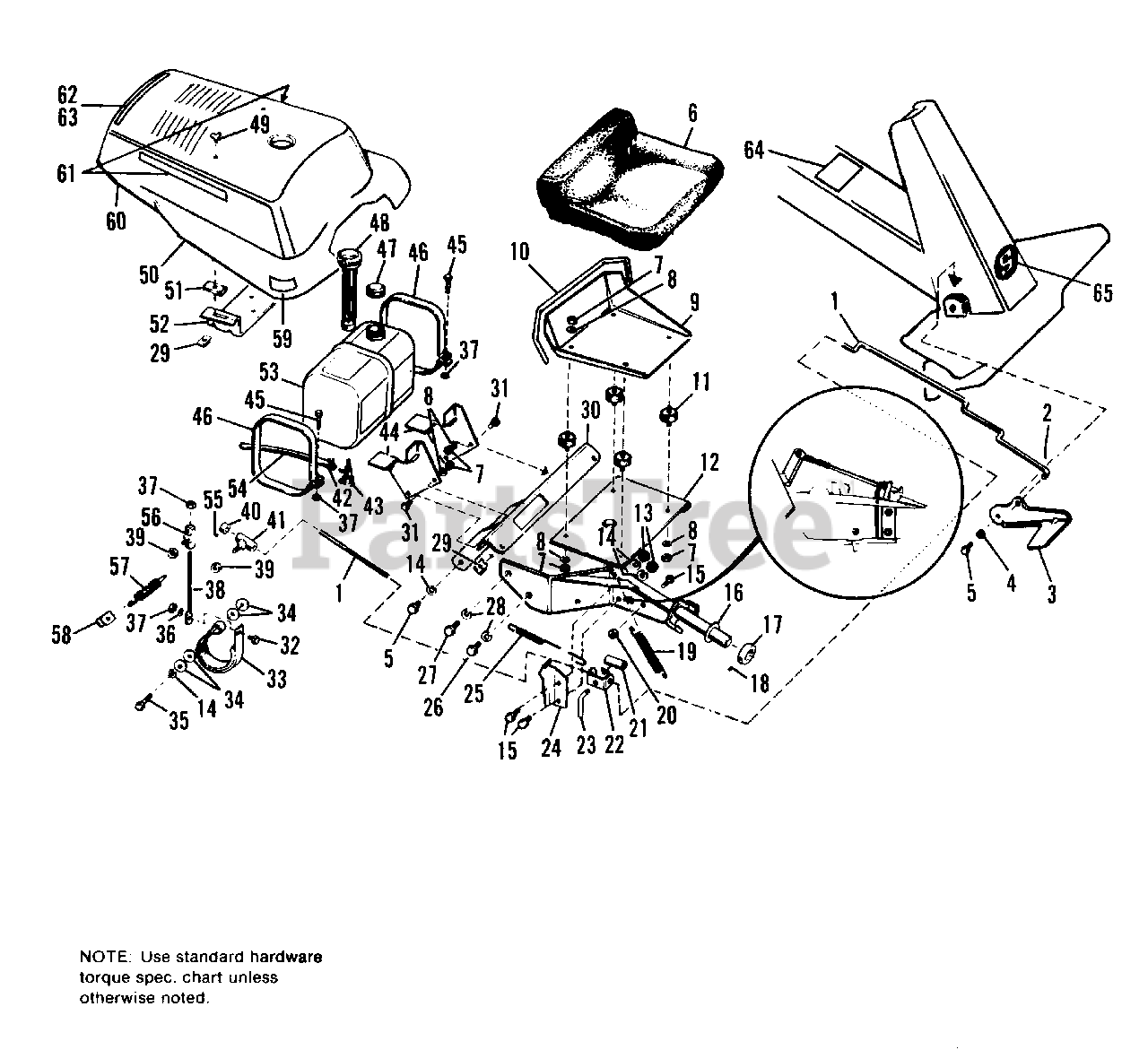

606 Special (990329) - Simplicity Wonderboy Rear-Engine Riding Mower Seat & Brake Group Parts Diagram

Wonderboy Rear-Engine Riding Mower

Seat & Brake Group Parts Diagram

  • Title

1

Simplicity 159060

ROD, Foot Pedal

$

$

Not available

2

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

3

Simplicity 159061

PEDAL, Foot

$

$

Not available

4

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

6

Simplicity 158207

PAD, Seat

$

$

Not available

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 158153

PANEL, Seat

$

$

Not available

10

Simplicity 159177

APE, 2 ft.

$

$

Not available

11

Simplicity 2159085SM

CONNECTOR, Cushion

$10.99

$

In Stock, only 2 left!

0

12

Simplicity 159086

SUPPORT ASSY.

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

15

Simplicity 2822605

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

16

Simplicity 2168055SM

WASHER

$

$

Not available

17

Simplicity 8021028

COLLAR, Set

$

$

Not available

18

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

19

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

20

Simplicity 2828731

LOCKNUT, Jam, 3/8-16

$

$

Not available

21

Simplicity 157287

SPACER

$

$

Not available

22

Simplicity 157277

BRACKET ASSY.

$

$

Not available

23

Simplicity 157088

LOCK, Parking Brake

$

$

Not available

24

Simplicity 159180

BRACE, Brake

$

$

Not available

25

Simplicity 2159181SM

SPRING

$7.49

$

In Stock, only 2 left!

0

26

Simplicity 2818212

CAPSCREW, Hex Hd., 7/16-14 x 1

$

$

Not available

27

Simplicity 2816432

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

28

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

29

Simplicity 2830655

NUT, Speed, 5/16-18

$

$

Not available

30

Simplicity 159038

SUPPORT ASSY., Hood

$

$

Not available

31

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

32

Simplicity 922129

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$

$

Not available

33

Simplicity 2156134SM

BAND ASSY., Brake

$104.99

$

Usually ships in 2-12 days

0

34

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

35

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

36

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

37

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

38

Simplicity 159059

ROD, Brake

$

$

Not available

39

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

40

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

41

Simplicity 156303

GUIDE ASSY., Rod

$

$

Not available

42

Simplicity 2154372

CLAMP, Hose

$

$

Not available

43

Simplicity 2156176SM

VALVE, Shut Off

$20.99

$

Usually ships in 2-12 days

0

44

Simplicity 159083

SUPPORT, Fuel Tank

$

$

Not available

45

Simplicity 2819316

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

46

Simplicity 157002

STRAP, Tank

$

$

Not available

47

Simplicity 154416

CAP, Fuel Tank

$

$

Not available

48

Simplicity 2159135SM

CAP, Fuel Tank
(Superseded to 2156175SM)

$31.99

$

In Stock, only 4 left!

0

49

Simplicity 2828693

SCREW, Thumb

$

$

Not available

50

Simplicity 159074

HOOD

$

$

Not available

51

Simplicity 121399

GASKET, Felt

$

$

Not available

52

Simplicity 159075

BRACKET, Hood

$

$

Not available

53

Simplicity 159082

TANK, Fuel

$

$

Not available

54

Simplicity 2156177

HOSE, Fuel

$

$

Not available

55

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

56

Simplicity 2164094SM

GUIDE ASSY., Rod

$45.99

$

Usually ships in 2-12 days

0

57

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 10

0

58

Simplicity 154119

CLIP, Spring

$

$

Not available

59

Simplicity 159127

DECAL

$

$

Not available

60

Simplicity 159163

TAPE

$

$

Not available

61

Simplicity 159184

DECAL

$

$

Not available

62

Simplicity 159186

DECAL, W.B. Special

$

$

Not available

63

Simplicity 159185

DECAL, W.B. Super

$

$

Not available

64

Simplicity 159130

DECAL

$

$

Not available

65

Simplicity 165098

DECAL

$

$

Not available
