606000001 - Husqvarna 580 Series Dethatcher Kit (1999-12) Service Parts Parts Diagram

580 Series Dethatcher Kit

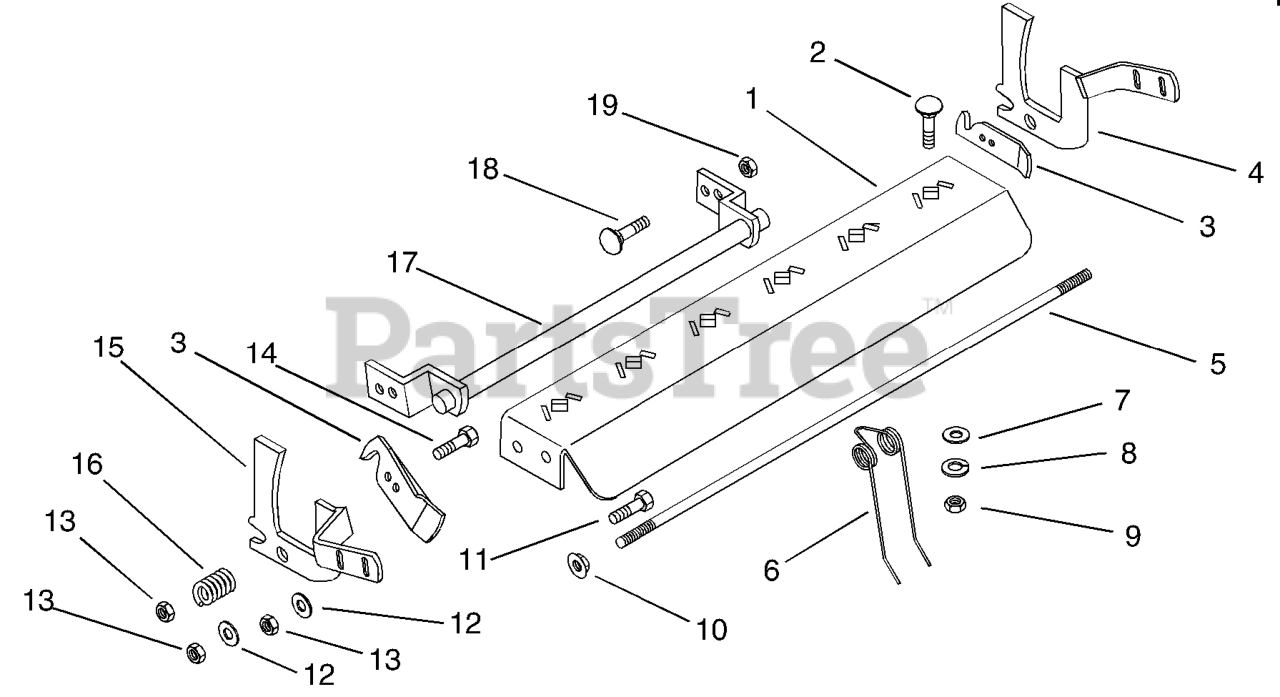

Service Parts Parts Diagram

  • Title

1

Husqvarna 606000257

Tine Plate

$

$

Not available

2

Husqvarna 606000080

Bolt-Round Head Square Neck .31-18 x .75 Grade 2

$

$

Not available

3

Husqvarna 606000258

Axle Bolt

$

$

Not available

4

Husqvarna 606000260

Cam Bracket-Left Hand

$

$

Not available

5

Husqvarna 606000259

Rod, Retention

$

$

Not available

6

Husqvarna 606000262

Tine

$

$

Not available

7

Husqvarna 606000267

Washer-Flat-Steel .328 x 1.0 x .094

$

$

Not available

8

Husqvarna 606000199

Washer-Locking .312 x .097

$

$

Not available

9

Husqvarna 606000205

Nut-Hex .31-18

$

$

Not available

10

Husqvarna 606000088

Nut-Locking-Flange .250-20

$

$

Not available

11

Husqvarna 606000266

Bolt-Hex .25-20 x 1.25 Grade 5

$

$

Not available

12

Husqvarna 606000046

Washer-Flat-Steel .281 x .62 x .065

$

$

Not available

13

Husqvarna 606000049

Nut-Locking-Center .25-20

$

$

Not available

14

Husqvarna 606000267

Bolt-Hex .25-20 x 1.25 Grade 5

$

$

Not available

15

Husqvarna 606000261

Cam Bracket-Right Hand

$

$

Not available

16

Husqvarna 606000269

Spring-Compression .058 x .68 x .75

$

$

Not available

17

Husqvarna 606000270

Dethatcher Retainer Weldment

$

$

Not available

18

Husqvarna 606000127

Bolt-Round Head Square Neck .31-18 x .62

$

$

Not available

19

Husqvarna 606000050

Nut-Locking-Center .31-18
(Superseded to 606000243)

$3.49

$

In Stock, only 1 left!

0
