60C - Cub Cadet 60" Mower Deck Mower Blade Drive Parts Diagram

60" Mower Deck

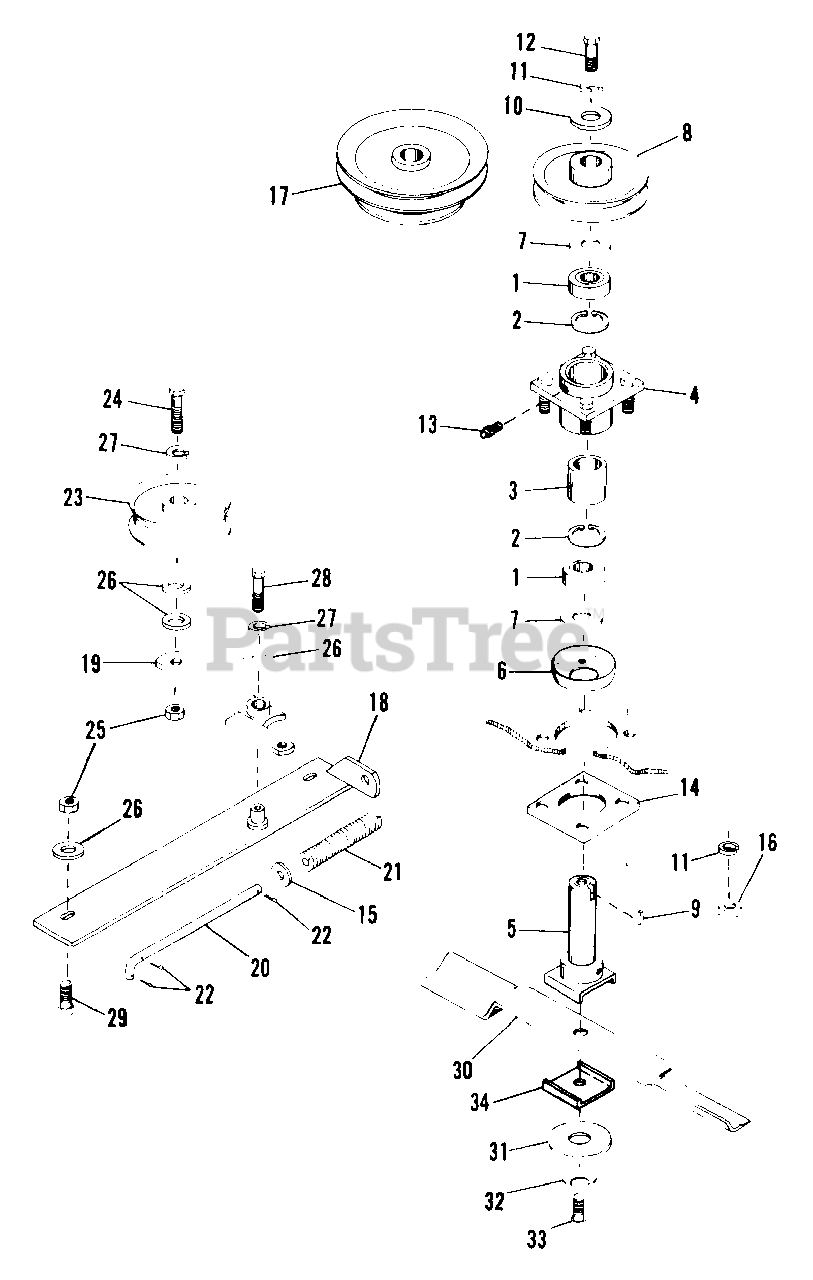

Mower Blade Drive Parts Diagram

  • Title

1

Cub Cadet IH-295109-R91

BEARING, BALL
(Superseded to 941-0301)

$56.99

$

In Stock, only 2 left!

0

2

IH-456736R1

RING, 2.280 INT RET

$

$

Not available

3

Cub Cadet IH-1286686-C1

SPACER
(Superseded to HA-14236)

$

$

Not available

4

Cub Cadet IH-83643-C1

HOUSING, SPINDLE
(Superseded to HA-14648)

$

$

Not available

5

Cub Cadet IH-83644-C1

SHAFT, SPINDLE
(Superseded to HA-20267P)

$293.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-1286687-C1

CUP, HUB BEARING

$

$

Not available

7

Cub Cadet IH-1286688-C1

WASHER
(Superseded to 936-0420)

$

$

Not available

8

Cub Cadet IH-1286689-C1

PULLEY, OUTER
(Superseded to HA-14239)

$

$

Not available

9

Cub Cadet IH-Q-53

KEY, 1/4 x 1 SQ PARALLEL
(Superseded to 714-0128)

$4.99

$

In Stock, only 4 left!

0

10

Cub Cadet IH-3068739-R1

WASHER

$

$

Not available

11

Cub Cadet IH-120384

WASHER, 1/2 LOCK
(Superseded to 936-0921)

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet 181698

BOLT, 1/2-NF x 1-1/4 TYPE 5

$

$

Currently unavailable

13

Cub Cadet IH-19588-R91

FITTING, 1/4 LUB
(Superseded to 937-0146)

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet Q3994

FITTING, 1/8 PTF x/SHORT w/VENT LUB

$

$

Currently unavailable

14

Cub Cadet IH-1286690-C1

PLATE, SPINDLE

$

$

Not available

15

Cub Cadet IH-120396

WASHER, .531 x 1.062 x 074
(Superseded to 936-0272)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet IH-120378

NUT, 1/2 TYPE 5
(Superseded to 912-0206)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet IH-1286691-C1

PULLEY, CENTER

$

$

Not available

18

Cub Cadet IH-1286692-C1

PLATE, IDLER

$

$

Currently unavailable

19

Cub Cadet IH-1286693-C1

ARM, IDLER

$

$

Currently unavailable

20

Cub Cadet IH-1286694-C1

ROD

$

$

Not available

21

Cub Cadet IH-1286695-C1

SPRING

$

$

Not available

22

120123

PIN, 1/8 x 1-1/4 COT

$

$

Not available

23

Cub Cadet IH-1286696-C1

PULLEY, IDLER

$

$

Not available

24

Cub Cadet IH-180128

BOLT, 3/8 x 1-3/4 TYPE 5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 19

0

25

Cub Cadet IH-9411655

NUT, 3/8 CAD P/T LOCK TYPE 5
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet IH-120388

WASHER, .438 x 1.000 x .064
(Superseded to 936-0406)

$7.49

$

In Stock, only 4 left!

0

27

Cub Cadet IH-120382

WASHER, 3/8 LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 11

0

28

Cub Cadet IH-180120

BOLT, 3/8 x 3/4 TYPE 5
(Superseded to 710-0216)

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet IH-180122

BOLT, 3/8 x 1 TYPE 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

30

Cub Cadet IH-83614-C1

BLADE
(Superseded to 759P3411)

$

$

Not available

31

Cub Cadet IH-486801-R1

WASHER
(Superseded to HA-14306)

$

$

Not available

32

Cub Cadet IH-83616-C1

WASHER, SPECIAL
(Superseded to 936-0253)

$

$

Not available

33

Cub Cadet IH-181700

BOLT, 1/2-NF x 1-1/2 TYPE 5

$

$

Not available

34

Cub Cadet IH-1286699-C1

RETAINER, BLADE

$

$

Not available

Cub Cadet IH-83645-C91

GRAPHICS PRODUCT PACKAGE

Note: CONSISTS OF PRODUCT GRAPHICS: DANGER (83639C-1 & 83640-C1); IDLER ADJ

$

$

Not available

Cub Cadet IH-83639-C1

PRODUCT GRAPHIC, DANGER
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet IH-83640-C1

PRODUCT GRAPHIC, DANGER
(Superseded to 777S30118)

$11.99

$

In Stock, only 1 left!

0

PRODUCT GRAPHIC, IDLER ADJ

$

$

Not available
