61-08K803 (B-80) - Toro Lawn Tractor (1976) Kohler 12 H.p. Engine K301s, Spec 47421d Parts Diagram

Lawn Tractor

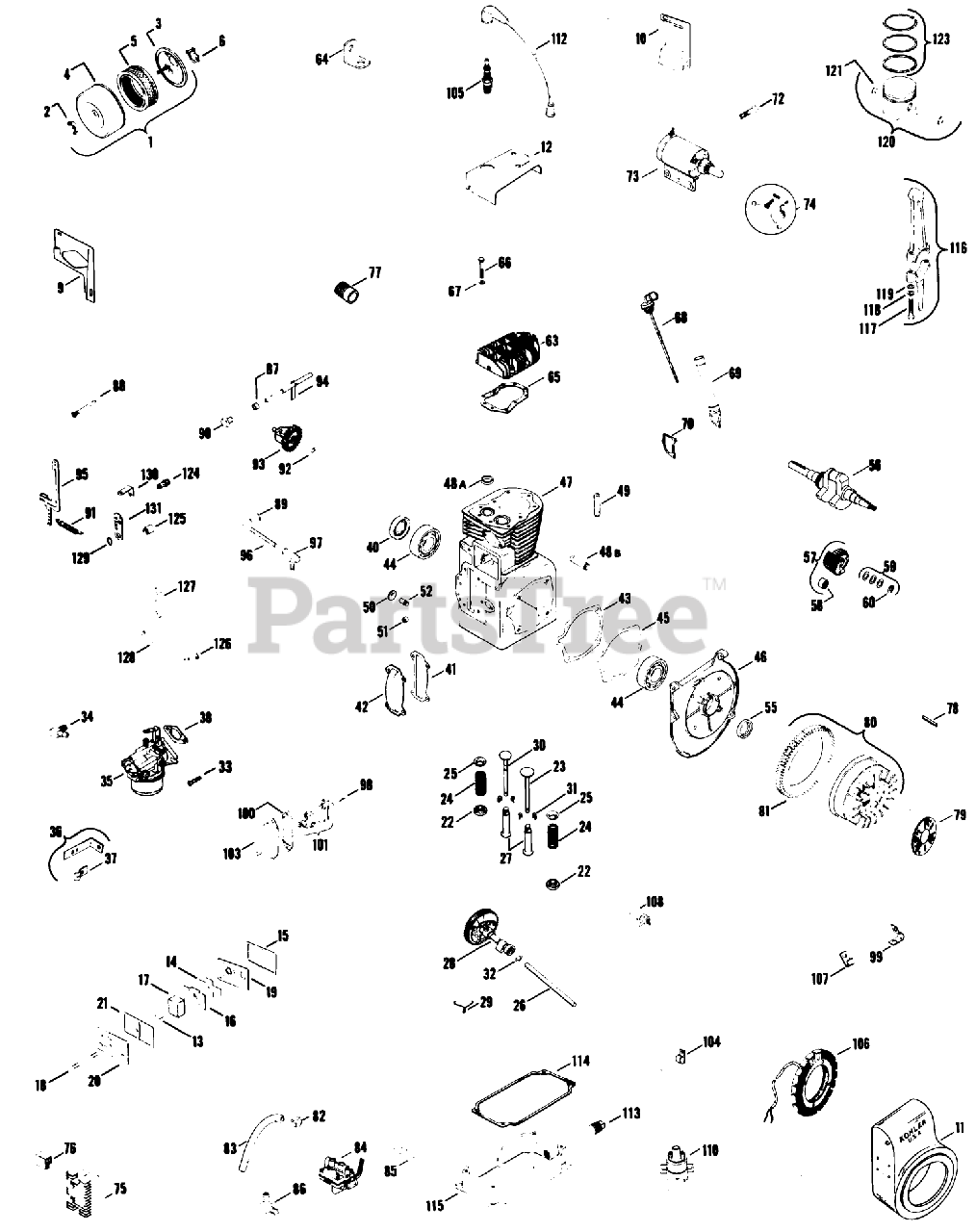

Kohler 12 H.p. Engine K301s, Spec 47421d Parts Diagram

  • Title

1

Toro A-235100

Cleaner-Air Assembly

$

$

Currently unavailable

2

Toro X-276-7

Nut-Wing

$

$

Currently unavailable

3

Toro 235101

Base-Air Cleaner

$

$

Currently unavailable

4

Toro 235102

Cover-Air Cleaner

$

$

Currently unavailable

5

Toro 235116

Element

$

$

Currently unavailable

6

Toro 275341

Gasket-Air Horn

$

$

Currently unavailable

9

Toro 235652

BaffLe side air

$

$

Currently unavailable

10

Toro 236676

Baffle cylinder

$

$

Currently unavailable

11

Toro 236680

Housing-Blower

$

$

Not available

12

Toro 237677

Baffle-Head
(Superseded to 740975)

$

$

Not available

13

Toro 231032

Seal

$

$

Not available

14

Toro 235047

Reed

$

$

Currently unavailable

15

Toro 235048

Gasket

$

$

Currently unavailable

16

Toro 235117

Baffle breather

$

$

Currently unavailable

17

Toro 235118

Filter Breather

$

$

Currently unavailable

18

Toro 235551

Stud, valve cover

$

$

Currently unavailable

19

Toro 235631

Plate

$

$

Currently unavailable

20

Toro 275143

Cover valve

$

$

Currently unavailable

21

Toro 275144

Gasket

$

$

Currently unavailable

22

Toro 230011

Retainer-Spring

$

$

Currently unavailable

23

Toro 235008

Valve-Intake

$

$

Currently unavailable

24

Toro 235010

Spring

$

$

Currently unavailable

25

Toro 235011

Retainer-Spring

$

$

Currently unavailable

26

Toro 235053

Pin (Service)

$

$

Currently unavailable

27

Toro D-235327

Tappet

$

$

Currently unavailable

28

Toro E-235646

Camshaft-assembly

$

$

Currently unavailable

29

Toro 47_089_01

Spring-Actuating

$

$

Currently unavailable

30

Toro 235826

Valve, exhaust

$

$

Currently unavailable

31

Toro 240013

Keeper, Valve

$

$

Currently unavailable

32

Toro 275066

Spacer

$

$

Currently unavailable

32

Toro 275067

Spacer

$

$

Currently unavailable

33

Toro X-770-1

Screw sitd. hd.

$

$

Currently unavailable

34

Toro X-391-1

Elbow

$

$

Currently unavailable

35

Toro A-237772

Carburetor-assembly

$

$

Currently unavailable

35

Toro 231555

Repairkit

$

$

Not available

36

Toro A-236921

Bracket, choke

$

$

Currently unavailable

37

Toro 235778

Clip

$

$

Currently unavailable

38

Toro 271030

Gasket

$

$

Currently unavailable

40

Toro X-379-9

Seal rear oil

$

$

Currently unavailable

41

Toro 235025

Gasket

$

$

Currently unavailable

42

Toro 235026

Cover

$

$

Currently unavailable

43

Toro 235070

Gasket

$

$

Currently unavailable

44

Toro 235376

Ball Bearing

$

$

Currently unavailable

45

Toro 235757

Gasket

$

$

Currently unavailable

46

Toro 45_156_02

Plate Bearing

$

$

Currently unavailable

47

Block, cylinder-assembly (Use B-237416 Miniblock)

$

$

Not available

48A

Toro 230170

Insert

$

$

Currently unavailable

48B

Toro 236559

Shaft
(Superseded to 740883)

$

$

Not available

49

Toro 235007-S

Guide Valve

$

$

Currently unavailable

50

Toro X-230-11

Plug

$

$

Currently unavailable

51

Toro 234866

Bearing
(Superseded to 700765)

$

$

Not available

52

Toro 235125-S

Shaft-Govemor

$

$

Currently unavailable

55

Toro X-271-30

Seal, Front OiI

$

$

Currently unavailable

56

Toro B-235837

Crankshaft

$

$

Currently unavailable

57

Toro A-236507

Gear

$

$

Currently unavailable

58

Toro 236506

Bearing,needle

$

$

Currently unavailable

59

Toro 47_755_01

Kit-Spacer

$

$

Currently unavailable

60

Toro X-269-34

Retainer

$

$

Currently unavailable

63

Toro 237670

Belt Guide
(Superseded to 702796)

$

$

Not available

64

Toro 236742

Lift Cable
(Superseded to 707068)

$

$

Not available

65

Toro 237658

Gasket-Head

$

$

Currently unavailable

66

Toro 270158

Screw

$

$

Currently unavailable

66

Toro 270721

Screw-H.C.

$

$

Currently unavailable

67

Toro 270889

Washer

$

$

Currently unavailable

68

Toro 237052

Dipstick

$

$

Currently unavailable

69

Toro 236964

Tube, fill

$

$

Currently unavailable

70

Toro 237064

Gasket

$

$

Not available

72

Toro 234948

Screw

$

$

Currently unavailable

73

Toro A-237534

Starter

$

$

Currently unavailable

74

Toro 237367

Kit, Brush Spring

$

$

Currently unavailable

75

Toro 237335

Regulator

$

$

Currently unavailable

76

Toro 237429

Connector

$

$

Currently unavailable

77

Toro X-229-1

Nipple

$

$

Currently unavailable

77

Toro X-25-88

Washer

$

$

Currently unavailable

77

Toro X-119-14

Nut

$

$

Currently unavailable

78

Toro X-236-15

Key

$

$

Currently unavailable

79

Toro 47_162_03

Screen grass

$

$

Currently unavailable

80

Toro 47_025_08

Flywheel-Assembly

$

$

Currently unavailable

81

Toro 236285

Gear Ring

$

$

Currently unavailable

82

Toro X-426-9

Clamp

$

$

Currently unavailable

83

Toro X-697-1

Line Fuel

$

$

Currently unavailable

84

Toro A-235845

Pump, fuel

$

$

Currently unavailable

85

Toro 47_041_01

Gasket, pump

$

$

Currently unavailable

86

Toro X-391-1

Elbow

$

$

Currently unavailable

87

Toro X-400-80

Spacer

$

$

Currently unavailable

88

Toro 231355

Pin-GovemorStop

$

$

Currently unavailable

89

Toro 235278

Retainer Rod

$

$

Currently unavailable

90

Toro 235476

Bushing

$

$

Currently unavailable

91

Toro 235496

Spring-Governor

$

$

Currently unavailable

92

Toro 237022

Washer
(Superseded to 702363)

$

$

Not available

93

Toro A-237031

Gear, Governor

$

$

Currently unavailable

94

Toro 237455

Shaft, Governor
(Superseded to 741044)

$

$

Not available

95

Toro A-237653

Lever, Governor

$

$

Currently unavailable

96

Toro 235277

Rod ball joint
(Superseded to 146439)

$106.99

$

Usually ships in 3-6 days

0

97

Toro 237130

Ball Joint

$

$

Currently unavailable

98

Toro X-489-1

Rod, breaker

$

$

Currently unavailable

99

Toro X-728-1

Clip

$

$

Currently unavailable

100

Toro 220174

Gasket, Cover

$

$

Currently unavailable

101

Toro A-220474

Breaker

$

$

Currently unavailable

103

Toro A-220136

Cover breaker

$

$

Currently unavailable

104

Toro 234511

Clip
(Superseded to 700797)

$

$

Not available

105

Toro 235040-S

Plug, spark

$

$

Currently unavailable

106

Toro 237878

Stator
(Superseded to 701518)

$

$

Not available

107

Toro 275182

Clip

$

$

Currently unavailable

108

Toro 230722

Condenser

$

$

Currently unavailable

110

Toro 231281

Coil
(Superseded to 702421)

$

$

Not available

112

Toro 238057

Kit, Hi-Tension

$

$

Currently unavailable

113

Toro X-75-10

Plug

$

$

Currently unavailable

114

Toro 235057

Gasket

$

$

Currently unavailable

115

Toro 237763

Base, oil pan

$

$

Currently unavailable

116

Toro A-237344

Rod, Connecting

$

$

Currently unavailable

117

Toro 47_086_01

Screw, connecting rod

$

$

Currently unavailable

118

Toro X-22-1

Washer

$

$

Currently unavailable

119

Toro 235003

Washer

$

$

Currently unavailable

120

Toro A-235827

Piston-assembly (Std.) (Includes pin retainers)

$

$

Currently unavailable

120

Toro A-235864

Piston-assembly (.003) (Includes pin retainers)

$

$

Currently unavailable

120

Toro A-235865

Piston-assembly (.010) (Includes pin retainers)

$

$

Currently unavailable

120

Toro A-235866

Piston-assembly (.020) (Includes pin retainers)

$

$

Currently unavailable

120

Toro A-235867

Piston-assembly (.030) (Includes pin retainers)

$

$

Currently unavailable

121

Toro 235811

Pin, Retainer

$

$

Currently unavailable

123

Toro 235889

Ring set-Std. .003 (Svc.)
(Superseded to 706920)

$

$

Not available

123

Toro 235890

Ring set-.010 (Service)
(Superseded to 743691)

$

$

Not available

123

Toro 235891

Ring set-.020 (Service)

$

$

Currently unavailable

123

Toro 235892

Ring set-.030 (Service)
(Superseded to 706921)

$

$

Not available

124

Toro 231052

Clamp, swivel wire

$

$

Currently unavailable

125

Toro 235085

Spacer

$

$

Not available

126

Toro 235278

Retainer Rod

$

$

Currently unavailable

127

Toro 235550

Bellcrank
(Superseded to 740727)

$

$

Not available

128

Toro 235756

Rod, throttle

$

$

Currently unavailable

129

Toro 275690

Washer

$

$

Currently unavailable

130

Toro 235084

Spacer

$

$

Currently unavailable

131

Toro 235086

Bracket

$

$

Currently unavailable

131

Toro 237727

Gasket Set
(Superseded to 701170)

$342.99

$

Usually ships in 3-6 days

0

131

Toro B-237416

Miniblock

$

$

Currently unavailable

131

Toro C-237530

Short Block

$

$

Currently unavailable

131

Toro 47460

Service Engine

$

$

Currently unavailable
