61-08K803 (B-80) - Toro Lawn Tractor (1976) Kohler 8 H.p. Engine K181s, Spec 30629d Parts Diagram

Lawn Tractor

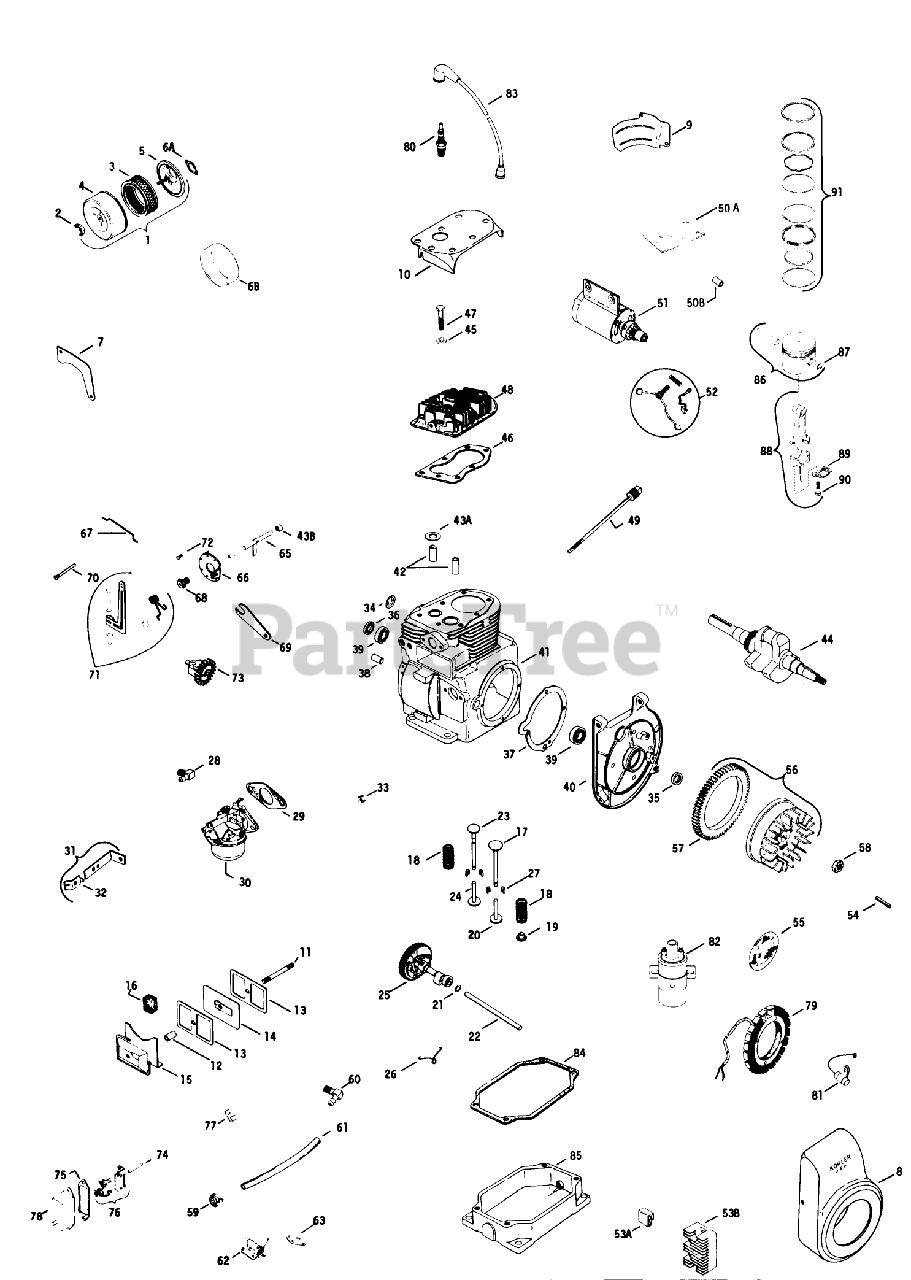

Kohler 8 H.p. Engine K181s, Spec 30629d Parts Diagram

  • Title

1

Toro A-231886

Cleaner, air-assembly

$

$

Currently unavailable

2

Toro X-276-7

Nut-Wing

$

$

Currently unavailable

3

Toro 231847

Element, Air Cleaner

$

$

Currently unavailable

4

Toro 231855

Valve-Needle, Float

$

$

Currently unavailable

5

Toro 231857

Base, Air Cleaner

$

$

Currently unavailable

6A

Toro 220537

Gasket

$

$

Currently unavailable

6B

Toro 234869

Element, Pre-Cleaner
(Superseded to 706836)

$

$

Not available

7

Toro 230757

Baffle side air

$

$

Currently unavailable

8

Toro 234315

Housing, blower

$

$

Currently unavailable

9

Toro 234795

Baffle cylinder

$

$

Not available

10

Toro 234796

Baffle, Head

$

$

Not available

11

Toro 230043

Stud valve cover

$

$

Currently unavailable

12

Toro 230046

DISCONTINUED
(Superseded to 706394)

$

$

Not available

13

Toro 230048

Gasket-Valve Cover

$

$

Not available

14

Toro 230066

Breather

$

$

Currently unavailable

15

Toro A-234678

Cover, Valve

$

$

Currently unavailable

16

Toro 231419

Filter

$

$

Currently unavailable

17

Toro 230008

Valve-Intake
(Superseded to 742562)

$

$

Not available

18

Toro 230010

Spring, Valve

$

$

Currently unavailable

19

Toro 230011

Retainer-Spring

$

$

Currently unavailable

20

Toro 230013

Tappet, Valve

$

$

Currently unavailable

21

Toro 230293

Spacer camshaft .005

$

$

Currently unavailable

21

Toro 230294

Spacer, Camshaft.010

$

$

Currently unavailable

22

Toro 230053

Pin, Camshaft

$

$

Currently unavailable

23

Toro 230710

Valve, exhaust

$

$

Currently unavailable

24

Toro 232777

Tappet-Exhaust Valve

$

$

Currently unavailable

25

Toro A-230155-S

Kit, camshaft

$

$

Currently unavailable

26

Toro 47-089-01

Spring

$

$

Currently unavailable

27

Toro 240013

Keeper, Valve

$

$

Currently unavailable

28

Toro X-391-1

Elbow

$

$

Currently unavailable

29

Toro 210223

Gasket-Carburetor
(Superseded to 740685)

$

$

Not available

30

Toro 8-231739

Carburetor-assembly

$

$

Currently unavailable

30

Toro 231555

Repairkit

$

$

Not available

31

Toro A-236921

Bracket, choke

$

$

Currently unavailable

32

Toro 235778

Clip

$

$

Currently unavailable

33

Toro X-75-3

Plug

$

$

Currently unavailable

34

Toro X-230-11

Plug

$

$

Currently unavailable

35

Toro X-583-1

Seal Front Oil

$

$

Currently unavailable

36

Toro X-583-2

Seal Rear Oil

$

$

Currently unavailable

37

Toro 230071

Gasket

$

$

Currently unavailable

38

Toro 230125-S

Pin-Dowel

$

$

Currently unavailable

39

Toro 231625

Ball Bearing

$

$

Currently unavailable

40

Toro 41_156_03

Plate, Bearing

$

$

Currently unavailable

41

Block, cylinder-assembly (Use B-234989 Miniblock)

$

$

Not available

42

Toro 230007-S

Guide-Valve

$

$

Currently unavailable

43A

Toro 230170

Insert

$

$

Currently unavailable

43B

Toro 234866

Bearing
(Superseded to 700765)

$

$

Not available

44

Toro 231767

Crankshaft

$

$

Currently unavailable

45

Toro 220534

Washer

$

$

Currently unavailable

46

Toro 230024

Gasket, head

$

$

Currently unavailable

47

Toro 230175

Screw, H.C. 5/16-18 x 1-1/2

$

$

Currently unavailable

48

Toro 230402

Head, Cylinder

$

$

Currently unavailable

49

Toro A-230092

Dipstick

$

$

Currently unavailable

50A

Toro 41-088-01

Bracket, coil

$

$

Currently unavailable

50B

Toro X-400-79

Spacer

$

$

Currently unavailable

51

Toro 41-098-01

Starter

$

$

Currently unavailable

52

Toro 237367

Kit, Brush Spring

$

$

Currently unavailable

53A

Toro 237429

Connector

$

$

Currently unavailable

53B

Toro 237335

Regulator

$

$

Currently unavailable

54

Toro X-286-15

Key

$

$

Currently unavailable

55

Toro 234392

Screen, grass

$

$

Currently unavailable

56

Toro A-234807

Flywheel

$

$

Currently unavailable

57

Toro 232649

Gear Ring

$

$

Currently unavailable

58

Toro X-119-14

Nut

$

$

Currently unavailable

59

Toro X-426-9

Clamp

$

$

Currently unavailable

60

Toro X-391-1

Elbow

$

$

Currently unavailable

61

Toro X-697-6

Line, Fuel

$

$

Currently unavailable

62

Toro A-231796

Pump, fuel

$

$

Currently unavailable

63

Toro 47-041-01

Gasket, fuel pump

$

$

Currently unavailable

65

Toro 230540-S

Shaft-Governor Cross

$

$

Currently unavailable

66

Toro 231329

Disc, regulating

$

$

Currently unavailable

67

Toro 230078

Link-Governor

$

$

Not available

68

Toro 230476

Bushing Governor
(Superseded to 153813)

$

$

Not available

69

Toro 230557

Bracket, speed control

$

$

Currently unavailable

70

Toro 231355

Pin-GovemorStop

$

$

Currently unavailable

71

Toro A-234178

Lever, Governor

$

$

Currently unavailable

72

Toro X-67-5

Pin

$

$

Currently unavailable

73

Toro A-237031

Gear, Governor

$

$

Currently unavailable

74

Toro X-489-2

Rod, Breaker

$

$

Currently unavailable

75

Toro 220174

Gasket, Cover

$

$

Currently unavailable

76

Toro A-220474

Breaker

$

$

Currently unavailable

77

Toro 230249

Clip

$

$

Not available

78

Toro A-220136

Cover breaker

$

$

Currently unavailable

79

Toro 237878

Stator
(Superseded to 701518)

$

$

Not available

80

Toro 270321-S

Spark plug

$

$

Currently unavailable

81

Toro 230722

Condenser

$

$

Currently unavailable

82

Toro 231281

Coil
(Superseded to 702421)

$

$

Not available

83

Toro 238057

Kit, Hi-Tension

$

$

Currently unavailable

84

Toro 230057

Gasket, pan

$

$

Currently unavailable

85

Toro 231417

Pan, oil

$

$

Currently unavailable

86

Toro A-234950

Piston-assembly--Std. (Includes pin ret1ainers)

$

$

Currently unavailable

86

Toro A-234952

Piston-assembly (.003) (Includes pin retainers)

$

$

Currently unavailable

86

Toro A-234954

Piston-assembly (.010) (Includes pin retainers)

$

$

Currently unavailable

86

Toro A-234956

Piston-assembly (.020) (Includes pin retainers)

$

$

Currently unavailable

86

Toro A-234958

Piston-assembly (.030) (Includes pin retainers)

$

$

Currently unavailable

87

Toro 230004

Retainer, Pin

$

$

Currently unavailable

88

Toro A-231801

Rod, Connecting Std.

$

$

Currently unavailable

88

Toro A-231801-10

Rod, Connecting .010

$

$

Currently unavailable

89

Toro 230525

Lock, Conn. Rod

$

$

Currently unavailable

90

Toro 230526

90A9-5/66734 SENSAT

$3.23

$

Usually ships in 3-6 days

0

91

Toro 232575

Ring Set Std.

$

$

Currently unavailable

91

Toro 232576

Ring Set .010

$

$

Currently unavailable

91

Toro 232577

Ring Set.020

$

$

Currently unavailable

91

Toro 232578

Ring Set .030

$

$

Currently unavailable

91

Toro 230165

Gasket Set

$

$

Currently unavailable

91

Toro 30538

Service Engine

$

$

Currently unavailable

91

Toro B-234989

Miniblock

$

$

Currently unavailable
