61-16KS01 (C-160) - Toro Lawn Tractor (1976) 11.000 ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

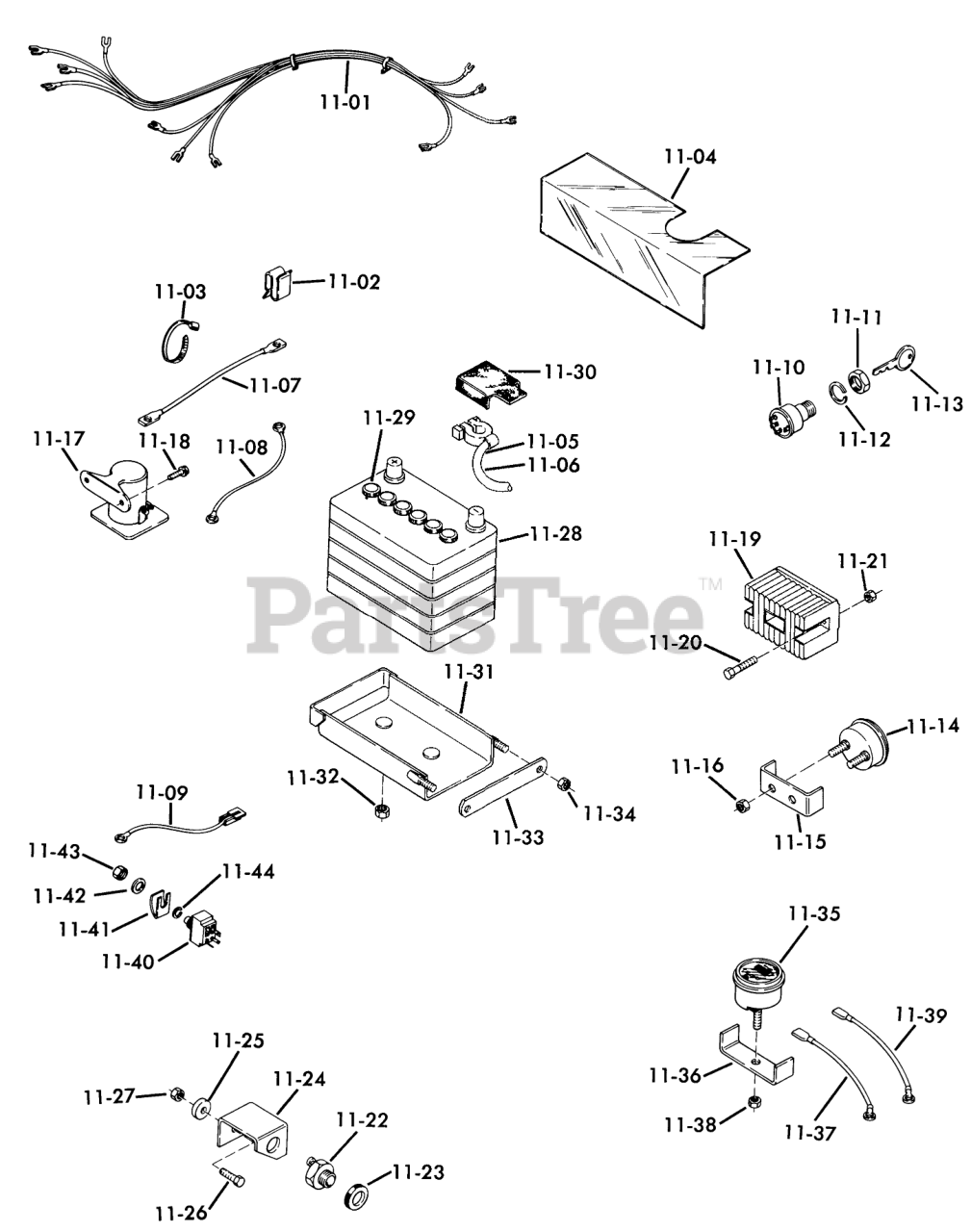

11.000 ELECTRICAL SYSTEM Parts Diagram

  • Title

11-01

Toro 104703

WIRING HARNESS & DIA

$

$

Not available

11-02

Toro 3023

SPEED CLIP

$

$

Not available

11-03

Toro 100571

PLASTIC TIE

$

$

Not available

11-04

Toro 101446

CONTROL PROTECTOR

$

$

Not available

11-05

Toro 100446

Wire-Ground
(Superseded to 105272)

$

$

Not available

11-06

Toro 101972

WIRE SOLENOID

$

$

Not available

11-07

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11-08

Toro 102250

WIRE ASSY

$

$

Not available

11-09

Toro 102251

Wire Assy.

$

$

Not available

11-10

Toro 103990

SWITCH-IGNITION

$27.99

$

In Stock, Qty 12

0

11-11

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

11-12

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

11-13

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

11-14

Toro 102046

AMMETER W/CLAMP

$

$

Not available

11-15

Toro 102047

Clamp
(Superseded to 109604)

$

$

Not available

11-16

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

11-17

Toro 8658

Solenoid
(Superseded to 108544)

$116.99

$

In Stock, only 1 left!

0

11-18

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

11-19

Toro 101450

REGULATOR-RECTIFIER

$337.99

$

Usually ships in 3-6 days

0

11-20

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

11-21

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

11-22

Toro 101845

SWITCH SAFETY

$91.99

$

Usually ships in 3-6 days

0

11-23

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

11-24

Toro 101827

Bracket

$

$

Not available

11-25

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0

11-26

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

11-27

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

11-28

Toro 104961

BATTERY

$

$

Not available

11-29

Toro 100438

Cap

$

$

Not available

11-30

Toro 9155

Cover Battery Term
(Superseded to 107383)

$

$

Not available

11-31

Toro 7781

BATTERY BOX ASSY R (NS)

$

$

Not available

11-32

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11-33

Toro 7779

LINK BATTERY CLAMP

$58.99

$

Usually ships in 3-6 days

0

11-34

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

11-35

Toro 103717

Hour Meter
(Superseded to 108767)

$455.99

$

Usually ships in 3-6 days

0

11-36

Toro 103718

Clamp

$

$

Not available

11-37

Toro 103726

SY WIRE HR METER G

$

$

Not available

11-38

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

11-39

Toro 104031

Wire Assy

$

$

Not available

11-40

Toro 104680

SWITCH-CLUTCH

$125.99

$

Usually ships in 3-6 days

0

11-41

Toro 104681

CLIP-SWITCH

$2.49

$

Usually ships in 3-6 days

0

11-42

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

11-43

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11-44

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0
