61-16KS01 (C-160) - Toro Lawn Tractor (1976) 7.000 HITCH ASSEMBLIES Parts Diagram

Lawn Tractor

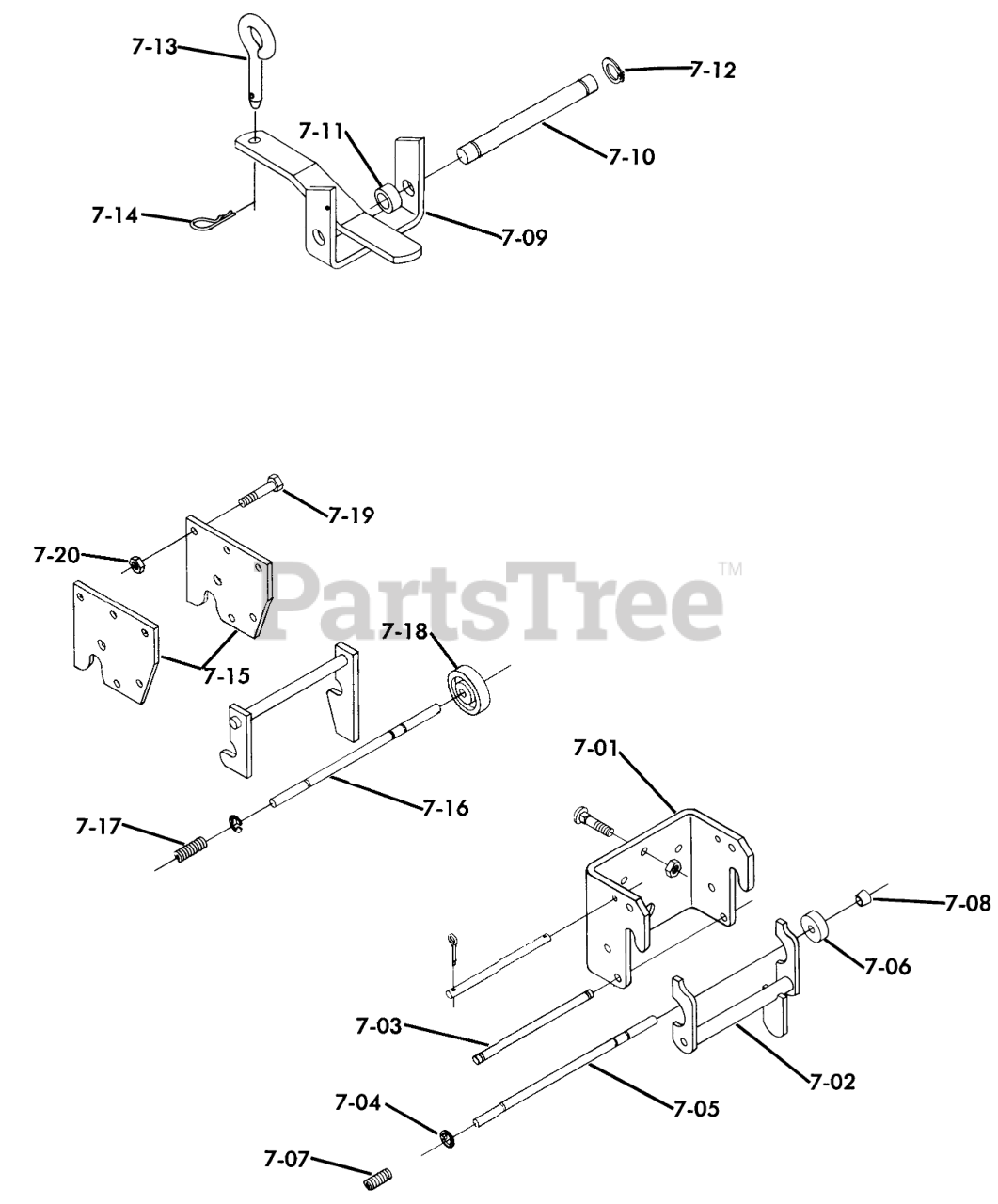

7.000 HITCH ASSEMBLIES Parts Diagram

  • Title

7-01

Toro 101711

Front Hitch
(Superseded to 101711-01)

$121.99

$

Usually ships in 3-6 days

0

7-02

Toro 101741

Latch Assembly
(Superseded to 93-1613)

$

$

Not available

7-03

Toro 101750

ROD-LATCH PIVOT

$

$

Not available

7-04

Toro MW-4564

Lock Rod

$

$

Currently unavailable

7-05

Toro 101751

ROD-LOCK

$28.99

$

Usually ships in 3-6 days

0

7-06

Toro 101707

LOCK

$

$

Not available

7-07

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

7-08

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

7-09

Toro 1644

Hitch
(Superseded to 98-8083-01)

$104.99

$

Usually ships in 3-6 days

0

7-10

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

7-11

Toro 979120

Spacer
(Superseded to 9791204)

$

$

Not available

7-12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

7-13

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available

7-14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

7-15

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$33.99

$

Usually ships in 3-6 days

0

7-16

Toro 102672

Knob

$

$

Not available

7-17

Toro 102639

ASSY MID HITCH LA R
(Superseded to 102639-01)

$

$

Not available

7-18

Toro 101017

LOCK

$32.99

$

Usually ships in 3-6 days

0

7-19

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

7-20

Toro 915113

Nut
(Superseded to 32153-2)

$

$

Not available
