61-20RG01 (D-250) - Toro Lawn Tractor (1977) CARBURETOR-"SOLEX" Parts Diagram

Lawn Tractor

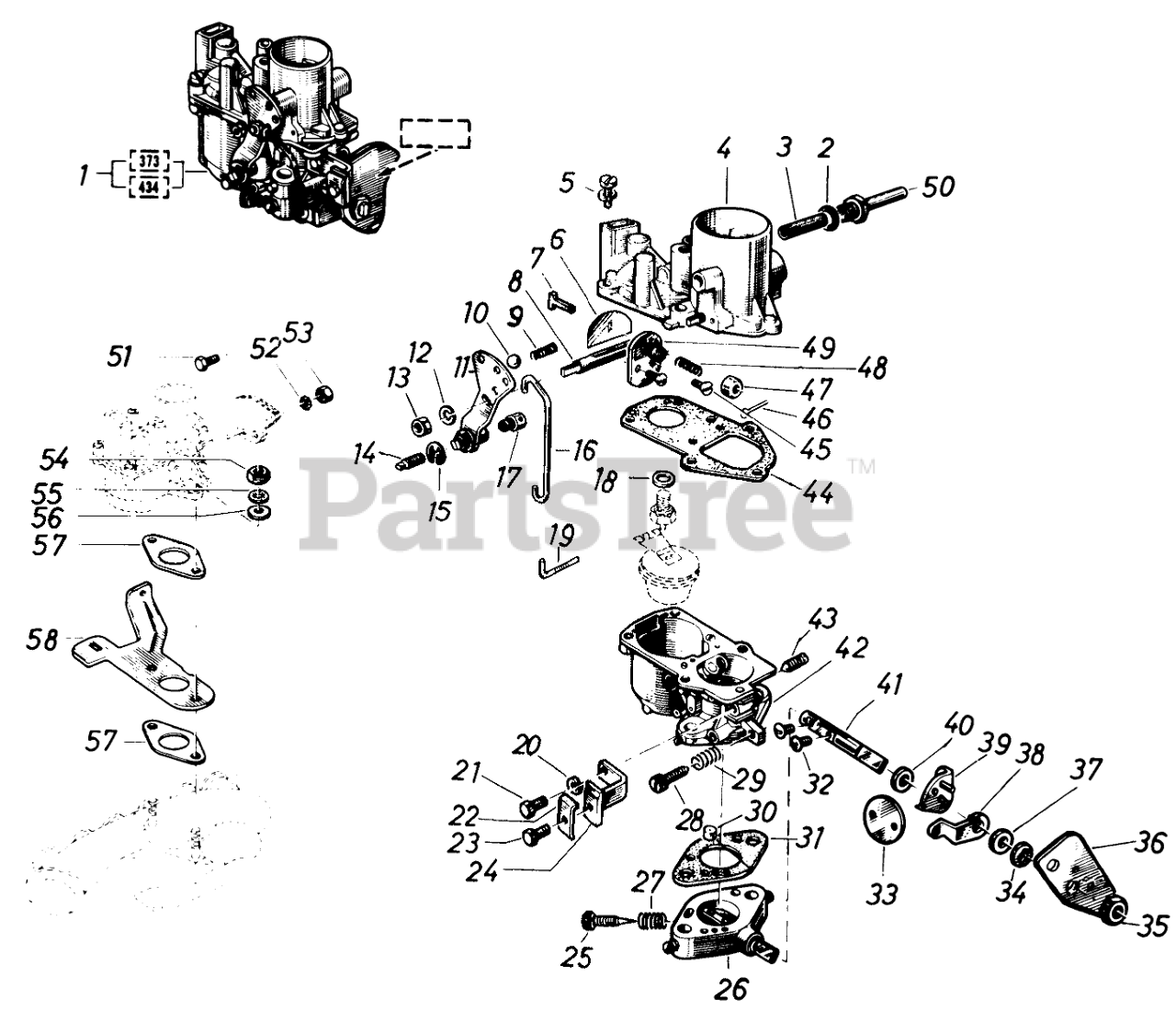

CARBURETOR-"SOLEX" Parts Diagram

  • Title

1

Toro 250525

Carburetor "Solex" Assy

$

$

Not available

2

Toro 250643

Gasket

$

$

Not available

3

Toro 250644

Filter

$

$

Not available

4

Toro 250645

Carburetor Housing Upper Part

$

$

Not available

5

Toro 250646

Screw with Lock Washer

$

$

Not available

6

Toro 250647

Choke Flap Valve

$

$

Not available

7

Toro 250648

Choke Valve Guide Pin

$

$

Not available

8

Toro 250650

Choke Shaft

$

$

Not available

9

Toro 250649

Spring

$

$

Not available

10

Toro 250651

Ball

$

$

Not available

11

Toro 250652

Lever

$

$

Not available

12

Toro 250653

Lock Washer

$

$

Not available

13

Toro 250654

Nut

$

$

Not available

14

Toro 250655

Stud

$

$

Not available

15

Toro 250887

Lock Washer

$

$

Not available

16

Toro 250656

Rod

$

$

Not available

17

Toro 250657

Screw

$

$

Not available

18

Toro 250658

Gasket

$

$

Not available

19

Toro 250659

Float Pin

$

$

Not available

20

Toro 250653

Lock Washer

$

$

Not available

21

Toro 250660

Screw

$

$

Not available

22

Toro 250661

Clamp

$

$

Not available

23

Toro 250660

Screw

$

$

Not available

24

Toro 250662

Bracket

$

$

Not available

25

Toro 250663

Adjusting Screw

$

$

Not available

26

Toro 250664

HSG W/ THROTTLE VALV

$

$

Not available

27

Toro 250665

Spring

$

$

Not available

28

Toro 250666

Adjusting Screw

$

$

Not available

29

Toro 250665

Spring

$

$

Not available

30

Toro 250667

Pin

$

$

Not available

31

Toro 250668

Gasket

$

$

Not available

32

Toro 250669

Screw

$

$

Not available

33

Toro 250670

Throttle Valve

$

$

Not available

34

Toro 250671

Washer

$

$

Not available

35

Toro 250672

Nut

$

$

Not available

36

Toro 250191

Carburetor Lever

$

$

Not available

37

Toro 250673

Ring

$

$

Not available

38

Toro 250674

Lever

$

$

Not available

39

Toro 250675

Stop Lever

$

$

Not available

40

Toro 250994

Gasket Ring

$

$

Not available

41

Toro 250676

Throttle Shaft

$

$

Not available

42

Toro 250677

Float Case

$

$

Not available

43

Toro 250678

Jet Screw

$

$

Not available

44

Toro 250679

Gasket

$

$

Not available

45

Toro 250680

Screw

$

$

Not available

46

Toro 250681

Pin

$

$

Not available

47

Toro 250682

Cap

$

$

Currently unavailable

48

Toro 250683

Spring

$

$

Not available

49

Toro 250684

Choke Valve

$

$

Not available

50

Toro 250685

Gas Line Fitting

$

$

Not available

51

Toro 250899

Screw

$

$

Not available

52

Toro 250900

Washer

$

$

Not available

53

Toro 250901

Nut

$

$

Not available

54

Toro 250534

Nut

$

$

Not available

55

Toro 250902

Washer

$

$

Not available

56

Toro 250904

Washer

$

$

Not available

57

Toro 250905

Gasket

$

$

Not available

58

Toro 250906

Bracket

$

$

Not available
