61-20RG01 (D-250) - Toro Lawn Tractor (1977) Frame (front And Rear P.t.o.) Parts Diagram

Lawn Tractor

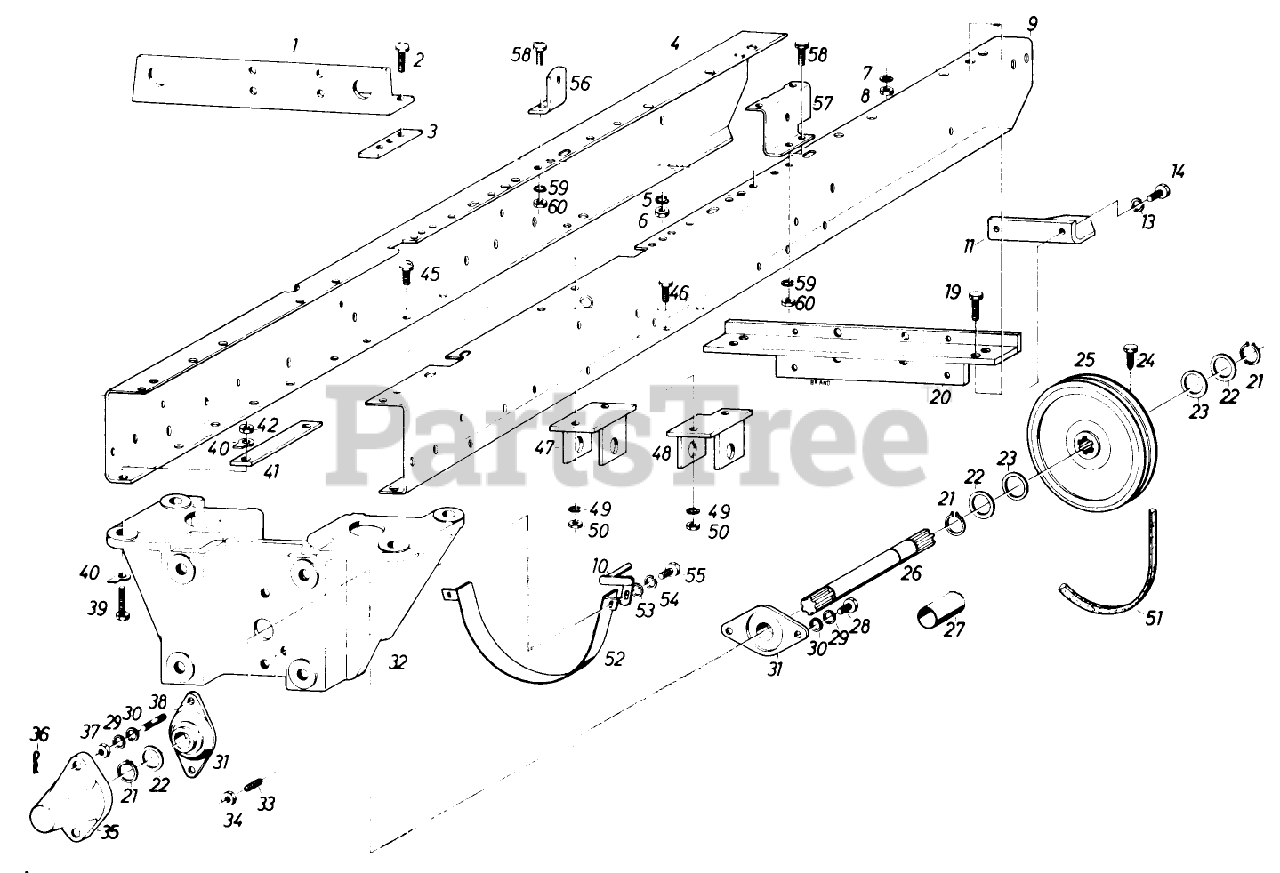

Frame (front And Rear P.t.o.) Parts Diagram

  • Title

1

Toro 250309

DISCONTINUED

$

$

Not available

2

Toro 250167

DISCONTINUED

$

$

Not available

3

Toro 250314

DISCONTINUED

$

$

Not available

4

Toro 250303

DISCONTINUED

$

$

Not available

5

Toro 250458

See Supercession: 920084
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 250374

DISCONTINUED

$

$

Not available

7

Toro 250459

DISCONTINUED

$

$

Not available

8

Toro 250375

DISCONTINUED

$

$

Not available

9

Toro 250304

DISCONTINUED

$

$

Not available

10

Toro 250279

DISCONTINUED

$

$

Not available

11

Toro 250342

DISCONTINUED

$

$

Not available

13

Toro 250459

DISCONTINUED

$

$

Not available

14

Toro 250168

DISCONTINUED

$

$

Not available

19

Toro 250170

DISCONTINUED

$

$

Not available

20

Toro 250325

DISCONTINUED

$

$

Not available

21

Toro 250496

DISCONTINUED

$

$

Not available

22

Toro 251514

DISCONTINUED

$

$

Not available

23

Toro 250400

SHIM

$

$

Not available

24

Toro 250007

DISCONTINUED

$

$

Not available

25

Toro 250264

DISCONTINUED

$

$

Not available

26

Toro 250306

DISCONTINUED

$

$

Not available

27

Toro 250237

DISCONTINUED

$

$

Not available

28

Toro 250166

DISCONTINUED

$

$

Not available

29

Toro 250458

See Supercession: 920084
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

30

Toro 250402

DISCONTINUED

$

$

Not available

31

Toro 250046

DISCONTINUED

$

$

Not available

32

Toro 250305

DISCONTINUED

$

$

Not available

33

Toro 250205

DISCONTINUED

$

$

Not available

34

Toro 250379

DISCONTINUED

$

$

Not available

35

Toro 250266

DISCONTINUED

$

$

Not available

36

Toro 250023

DISCONTINUED

$

$

Not available

37

Toro 250374

DISCONTINUED

$

$

Not available

38

Toro 250201

DISCONTINUED

$

$

Not available

39

Toro 250173

DISCONTINUED

$

$

Not available

40

Toro 250447

DISCONTINUED

$

$

Not available

41

Toro 250307

DISCONTINUED

$

$

Not available

42

Toro 250375

DISCONTINUED

$

$

Not available

45

Toro 250167

DISCONTINUED

$

$

Not available

46

Toro 250166

DISCONTINUED

$

$

Not available

47

Toro 250367

DISCONTINUED

$

$

Not available

48

Toro 250368

DISCONTINUED

$

$

Not available

49

Toro 250458

See Supercession: 920084
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

50

Toro 250374

DISCONTINUED

$

$

Not available

51

Toro 250105

DISCONTINUED

$

$

Not available

52

Toro 250273

DISCONTINUED

$

$

Not available

53

Toro 250408

DISCONTINUED

$

$

Not available

54

Toro 250457

DISCONTINUED

$

$

Not available

55

Toro 250158

DISCONTINUED

$

$

Not available

56

Toro 250280

DISCONTINUED

$

$

Not available

57

Toro 250208

DISCONTINUED

$

$

Not available

58

Toro 250158

DISCONTINUED

$

$

Not available

59

Toro 250457

DISCONTINUED

$

$

Not available

60

Toro 250373

DISCONTINUED

$

$

Not available
