61-20RG01 (D-250) - Toro Lawn Tractor (1977) GEAR BOX, WORM SHAFT AND COUNTER SHAFT Parts Diagram

Lawn Tractor

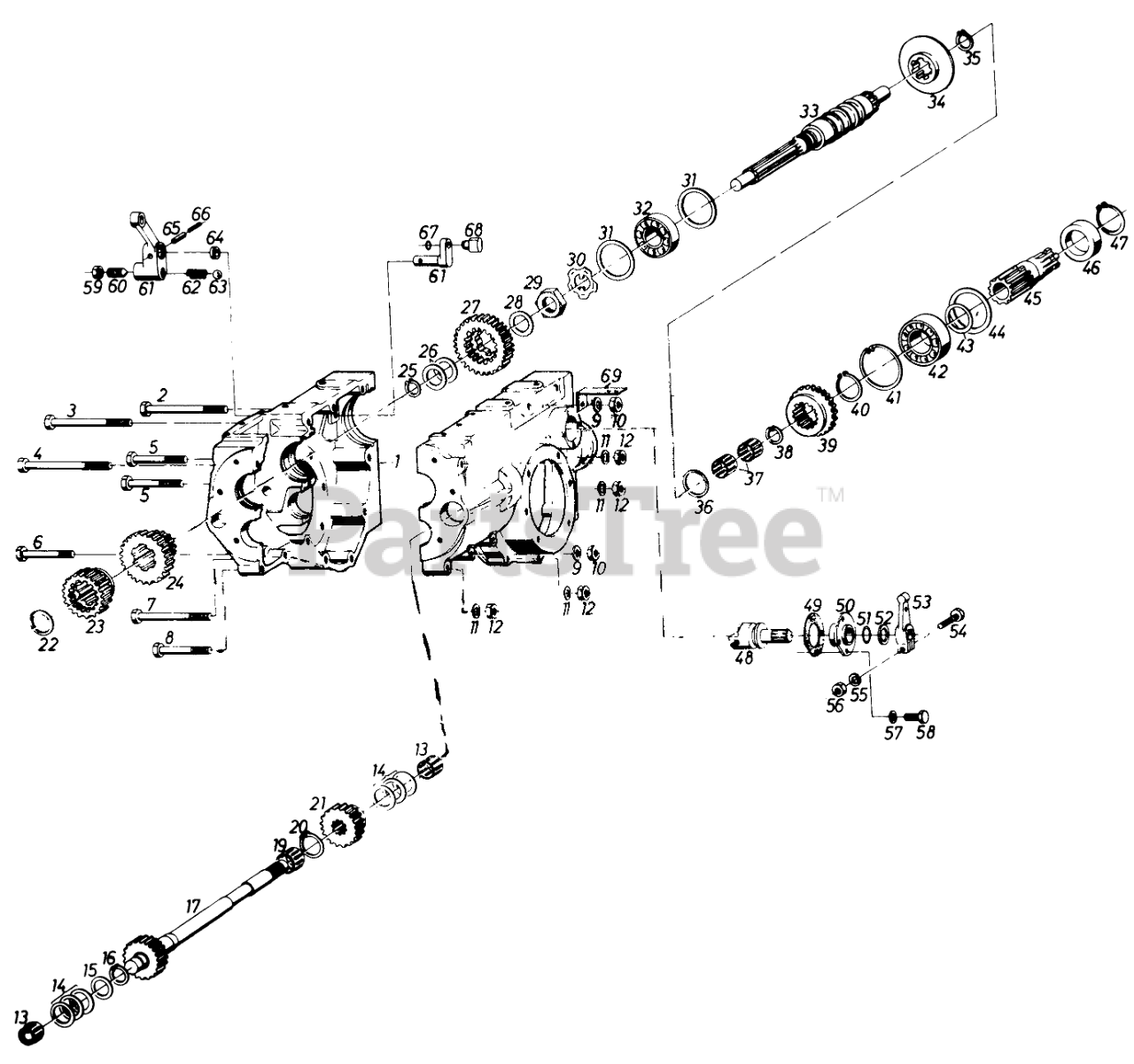

GEAR BOX, WORM SHAFT AND COUNTER SHAFT Parts Diagram

  • Title

1

Toro 251425

Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

2

Toro 251426

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

3

Toro 251427

Bolt

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

4

Toro 250599

Bolt

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

5

Toro 251429

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

6

Toro 251430

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

7

Toro 251431

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

8

Toro 251432

Screw

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

9

Toro 251433

Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

10

Toro 250374

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

11

Toro 250457

Lockwasher

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

12

Toro 250373

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

13

Toro 251434

Needle Bushing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

14

Toro 251435

Shim (18 X 25 X 1 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

14

Toro 250403

Shim (18 X 25 X 0.5)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

14

Toro 251437

Shim

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

15

Toro 251438

Shim

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

16

Toro 251439

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

17

Toro 251440

Counter Shaft

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

19

Toro 251441

Needle Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

20

Toro 251442

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

21

Toro 251443

Counter Pinion

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

22

Toro 251444

Shim (15 X 21 X 0.5 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

22

Toro 251445

Shim (15 X 21 X 0.2 DIN 988)

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

23

Toro 251446

Pinion 3. and 4. Speed

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

24

Toro 251447

Pinion 1. and 2. Speed

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

25

Toro 250496

CIRCLIP

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

26

Toro 250400

SHIM

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

27

Toro 251449

Pinion

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

28

Toro 251450

Shim

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

29

Toro 251451

Nut

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

30

Toro 251452

Lock Plate

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

31

Toro 251453

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

32

Toro 251454

Ball Bearing

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

33

Toro 251455

Worm Shaft Counter Clockwise

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

34

Toro 251456

Brake Washer

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

35

Toro 251227

Retaining Ring

Note: Note: These Parts Are for Reference Only. Not Available for 1976.

$

$

Not available

36

Toro 251457

Washer

$

$

Not available

37

Toro 251458

NEEDLE CAGE

$

$

Not available

38

Toro 251459

SEEGER V-RING

$

$

Not available

39

Toro 251460

Pinion

$

$

Not available

40

Toro 251227

Retaining Ring

$

$

Not available

41

Toro 251461

Retaining Ring

$

$

Not available

42

Toro 251462

Ball Bearing

$

$

Not available

43

Toro 251463

O-Ring

$

$

Not available

44

Toro 251464

Shim (63 X 80 X 0.2 DIN 988)

$

$

Not available

44

Toro 251465

Shim (63 X 80 X 0.5 DIN 988)

$

$

Not available

45

Toro 251466

P.T.O. Shaft

$

$

Not available

46

Toro 251467

Bushing

$

$

Not available

47

Toro 251468

Retaining Ring

$

$

Not available

48

Toro 251469

Brake Peg

$

$

Not available

49

Toro 251470

Gasket

$

$

Not available

50

Toro 251471

Cover

$

$

Not available

51

Toro 251472

O-Ring

$

$

Not available

52

Toro 251473

Spacer

$

$

Not available

53

Toro 251474

Brake Lever

$

$

Not available

54

Toro 251037

Screw

$

$

Not available

55

Toro 250455

Lock Washer

$

$

Not available

56

Toro 250371

Nut

$

$

Not available

57

Toro 250455

Lock Washer

$

$

Not available

58

Toro 250153

Bolt

$

$

Not available

59

Toro 250380

Nut

$

$

Not available

60

Toro 251475

Stud

$

$

Not available

61

Toro 251476

Lever Assy

$

$

Not available

62

Toro 251477

Spring

$

$

Not available

63

Toro 251478

Ball

$

$

Not available

64

Toro 251479

V-Ring

$

$

Not available

65

Toro 251480

Spring Pin

$

$

Not available

66

Toro 251481

Spring Pin

$

$

Not available

67

Toro 251482

Retaining Ring

$

$

Not available

68

Toro 251483

Bolt

$

$

Not available

69

Toro 251484

Tab

$

$

Not available
