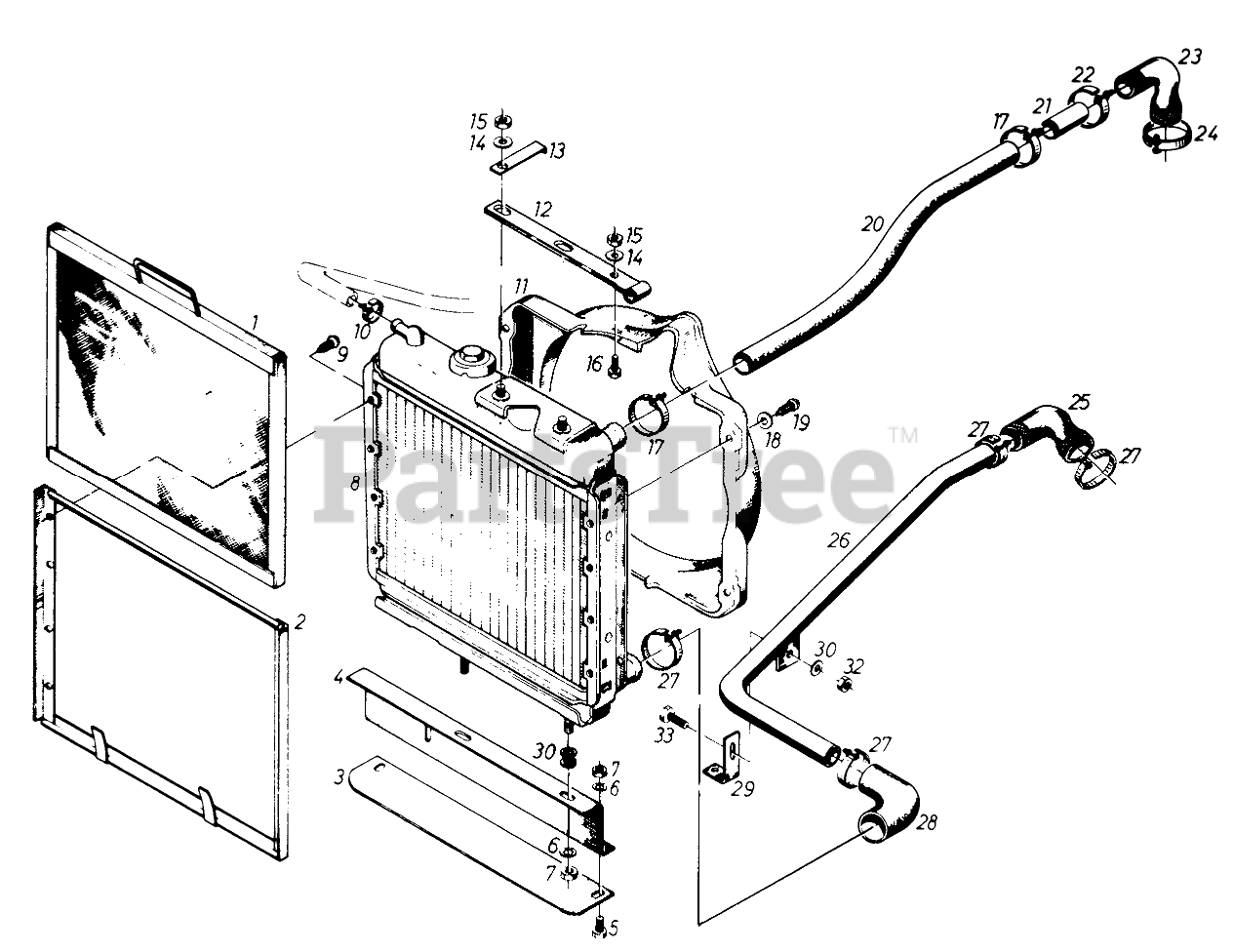

61-20RG01 (D-250) - Toro Lawn Tractor (1977) RADIATOR Parts Diagram

Lawn Tractor

RADIATOR Parts Diagram

  • Title

1

Toro 250242

Frame Cpl.

$

$

Not available

2

Toro 250241

Frame Support Assy

$

$

Not available

3

Toro 250302

Protection Plate

$

$

Not available

4

Toro 250218

Radiator Support

$

$

Not available

5

Toro 250158

Bolt

$

$

Not available

6

Toro 250457

Lockwasher

$

$

Not available

7

Toro 250373

Nut

$

$

Not available

8

Toro 250838

Radiator with Air Guide

$

$

Not available

9

Toro 250199

Screw

$

$

Not available

10

Toro 250835

Clamp

$

$

Not available

11

Toro 250742

AIR GUIDE

$

$

Not available

12

Toro 250235

Bracket

$

$

Not available

13

Toro 250192

Support

$

$

Not available

14

Toro 250433

Washer

$

$

Not available

15

Toro 250385

Nut

$

$

Not available

16

Toro 250159

Bolt

$

$

Not available

17

Toro 250101

Clamp

$

$

Not available

18

Toro 250819

Washer

$

$

Not available

19

Toro 250993

Screw

$

$

Not available

20

Toro 250226

Hose

$

$

Not available

21

Toro 250221

Tube

$

$

Not available

22

Toro 250839

Clamp

$

$

Not available

23

Toro 250743

Hose-lnlet

$

$

Not available

24

Toro 250834

Clamp

$

$

Not available

25

Toro 250019

Hose Outlet Elbow

$

$

Not available

26

Toro 250248

Tube Assy

$

$

Not available

27

Toro 250098

Clamp

$

$

Not available

28

Toro 250018

Rubber Elbow

$

$

Not available

29

Toro 250238

Bracket (S Hose)

$

$

Not available

30

Toro 250408

Washer

$

$

Not available

32

Toro 250385

Nut

$

$

Not available

33

Toro 250158

Bolt

$

$

Not available
