61-20RG01 (D-250) - Toro Lawn Tractor (1977) WATER PUMP Parts Diagram

Lawn Tractor

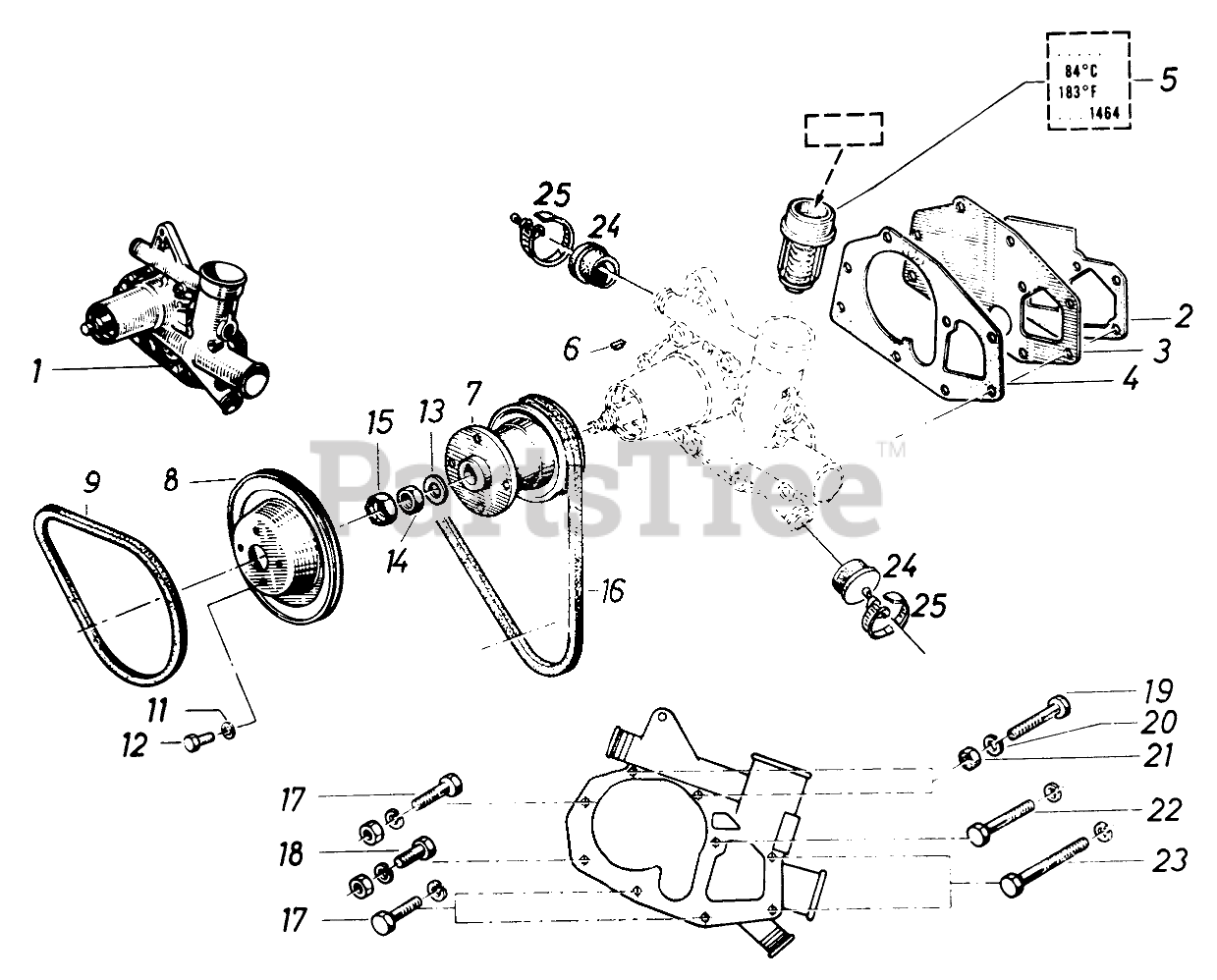

WATER PUMP Parts Diagram

  • Title

1

Toro 251248

Water Pump Cpl.

$

$

Not available

2

Toro 251010

Gasket

$

$

Not available

3

Toro 251246

Bracket

$

$

Not available

4

Toro 251011

Gasket

$

$

Not available

5

Toro 251240

Thermostat

$

$

Not available

6

Toro 251243

Key

$

$

Not available

7

Toro 251242

Pulley

$

$

Not available

8

Toro 251250

Pulley

$

$

Not available

9

Toro 251028

V-Belt (9.5 X 600)

$

$

Not available

11

Toro 251251

Washer

$

$

Not available

12

Toro 251252

Bolt

$

$

Not available

13

Toro 251239

Washer

$

$

Not available

14

Toro 251253

Nut

$

$

Not available

15

Toro 251241

Lock Nut

$

$

Not available

16

Toro 252286

V-Belt 9.5 X 675
(Superseded to 25-2370)

$

$

Not available

17

Toro 251361

Screw

$

$

Currently unavailable

18

Toro 251244

Bolt

$

$

Not available

19

Toro 250705

Screw

$

$

Not available

20

Toro 250457

Lockwasher

$

$

Not available

21

Toro 250867

Nut

$

$

Not available

22

Toro 251254

Bolt

$

$

Not available

23

Toro 251255

Bolt

$

$

Not available

24

Toro 251031

Plug, Water Pump

$

$

Not available

25

Toro 251257

Clamp

$

$

Not available
