61 - Husqvarna Chainsaw (Original) CRANKCASE Parts Diagram

Chainsaw

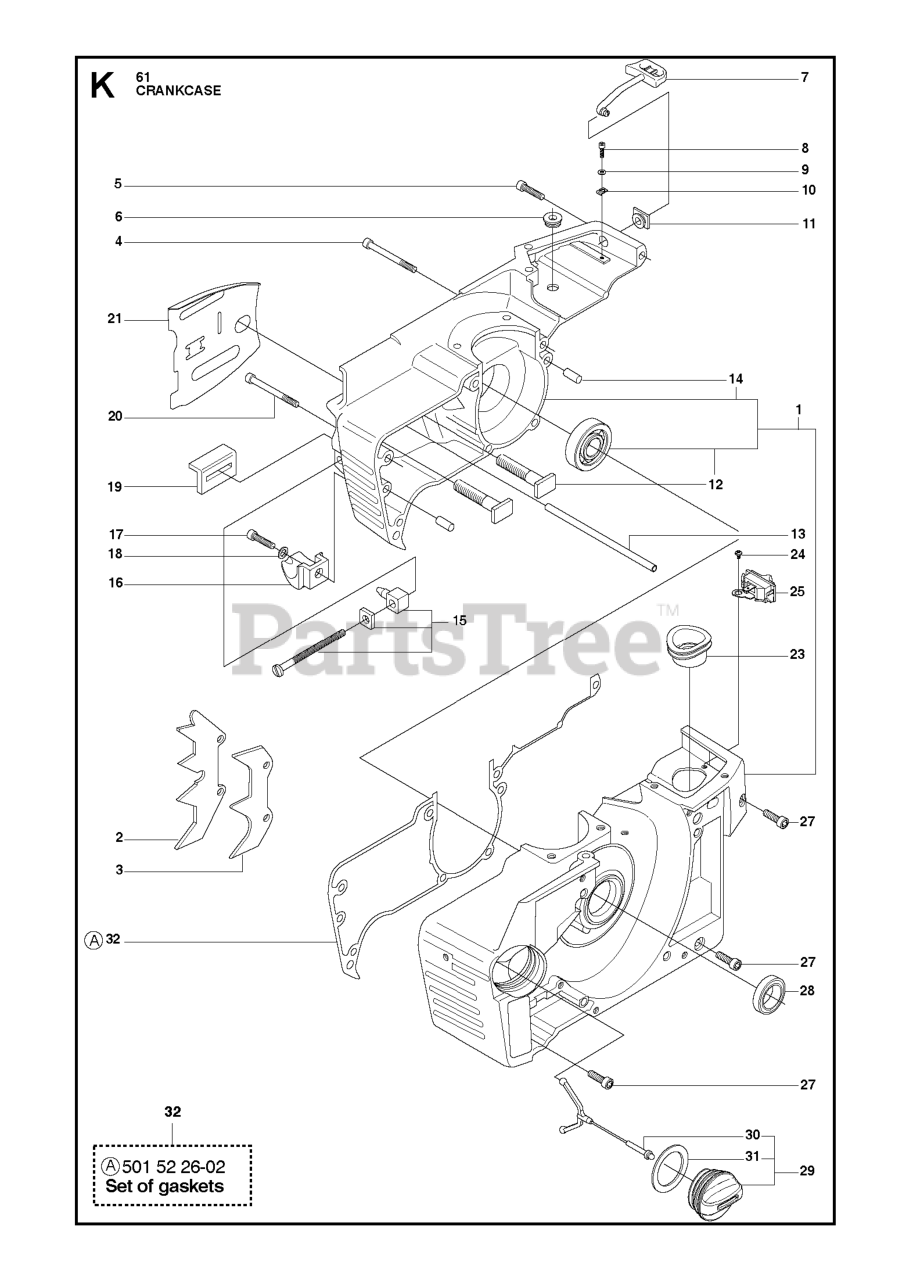

CRANKCASE Parts Diagram

  • Title

32

Husqvarna 501522602

GASKET SET NLA

Note: A = Set of Gaskets

$

$

Not available

13

Husqvarna 501839301

HOSE

Note: - up to s/n 1993319999.

$

$

Not available

19

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, Qty 7

0

14

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503668403

OIL TANK VENT

Note: From s/n 1993320001 -

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 11

0

25

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 20+

0

16

Husqvarna 503535801

CHAIN CATCHER

$8.99

$

In Stock, Qty 13

0

12

Husqvarna 501815701

BOLT

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, Qty 12

0

13

Husqvarna 721423250

SPIRAL PIN 3.5X18

Note: - up to s/n 1993319999.

$

$

Not available

1

Husqvarna 501779901

CRANKCASE CPL

$261.99

$

Usually ships in 3-10 days

0

30

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

2

Husqvarna 503590801

FELLING DOG

$26.99

$

In Stock, only 1 left!

0

17

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, Qty 12

0

23

Husqvarna 503445001

BELLOWS

$9.49

$

In Stock, Qty 12

0

29

Husqvarna 501626602

TANK CAP

$12.99

$

In Stock, only 4 left!

0

9

Husqvarna 503230001

WASHER 4.2X9

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501528101

FELLING DOG

$20.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503212806

SCREW

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503697601

GROMMET

$7.99

$

In Stock, Qty 8

0

15

Husqvarna 501537101

CHAIN TENSIONER

$24.99

$

In Stock, Qty 11

0

18

Husqvarna 503230042

WASHER

$6.49

$

In Stock, Qty 16

0

21

Husqvarna 501814801

PROTECTION PLATE

$8.99

$

In Stock, Qty 11

0

8

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, Qty 5

0

7

Husqvarna 501527902

CHOKE CONTROL

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 10

0

31

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, Qty 8

0

11

Husqvarna 501527801

BUSHING

$7.49

$

In Stock, only 2 left!

0

20

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 10

0

5

Husqvarna 525824902

SCREW ITXSCM

$6.49

$

In Stock, only 3 left!

0

10

Husqvarna 503446401

PLATE

$

$

Not available
