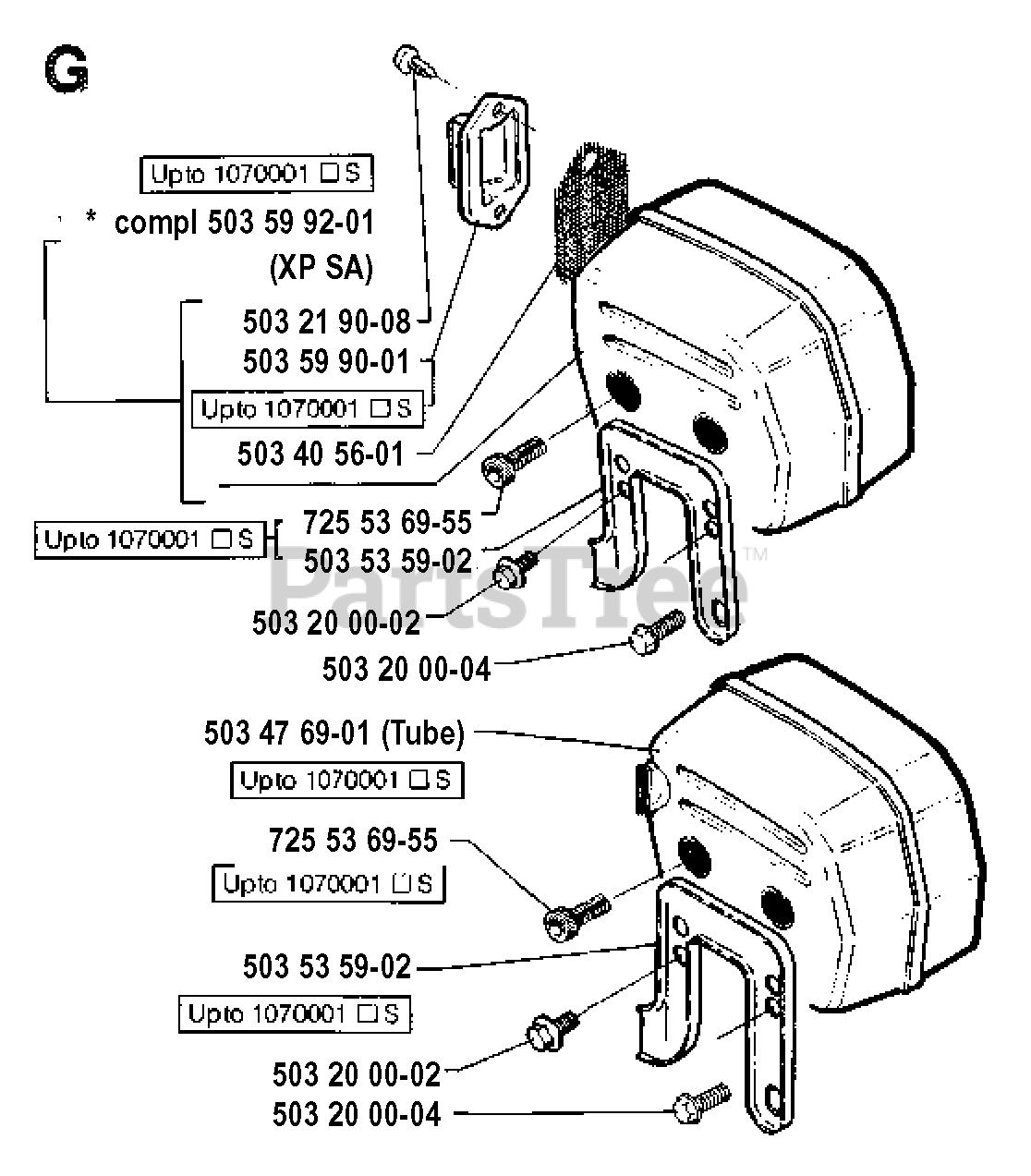

61 - Husqvarna Chainsaw (SN: 19910900001 - 19933600000) MUFFLER Parts Diagram

Chainsaw

MUFFLER Parts Diagram

  • Title

503 40 56-01

Husqvarna 503405601

SPARK ARRESTOR

$13.99

$

In Stock, only 4 left!

0

503 20 00-02

Husqvarna 503200002

SCREW M6SF 5X10
(Superseded to 503200710)

$6.49

$

In Stock, Qty 10

0

503 47 69-01

Husqvarna 503476901

MUFFLER
(Superseded to 503599205)

Note: TUBE

$96.99

$

In Stock, only 2 left!

0

503 59 92-01

Husqvarna 503599201

MUFFLER
(Superseded to 503599205)

Note: XP SA

$96.99

$

In Stock, only 2 left!

0

503 59 90-01

Husqvarna 503599001

EXHAUST OUTLET
(Superseded to 503599205)

$96.99

$

In Stock, only 2 left!

0

503 20 00-04

Husqvarna 503200004

SCREW M6SF 5X16

$3.49

$

Usually ships in 3-10 days

0

725 53 69-55

Husqvarna 725536955

SCREW
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0

503 21 90-08

Husqvarna 503219008

SCREW
(Superseded to 503205508)

$

$

Not available

503 53 59-02

Husqvarna 503535902

SUPPORT
(Superseded to 590476001)

$6.99

$

In Stock, Qty 7

0
