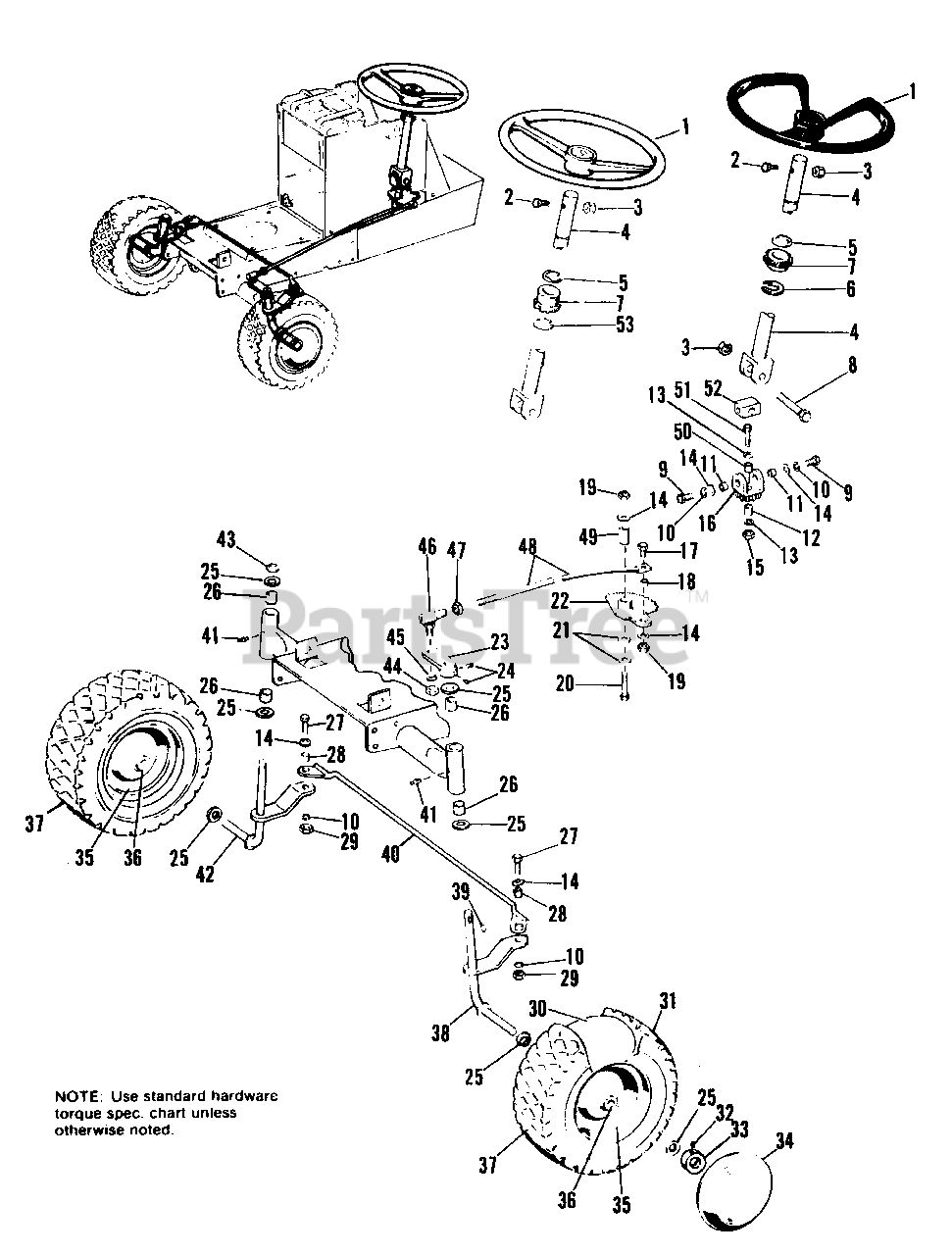

610 (1690064) - Allis-Chalmers Lawn Tractor, 10hp Front Wheels & Steering Group Parts Diagram

Lawn Tractor, 10hp

Front Wheels & Steering Group Parts Diagram

  • Title

1

Simplicity 2163113

WHEEL ASSY., Steering (990489, 1690019, 1690020 & 1690106 Only)

$

$

Not available

2

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

3

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

4

Simplicity 156029

SHAFT ASSY., Steering

$

$

Not available

5

Simplicity 158223

WASHER, Nylon (1690019, 1690020 & 1690106)

$

$

Not available

6

Simplicity 2157241

RING, Snap

$

$

Not available

7

Simplicity 2157077SM

BUSHING

$140.99

$

Usually ships in 2-12 days

0

8

Simplicity 2830570

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

9

Simplicity 2822126

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 4 on 1690019, 1690020, 1690106 Only)
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

11

Simplicity 2153081

SPACER

$

$

Not available

12

Simplicity 1729274SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

13

Simplicity 2156065

WASHER

$

$

Not available

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 2828731

LOCKNUT, Jam, 3/8-16

$

$

Not available

16

Simplicity 1650588

FORK & PINION ASSY.

$

$

Not available

17

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

18

Simplicity 2121349

SPACER

$

$

Not available

19

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16 (Qty. 1 on 990489, 990577, 990780 & 990904 Only)
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

21

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 9

0

22

Simplicity 156066

GEAR ASSY., Steering

$

$

Not available

23

Simplicity 156007

LEVER ASSY., Steering

$

$

Not available

24

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 12

0

25

Simplicity 2108181

WASHER

$

$

Not available

26

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

27

Simplicity 162053

SCREW, Special (1690019, 1690020, 1690106 0nly)

$

$

Not available

27

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 1 left!

0

28

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

29

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

30

Simplicity 156214

TUBE

$

$

Not available

31

Simplicity 1562-13

TIRE

$

$

Not available

32

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

33

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

35

Simplicity 2156180

WHEEL

$

$

Not available

36

Simplicity 2156316SM

BEARING

$11.99

$

In Stock, Qty 20+

0

37

Simplicity 156212

WHEEL & TIRE ASSY.

$

$

Not available

38

Simplicity 2165053SM

SPINDLE ASSY., L.H.

$81.99

$

Usually ships in 2-12 days

0

39

Simplicity 2830670SM

KEY, Hi-Pro

$2.49

$

Usually ships in 2-12 days

0

40

Simplicity 1651326

LINK ASSY., Drag (1690019, 1690020, 1690106 Only)

$

$

Not available

30

Simplicity 156069

LINK ASSY., Drag

$

$

Not available

41

Simplicity 2814687

FITTING, Grease

$

$

Not available

42

Simplicity 2165051SM

SPINDLE ASSY., R.H.

$

$

Not available

43

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 919423

NUT, Hex, Full, 1/2-20

$

$

Not available

45

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

46

Simplicity 2154301

JOINT, Ball

$

$

Not available

47

Simplicity 2819262

LOCKNUT, Jam, 1/2-20

$

$

Not available

48

Simplicity 1650589

ROD, Tie (1690019, 1690020, 1690106 Only)

$

$

Not available

48

Simplicity 156320

ROD, Tie

$

$

Not available

49

Simplicity 1729261SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

50

Simplicity 2156064SM

BUSHING

$22.99

$

Usually ships in 2-12 days

0

51

Simplicity 923470

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

52

Simplicity 154153

PIN, Universal Joint

$

$

Not available

53

Simplicity 2154264SM

RING, Retaining (990489, 990577, 990780 & 990904 Only)

$5.99

$

In Stock, only 2 left!

0
